~52~
4.5.4 Clamp
Station
Function
Holding the book block for the notching, gluing, and nipping processes of bookbinding.
Adjustment

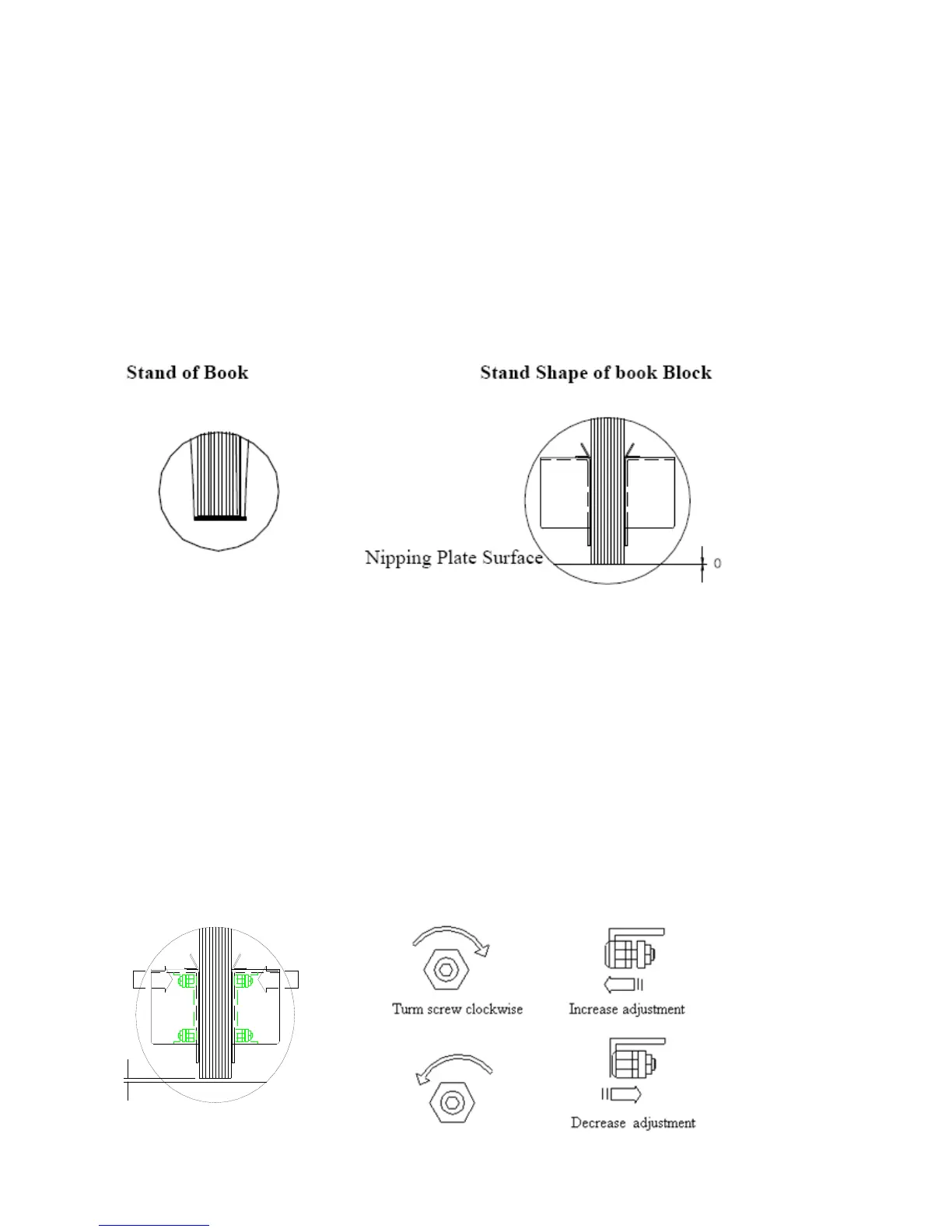

The acceptable spine of a book and the shape of book block after being clamped are shown below. If you
find different shapes such as “round”, “hollow” and “nail head” for one end or both ends, remove the clamp
covers, then adjust the screws on both clamps.
How to adjust
1.) Making book is a top priority (to see where is the machine need to be adjusted ):
The priority way of machine’s measurement is making books. We usually make 5mm, 10mm, 15mm, 20mm
as well as 30mmof thickness to inspect. however, 20mm is a standard for us to make sure the spine of the
book should be good. Because nail head usually happen in thicker books, and round spine usually happen in
thinner books.
2.) How to adjust the angle/pressure of the clamp plate
If you need to adjust the clamp plate, please refer to following points:
To Next Page
