Duramaxx 84881 - Handle Assembly; Assembling the Handle

ASSEMBLY
13
ASSEMBLING THE HANDLE
WARNING:
Never operate the mower without the proper safety devices in place
and working. Never operate the mower with damaged safety devices. Failure to heed
this warning can result in serious personal injury.
■ Remove any packing material which may be between the upper and lower handles for
shipping purposes.
■ Pull up and back on the upper handle to raise the handle into operating position. Make
certain the handles snap into place securely. (Fig. 3).

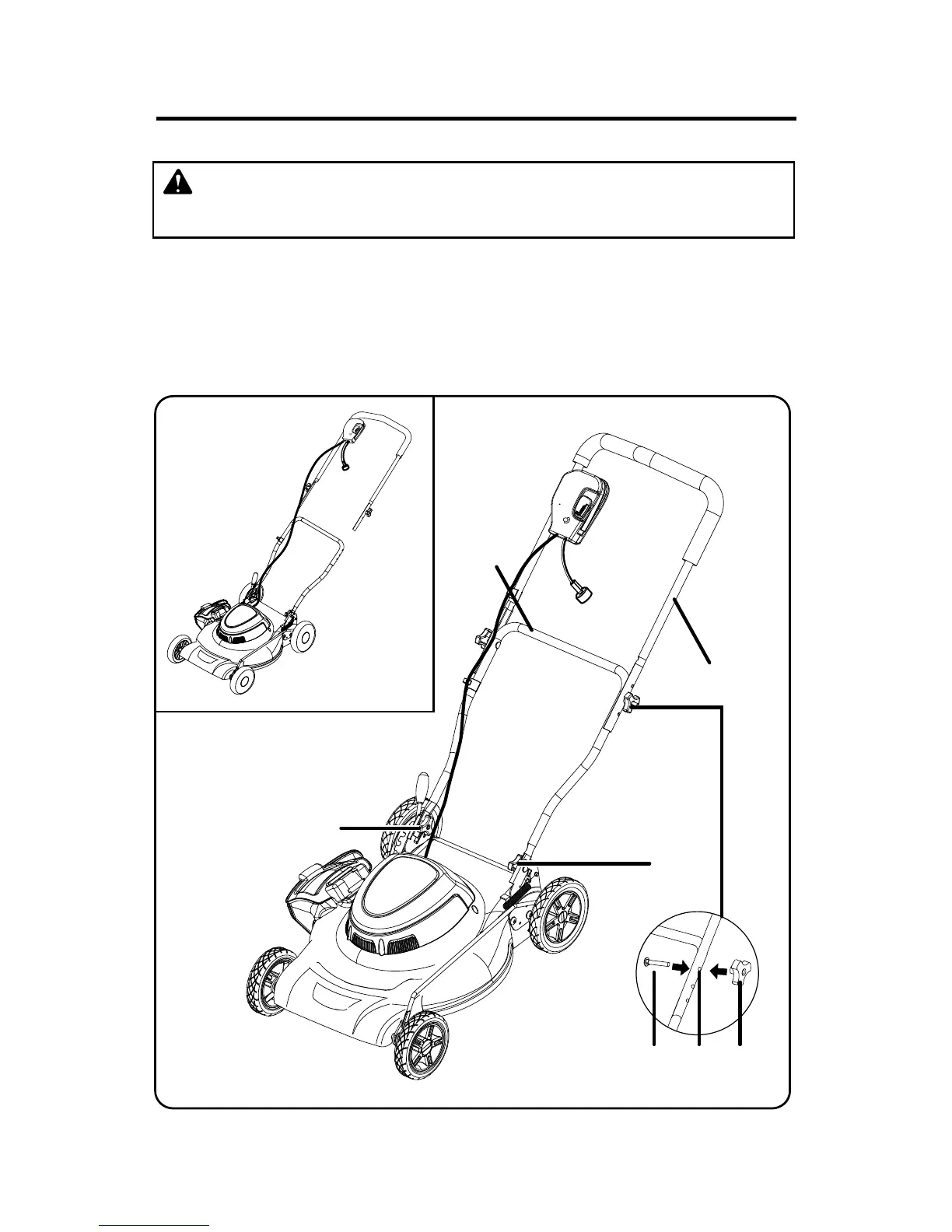

■ Align the holes (3) between the upper handle (1) and lower (2) handles. Insert the bolts
(4) and tighten them with the wing nuts (5) provided.
■ Secure the lower handle to the bracket with the knob (6) in each side (Fig. 4).
6
6
3
4
5
2
1
Fig. 3
Fig. 4
