Duramaxx 84881 User Manual

ASSEMBLY
14
INSTALLING SIDE DISCHARGE DEFLECTOR (Fig. 5)
■ Lift the side discharge door.
■ Align the grooves on the deflector with the pins on the underside of the door.
■ Lower the deflector until the hooks on the mower deck are secured in the openings in the
deflector.
■ Release the deflector and door.

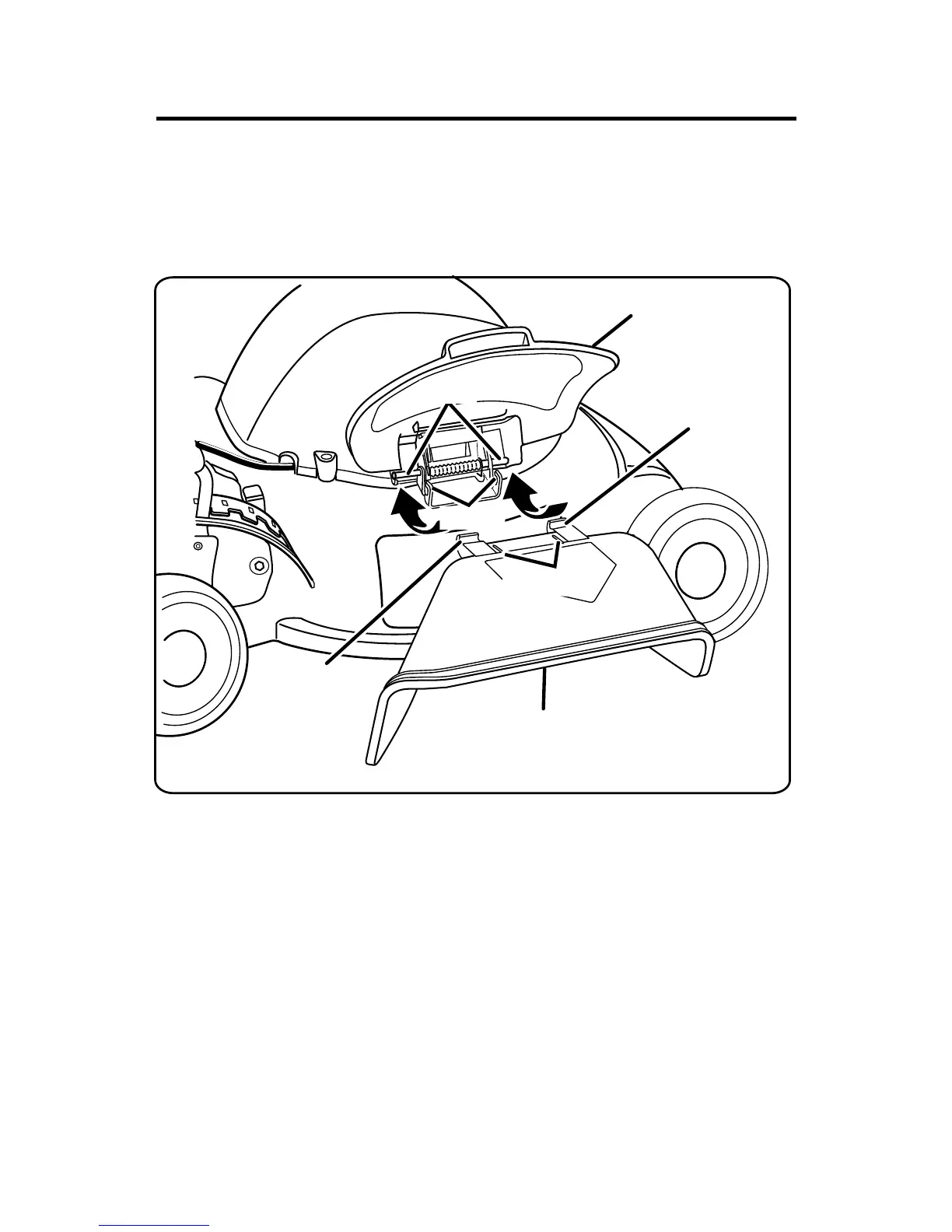

Fig. 5
SIDE DISCHARGE
DEFLECTOR
SIDE
DISCHARGE
DOOR
GROOVE
GROOVE
PINS
HOOKS
OPENINGS
