1. Determine the best location for your water filter, bearing in mind the location of your water supply lines, drain line and 120
volt AC electrical outlet. Subjecting the filter to freezing or temperatures above 43°C (110°F) will void the warranty.
2. Cut main supply line as required to fit hydrocharger in plumbing between well pump and pressure tank (hydrocharger
may be installed in a vertical or horizontal position). Allow a minimum of 6 inches straight run of pipe on each side of
hydrocharger, excluding fittings. Be certain direction of flow arrow on hydrocharger points toward pressure tank, and
pressure control switch is located on pressure tank side of the hydrocharger as in Fig. 1, 2 or 3, (rapid cycling of pump may
occur if pressure switch is located on well side. If check valves are used, they should be installed before the hydrocharger
– not between the hydrocharger and pressure tank).
NOTE: It is advisable to install the hydrocharger with the unions at both ends to facilitate removal and inspection. If
heat is applied near hydrocharger, remove rubber check valve to prevent damaging it. On badly scaled, older
pumping systems, it may be advantageous to install an optional “Y”-strainer ahead of hydrocharger to prevent
plugging hydrocharger nozzle with scale.
Installation of the Air Pump with Flow Control Switch (Mascontrol) as Power Source
1. Used when pressure switch and air pump are in alternate locations. Also used on constant pressure or variable speed
pump systems.
2. Mascontrol acts as a flow control detecting flow.
3. Connect the air pump to the Mascontrol receptacle. See Mascontrol manual for wiring diagram.
4. All government codes and regulations governing the installation of these devices must be observed. Check your local
electrical codes or contact a qualified electrician.

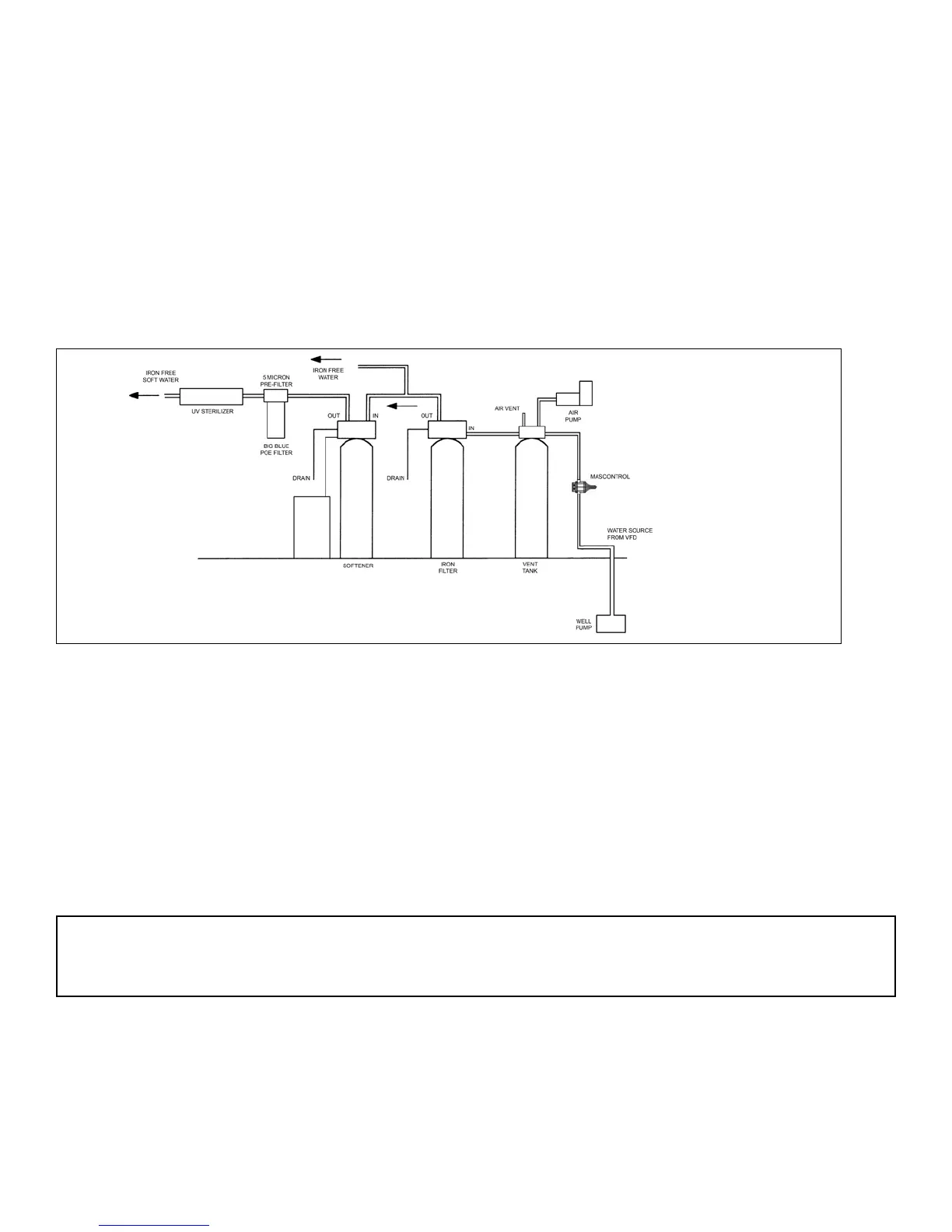

Figure 4
9
