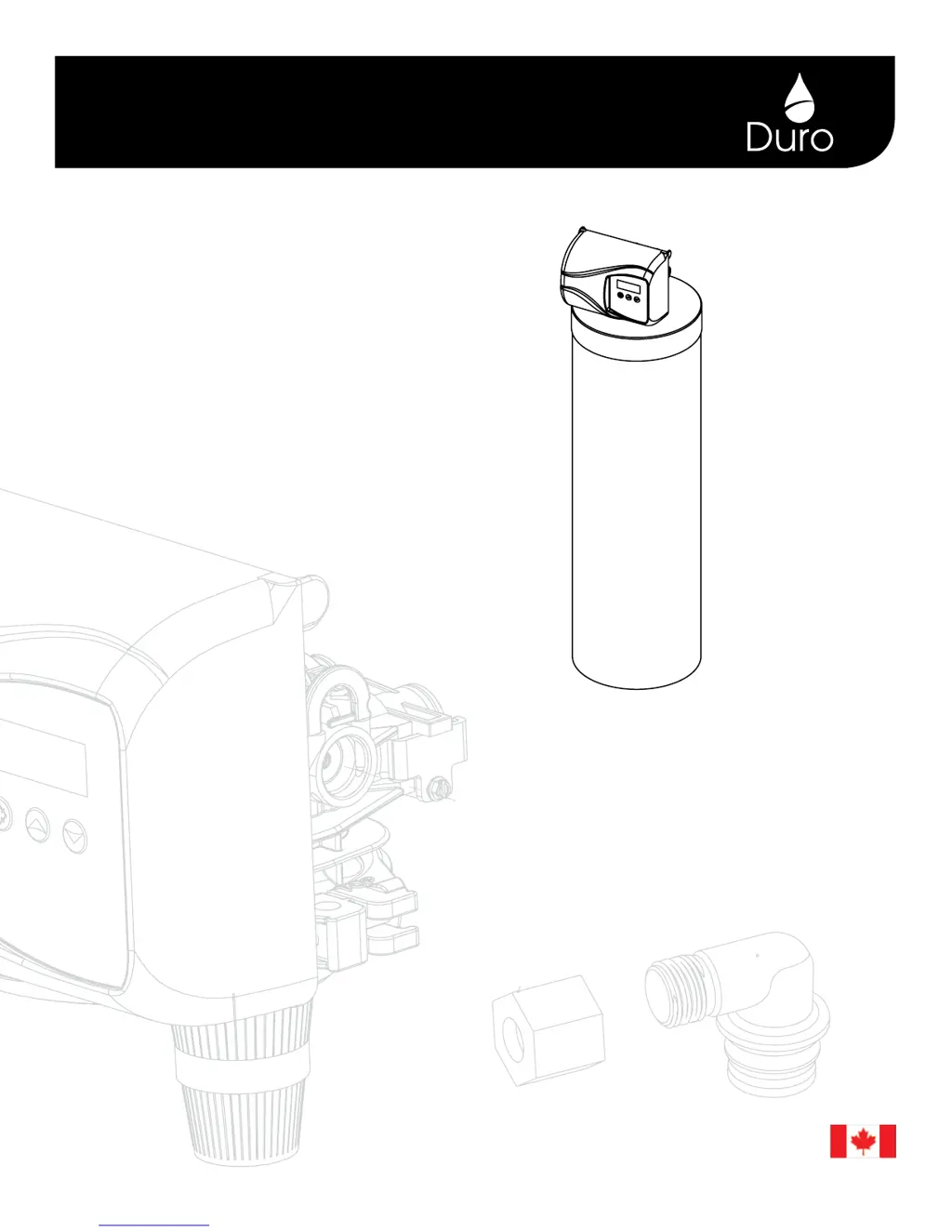

Duro 6200 SXT User Manual

42 pages

Questions and Answers:

P
Paul SmithAug 1, 2025
Why does my Duro Water Filtration System show [Err 2]?
- F
  falexanderAug 1, 2025
  The [Err 2] error on your Duro Water Filtration System indicates that more than 99 days have passed since the last regeneration. If you have selected the Day of the Week regeneration mode, this error appears if it has been more than 7 days since the last regeneration and all individual day settings (d1, d2, d3, d4, d5, d6, d7) are set to 0. To fix this, you must initiate a regeneration or set at least one individual day to 1 for the unit to recover, the display to clear, and the valve to function normally.
T
Tina RussellAug 8, 2025
What to do if my Duro Water Filtration System displays [Err 3]?
- J
  James CookAug 9, 2025
  If your Duro Water Filtration System displays [Err 3], it means there is a control board memory failure. You should perform a Master Reset. If the error returns after the reset, do not attempt to troubleshoot this problem any further.
D
Desiree BakerAug 16, 2025
What to do if Duro 6200 SXT Water Filtration Systems shows [Err 1]?
- J
  Jean FisherAug 16, 2025
  The [Err 1] error on your Duro Water Filtration System indicates that the drive motor is running continuously. When power is restored to the unit, the Err _ display code clears. If the condition causing the error has not been resolved the Err _ code reappears in the four digit display. Do not attempt to troubleshoot this problem any further.

Duro 6200 SXT Specifications

General

Type	Water Softener
Control Valve	Fleck 5600 SXT
Capacity	48, 000 grains
Flow Rate	12 GPM
Resin Tank Size	10" x 54"
Resin Type	8% Crosslink Resin
Valve Type	Digital Metered

Summary

Introduction and Safety

Read this Manual First

Emphasizes reading the manual thoroughly for safety and optimal use before installation or operation.

Safety Messages

Explains the use of NOTE, CAUTION, and WARNING labels for safety information within the manual.

Filter Operation and Components

Filter Components and Operation

Unit Familiarization and Installation Planning

Before Installation Guidelines

Provides guidelines for inspecting and handling the filter unit before commencing installation.

Equipment Location and Installation Planning

Locate Water Conditioning Equipment Correctly

Provides criteria for selecting the proper location for the water filter system.

Planning Your Installation

Key considerations and requirements for planning the installation process.

Specific Installation Procedures

Installation Preparations

Media Installation Steps

Installation Steps Overview

Clamp Ring Installation

Installation Steps Details

Bypass Valve and Plumbing Connections

Drain Line Connection

Water Conditioner Flow and Setup

Flow Diagrams: Service, Backwash, Rapid Rinse

Initial Backwash Procedure

Guides advancing the valve to Backwash and performing the initial 15-minute backwash.

Rapid Rinse and Return to Service

Instructs advancing to Rapid Rinse, then returning the valve to the service position.

Setting Time and Programming

Hydrocharger and Vent Installation

Hydrocharger Adjustment Steps

Provides step-by-step instructions for setting the hydrocharger's air draw duration.

Special Installations and System Cleanup

Split-Stream and Public Water Supply Inst.

System Check List for Diagnostics

Check for Proper Installation

Verifies correct installation of hydrocharger, piping, drain line, and pressure tank.

Check Water Quality Parameters

Check Pumping Rate

Check Hydrocharger Air Draw

Programming the Control Valve

User Programming Mode Steps

Diagnostic Programming Mode

Diagnostic Mode Options and Steps

Explains accessing and viewing diagnostic info like flow rate, hours in service, and volume used.

Controller Behavior

Power Failure Handling

Regeneration and Bypass Operations

Manual Water Bypass Operation

Operating Conditions and Maintenance

Routine Maintenance Instructions

Outlines essential routine maintenance steps for the iron filter system.

Freezing Warning

A critical warning against subjecting the unit to freezing temperatures.

Filter Care and Backwashing Instructions

Calculate Backwash Frequency

Provides methods to determine backwash frequency for normal and special applications.

Servicing the 6200 Valve

Before Servicing Procedures

Details steps to take before servicing the 6200 valve, including safety precautions.

Timer Replacement Procedure

Timer Replacement Steps

Provides step-by-step instructions for safely replacing the timer assembly on the control valve.

Component Replacement Procedures

Piston Cartridge Assembly Replacement

Details the procedure for replacing the piston cartridge assembly, including lubrication.

Meter Replacement and Service

Provides instructions for meter replacement and service, including lubrication and assembly.

Servicing Drain Line Flow Control

DLFC Servicing and Replacement

Explains how to service and replace the Drain Line Flow Control (DLFC) assembly.

Circuit Board Replacement and Post-Service

Circuit Board Replacement Steps

Provides instructions for detaching, disconnecting, and replacing the circuit board.

After Servicing Checklist

Troubleshooting Error Codes

Error Codes and Solutions

Lists error codes, their probable causes, and methods for recovery and resetting.

Troubleshooting Common Issues

Water Clarity and Stain Issues

Troubleshoots water turning red upon standing, possibly due to air draw or bypass.

Red Water and Backwash Issues

Addresses water being red when drawn, often due to overloaded filter beds or backwash issues.

Excessive Filter Pressure Loss

Troubleshoots excessive pressure loss, possibly caused by overloaded media or closed valves.

Milky or Bubbly Water Causes
