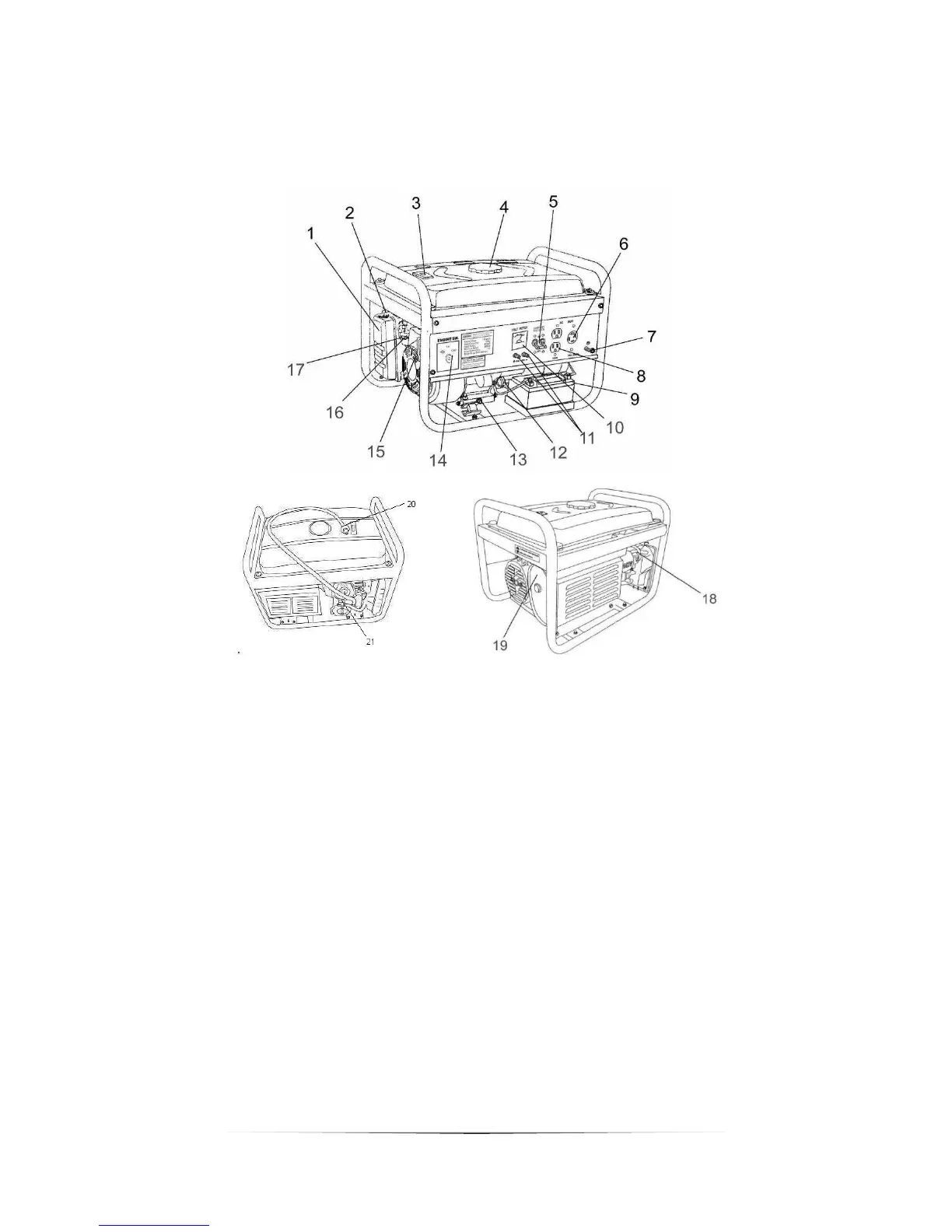

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and
controls of your generator.
.
1. Air Cleaner - a removable, cleanable, oiled, sponge-like element that cleans the air
going into the engine.
2. Choke Lever - Allows the airflow into the carburetor to be restricted to assist in
starting the engine.
3. Fuel Gauge - Indicates the amount of fuel in the gasoline tank.
4. Fuel Cap - Allows access to fill the gasoline tank.
5. Circuit Breaker - Resettable switch that protects the generator from electrical
overload.
6. 120/240v 4-Prong Receptacle - Use to connect electrical devices that run 120 or
240 Volt, 60Hz, single phase, AC current (NEMA L14-30).
7. Ground Terminal - Connect a ground wire here to properly ground the generator.
8. 120v 3-Prong Receptacle - Use to connect electrical devices that run 120 Volt, 60
Hz, single phase, AC current (NEMA 5-20).
9. Battery - 12V DC 7ah Battery that powers the Electric Start System.
10. Volt Meter - Provides reading of voltage output.
11. 12v DC Charging Posts – DC Output for charging batteries or running small DC
powered items.
12. Oil Filler Cap - Use to add or check the oil.
13. Oil Fill and Dipstick - Use to add or check the oil.
14. Engine Switch – 3 Position Switch to “Start”, “Run”, or turn “Off” the generator.
15. Recoil Start – Easy Pull Recoil Start to start the engine without the electric start.
