9000-606-89/30 1711V001 19
Installation
8 Installation
The actual connection can vary depending on the chosen installation option� The connection
shown is only an example�
8.1 Installation and routeing of hoses and pipes
i Establish connections between the pipe system and the unit using the flexible hoses supplied� This
will prevent vibrations from being transmitted to the pipe system�
i The connection between the pipe line and unit suction connection should be kept as short as pos-
sible and straight, without bends�
i Waste water connections must be implemented in accordance with applicable local and national
regulations�

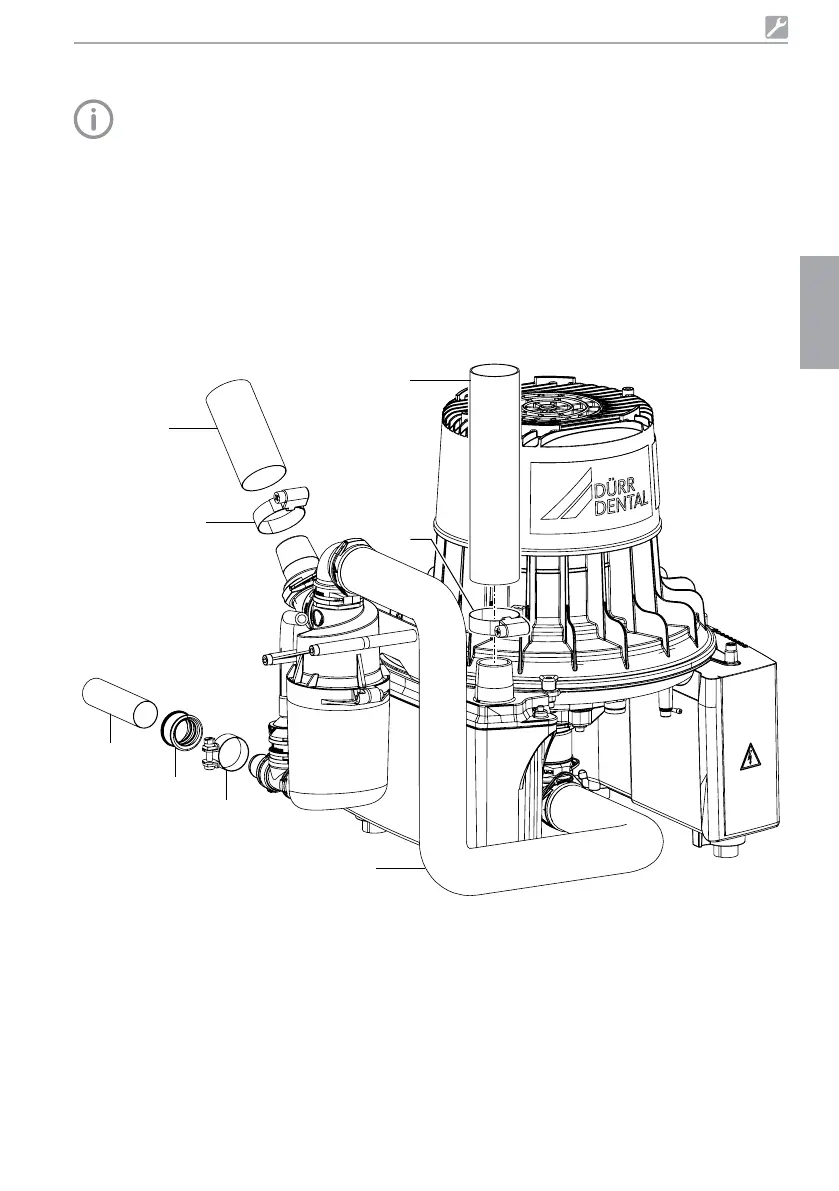

V 300 S
2
2
3
1
1
4
5
6
1 Hose clamp 25-40 mm
2 Suction hose ∅ 30 mm (internal)
3 Waste air pipe (aluminium)∅ 30 mm inside
4 Hose clip ∅ 28 mm
5 Hose sleeve
6 Waste water hose ∅ 20 mm (internal)
EN
