Product description
Performance diagram KV15
0
10
20
30
40
50
60
70
80
0 100 200 300 400 500 600 700 800 900 1000
A-062E2
B-061E /
D-061E
A-062E1
A-038E /
D-040E

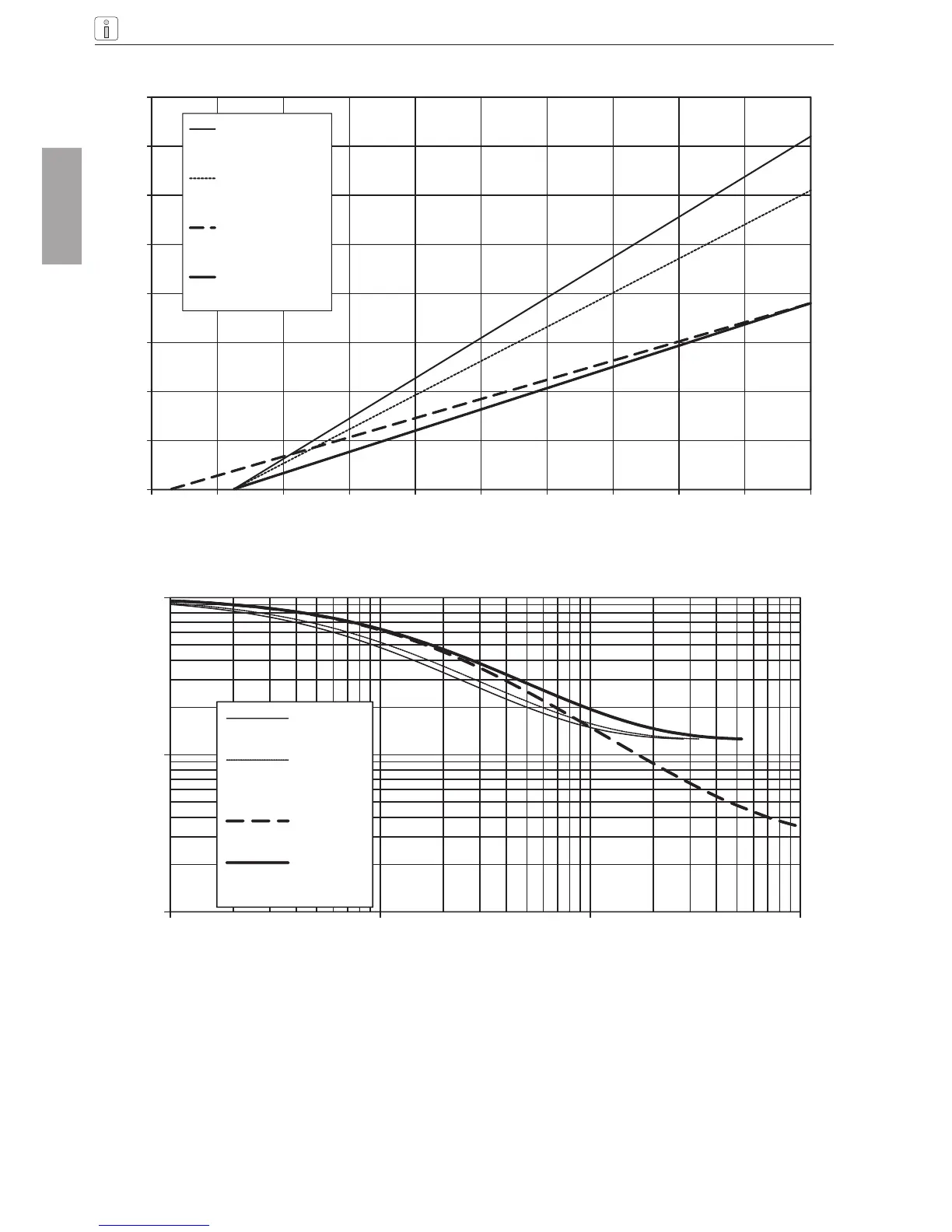

Suction capacity S
eff
[Nl/min]
Pressure pabs [mbar]
Figure 21: Suction capacity based on atmospheric pressure at 50 Hz (60 Hz approx. + 18%)
10
100
1000
1 10 100 1000
A-062E2
B-061E /
D-061E
A-062E1
A-038E /
D-040E
Pressure p
abs
[mbar]
Pump-down time [s]
Figure 22: Pump down time for a 10-l volume at 50 Hz
