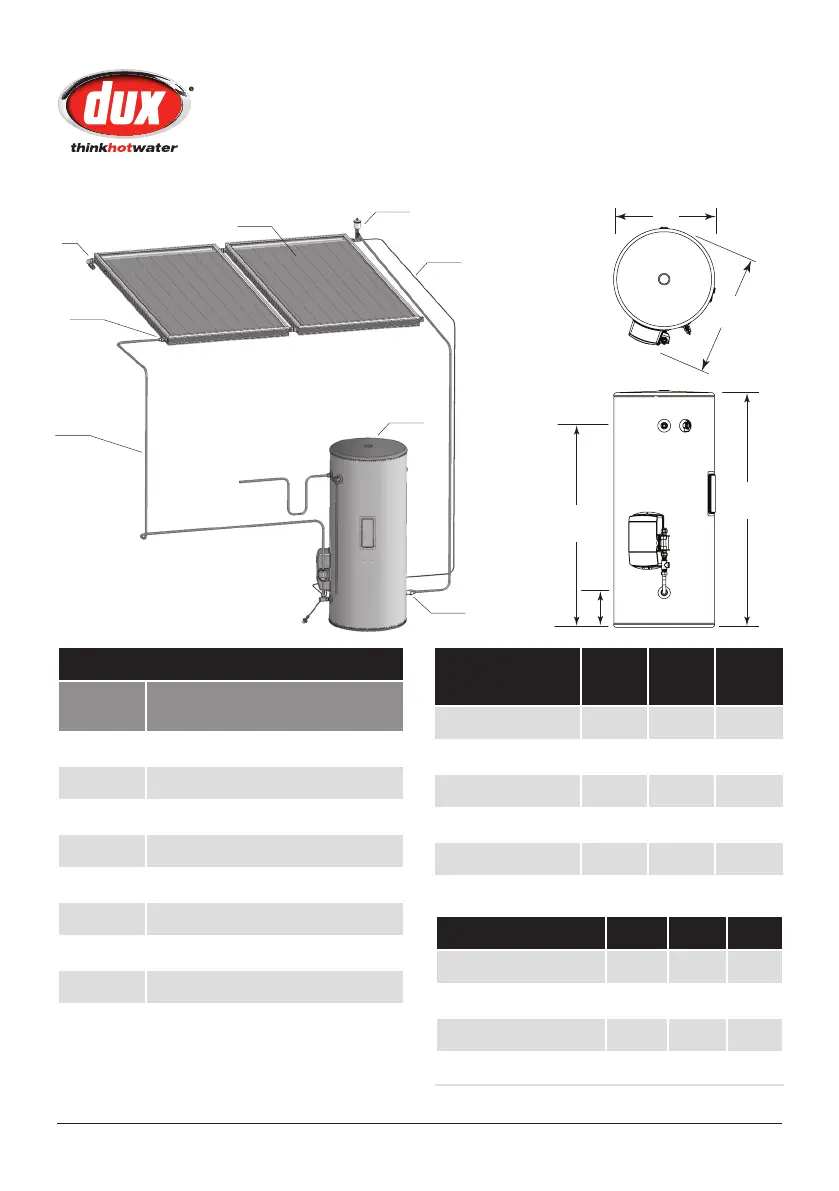

Dux 3F136S - Specifications; Water Heater System Components; Dimensions; Specifications Table

Owner’s Manual – Electric Boosted Solar
7
Part No: H3100
Version: 10346D
Specifications
1
8
4
6
2
7
3
5
B
A
C
D
E
Specifications 250L 315L 400L
Storage Capacity (L) 259 324 416
Hot Water Delivery (L) 250 315 400
Net Weight Empty (kg) 90 105 120
Relief Valve Pressure (kPa) 1000 1000 1000
Dimensions
(mm)
250L 315L 400L
Tank Height (A) 1444 1754 1703
Tank Diameter (B) 617 617 705
Tank Width (C) 718 718 806
Outlet (D) 1231 1541 1466
Inlet (E) 215 215 240
System Components
Item
Number
Description
1 Solar Electric Tank Assy
2 Solar Collector Panel
3 Solar Collector Panel Fitting Kit
4 Solar Collector Sensor Lead
5 Tank – Collector Pipework
6 Air Bleed Valve
7 Ant-Frost Valve
8 Non Return Valve
