Cod. 710.0134.20.00 Rev06B – 04.2016 34

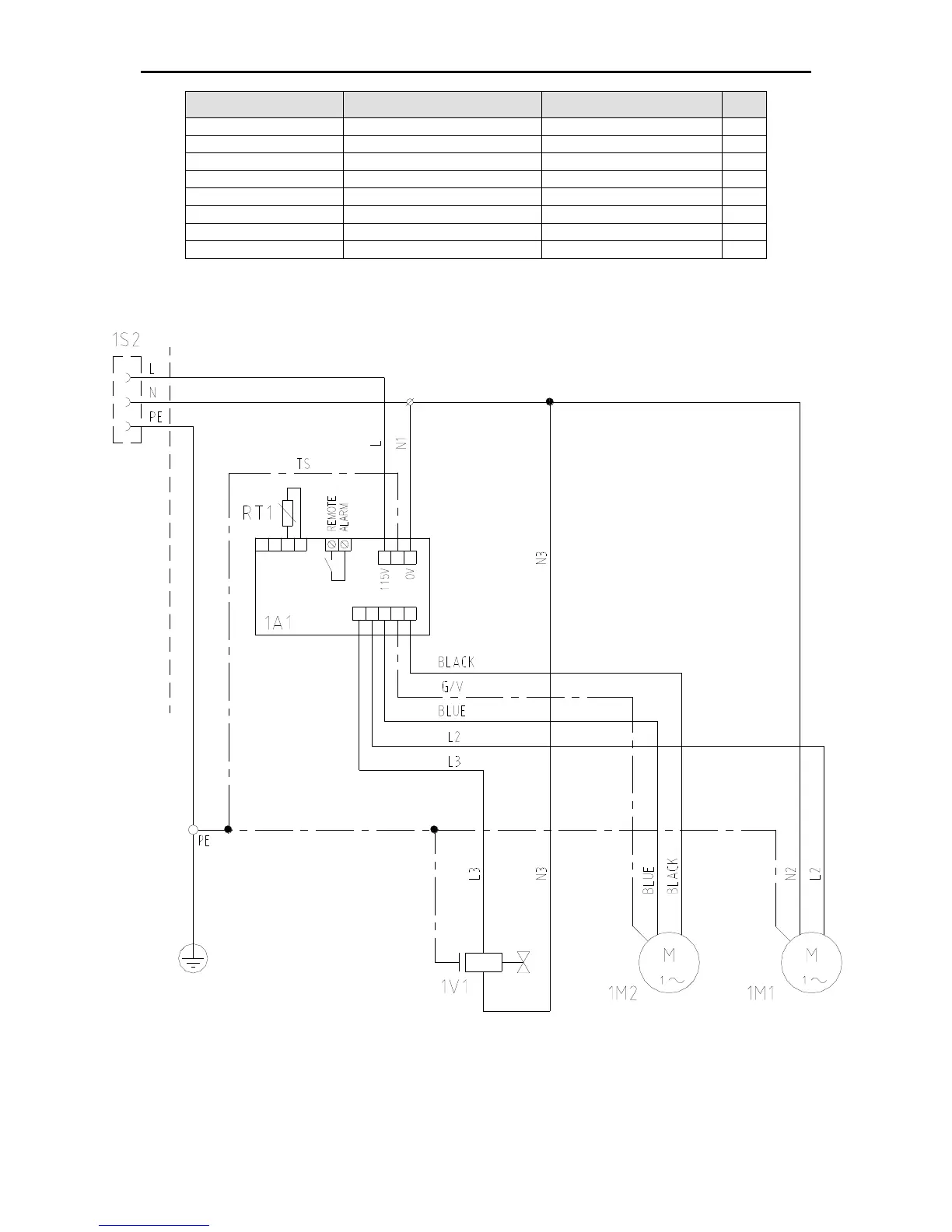

WIRING DIAGRAM - ESQUEMA ELECTRICO - SCHEMA ÉLECTRIQUE
- GB - DESCRIPTION
- E - DESCRIPCIÓN
- F - DESCRIPTION
Pos.
Compressor
Compresor
Compresseur
1M1
Ventilator Motor
Ventilador
Ventilateur
1M2
Solenoid drain Valve
Electro valvula de descarga
Purge de condensants
1V1
Electronic Controller
Controlador electrónico
Contrôleur électronique
1A1
Dew point PTC probe
Sonda PTC punto de rocio
PTC sonde pt de rosée
RT1
American plug
Prise américaine
Enchufe americano
1P1
Ventilator fuse
Fusible del ventilador
Fusible de ventilateur
F1
Compressor box
Box compresor
Demarrage compresseur
R
714.0104.15.00 – Rev. 00
Essiccatori – Dryers – Trockner – Secheur – Secadores
Mod. HTD 18 (115V/1Ph/60Hz)
