Edge-triggered exposure (single frame capture) mode
Edge-triggered exposure mode operates almost identically to the first frame of the non-overlapped
continuous mode except that instead of continuing to run, the camera returns to the armed state, waiting
for another trigger. Exposure is controlled by software.

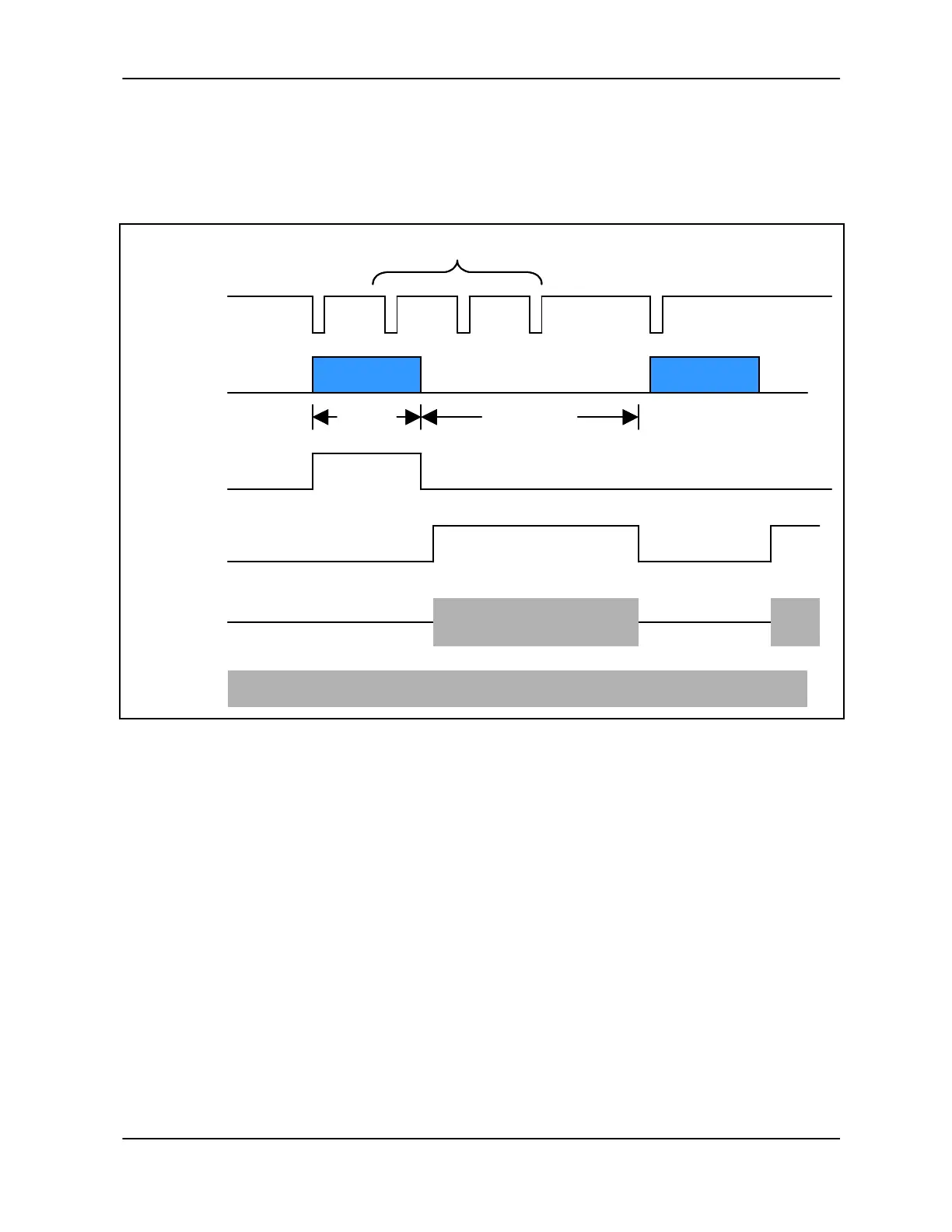

Edge-triggered exposure mode. Strobe pulse occurs only if enabled.
readout
exposure
software
command
or
external trigger
(TTL_RESET)
Pixel clock runs continuously
ENF
(output)
exposure
image data
(output)
strobe
(output)
t
exp
T
readout
trigger ignored during exposure and readout
exposure
readout
exposure
software
command
or
external trigger
(TTL_RESET)
Pixel clock runs continuously
ENF
(output)
exposure
image data
(output)
strobe
(output)
t
exp
T
readout
trigger ignored during exposure and readout
exposure
