Receiver Mounting

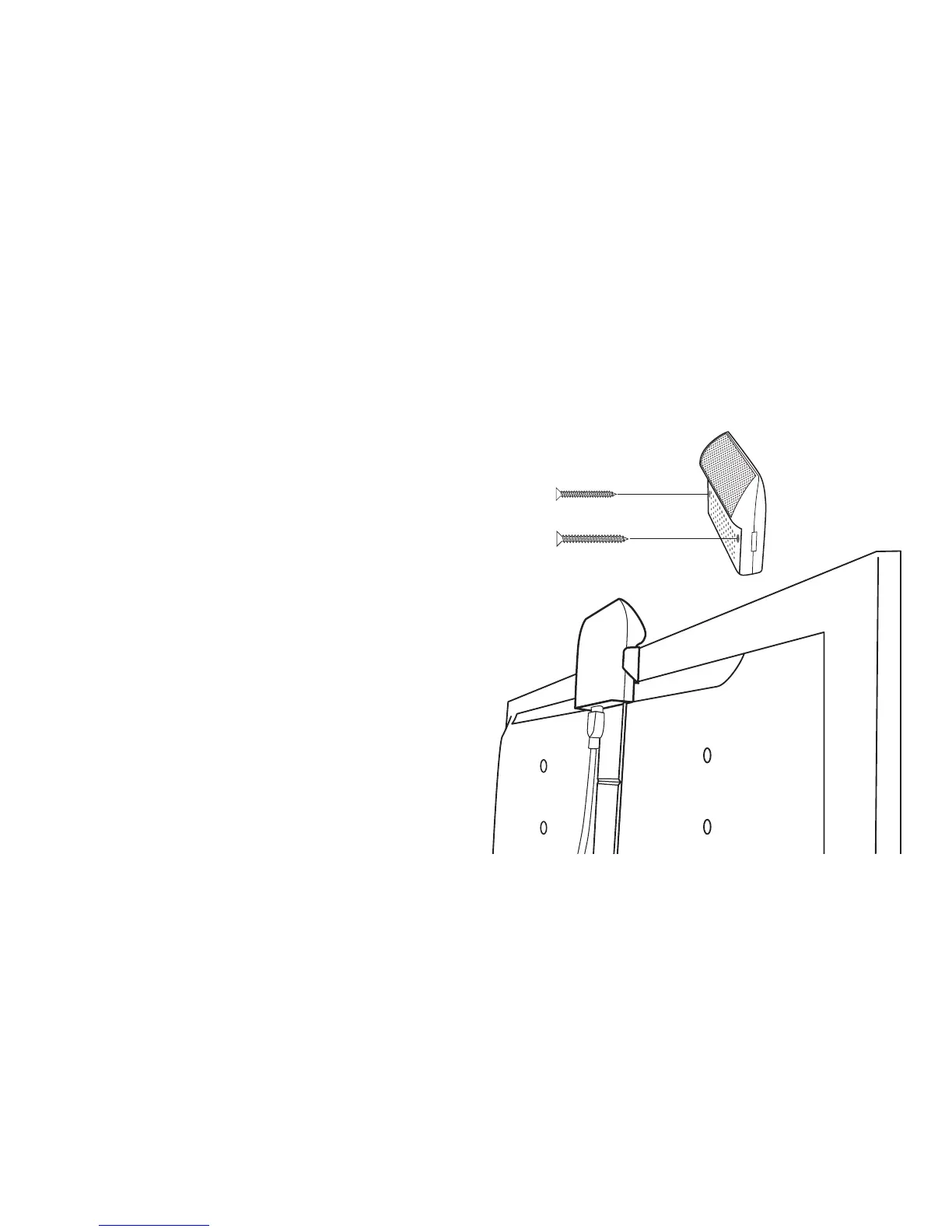

Wall mount - use included drywall screws and mount the receiver directly to drywall
right through the holes in the case.
Ceiling mount - break off both tabs from bracket and using drywall screws mount bracket
to ceiling. Then clip receiver into bracket with mesh facing down and toward transmitter.
Back of TV mount - If your TV is on a hinged arm, use the included Wall/TV
mounting bracket and the adhesive pads to position the receiver as shown. Break off
extra bracket tab for smaller TVs. Using 2 pads is recommended.
Transmitter Mounting
Top of stack - break off both tabs from bracket and using adhesive pads, stick bracket
to a flat surface (caution that removing adhesive could damage surface). Then clip
transmitter into bracket face up. (DVDO logo rightside up)
For best performance, transmitter and receiver mesh faces should point at each other
or at a nearby surface for a bounced signal. (ceiling, wall)
