8
QUICKGUIDE
2.2 Set level control:
For the operation of the gravity system a constant water level in the pond is necessary.
A tolerance of up to 20 mm below maximum water level is allowed.
Should the maximum water level in the pond exceed this, the water excess water will be disposed of via the waste water drain,
until the maximum water level has been reached
For more detailed information you are referred to the complete manual.
This can be found at www.dvs-filtertechniek.com
GRAVITY

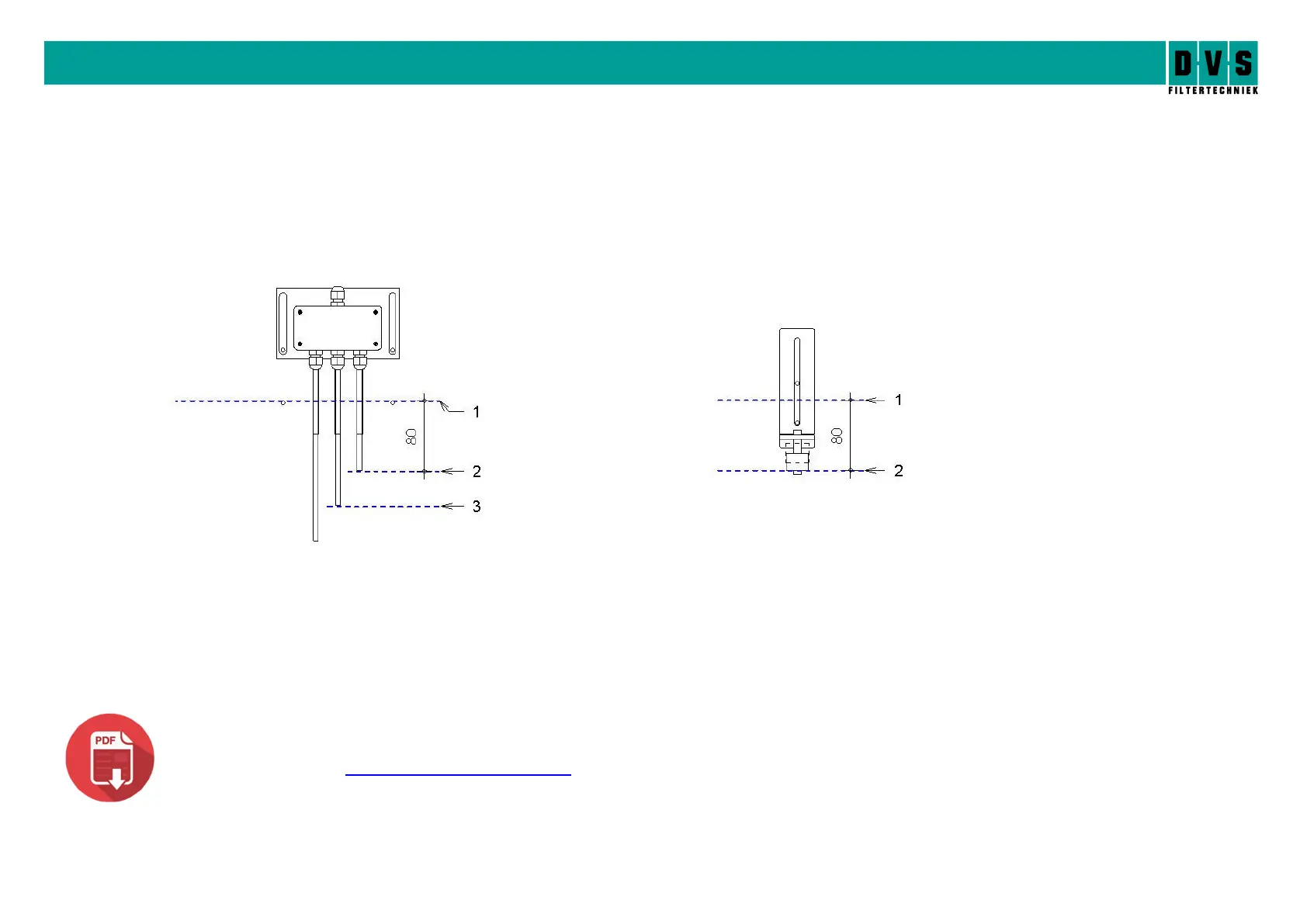

Pic. 2.3 Sensor
1. Water level with running pump after rinse
(short pen 8 cm in water)
2. Start rinsing
3. Pondpump switches off
Pic. 2.4 Float switch (ECO models / models With PLC controller)
1. Water level with running pump after rinse
2. Start rinsing
