9
QUICKGUIDE
3 B. Pump fed system
3.1 Placing filter system
Determine the maximum water level of the pond
Align the base plate horizontally (the filter should be completely level).
The drumfilter must be placed 30cm higher than the biochamber.
(the distance from top of the drumfilter, to the top of the biochamber is 30cm)

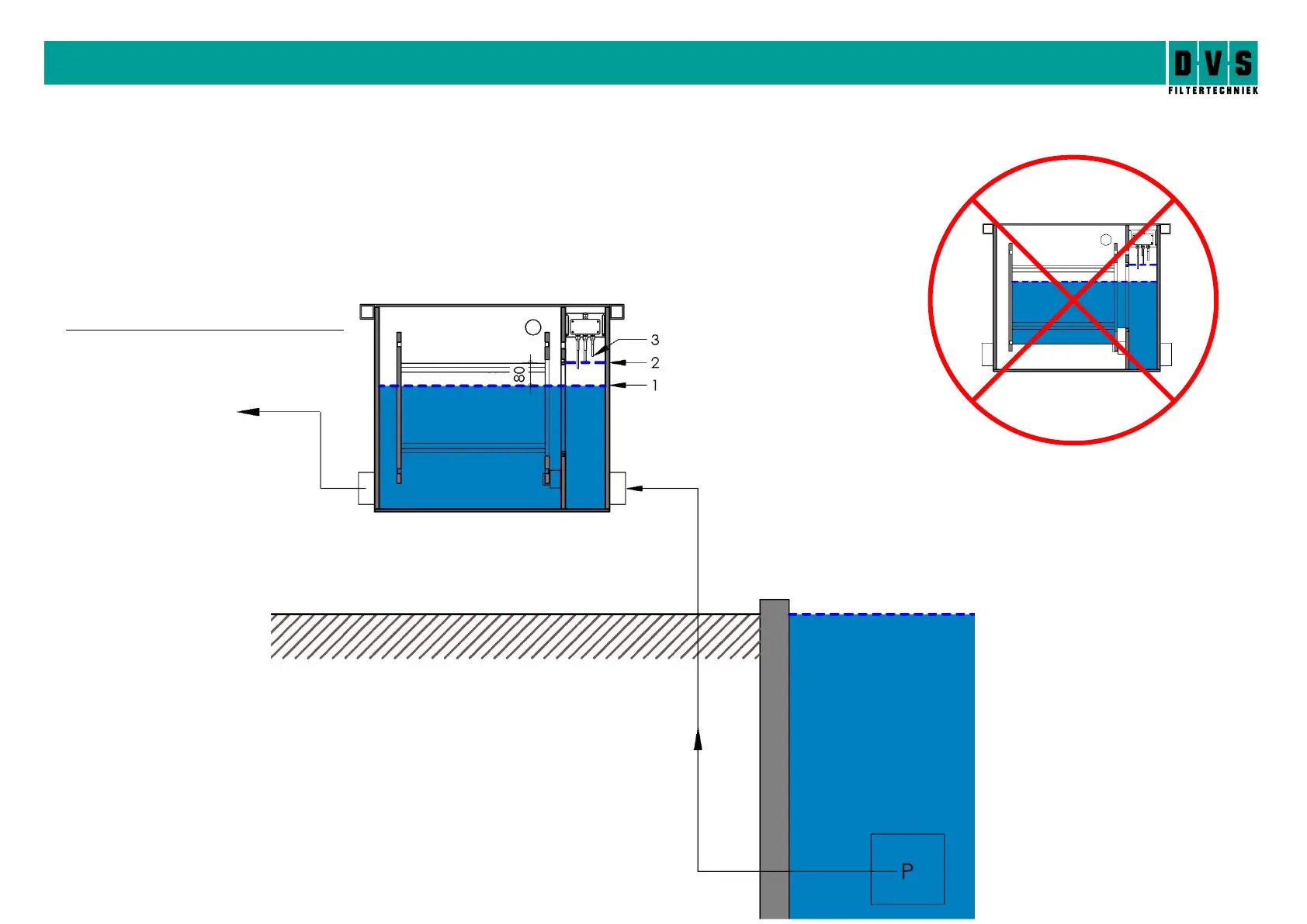

Schematic setup of the drum filter
Pic. 3.1
1. Water level with running pump after rinse
2. Start rinsing
3. Pond pump switches off
PUMP FED
