SPECIFICATIONS
Pressure Ranges: 10 in w.c. or 20 in w.c.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Pressure Limit: 10 psi (68.95 kPa).
Pressure Limit (differential): 10 psi (68.95 kPa).
Accuracy: ±1.5% F.S. @ 73°F (22.8°C).
Output Signal: 4-20 mA.
Alarm Contacts: 1.5A inductive load, 3A resistive load @ 30 VAC or 40
VDC.
Process Connections: Two barbed connections for use with 1/8˝ (3.18
mm) or 3/16˝ (4.76 mm) I.D. tubing.
Weight: 5.5 oz (155.9 g).
1-11/16
[42.86]
1/2
[12.70]
1-13/16
[46.04]
1
[25.40]
2-7/16
[61.91]
The Dwyer
®
DCP100A or DCP200A pressure modules are designed
exclusively for use with the DCT1000DC Dust Collector Timer Controller
boards for on-demand cleaning requirements. These series of modules
are available in 10˝ w.c. [2.49 kPa] or 20˝ w.c. [4.98 kPa] ranges, which
allow for differential process pressure measurement as indicated on the
display of the master controller. An isolated 4-20 mA readout channel is
provided for remote pressure display. The 4-20 mA output may be wired
either for use with an external power supply and indicator or using the
isolated on-board 24 volt power supply to power the loop.
SETUP
UP
DOWN
SELECT
MANUAL
OVERRIDE
PROCESS (IN H2O)
TIME OFF (SEC)
LAST OUTPUT
TIME ON (M SEC)
HIGH LIMIT
LOW LIMIT
HIGH ALARM
LOW ALARM
CYCLE DELAY
(MIN)
DOWN TIME CYCLES
AUTO ALARM RESET
(MIN)
(SEC)
ALARM
RESET
STATUS
RUN
8-1/4
[209.55]
8-3/4
[222.25]
6-1/4
[158.75]
6-7/8
[174.62]
1/16
[1.59]
2-3/4
[69.85]

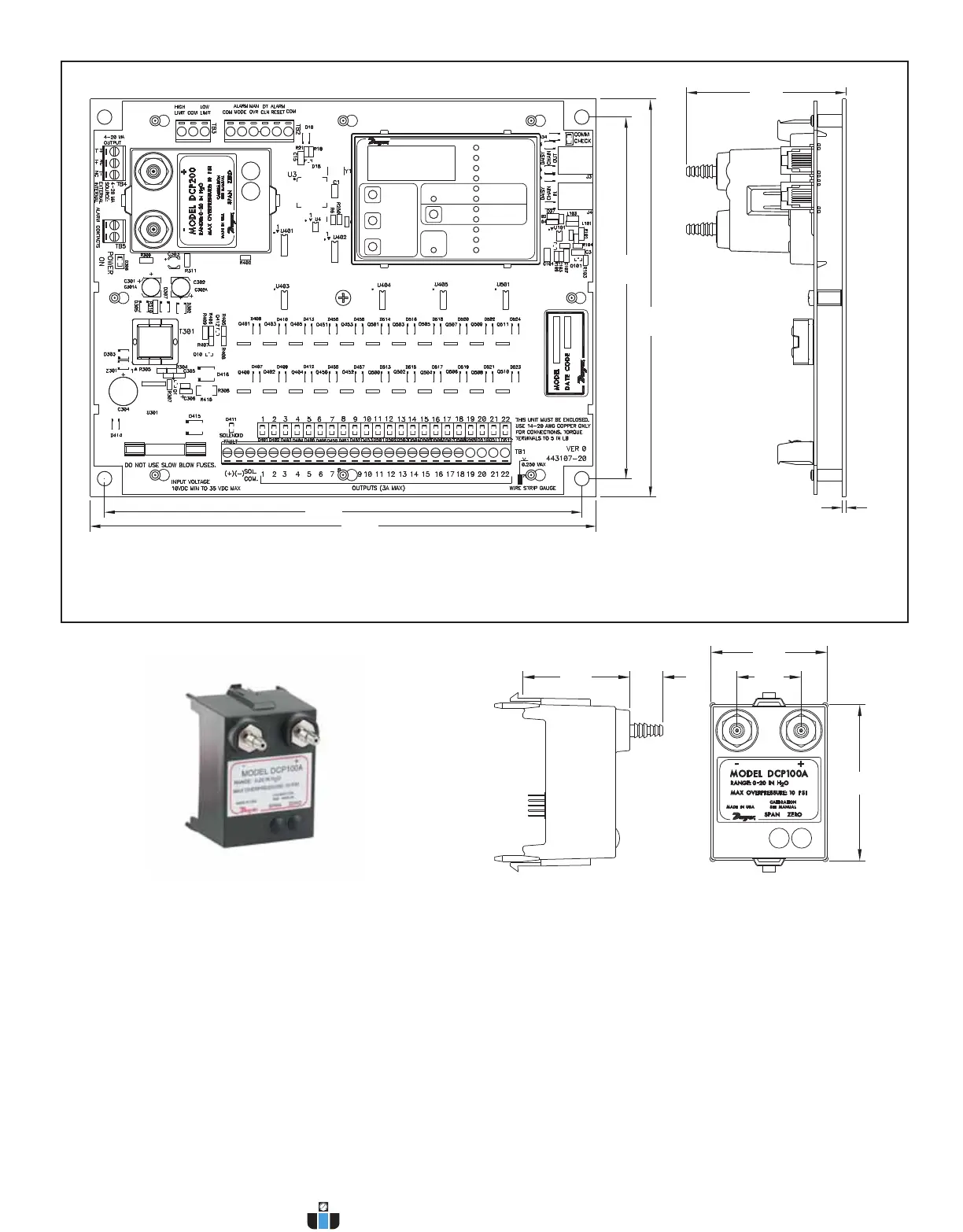

Figure 1 – Dimensional Specifications for the DCT1000DC
(shown with optional module DCP100A)
