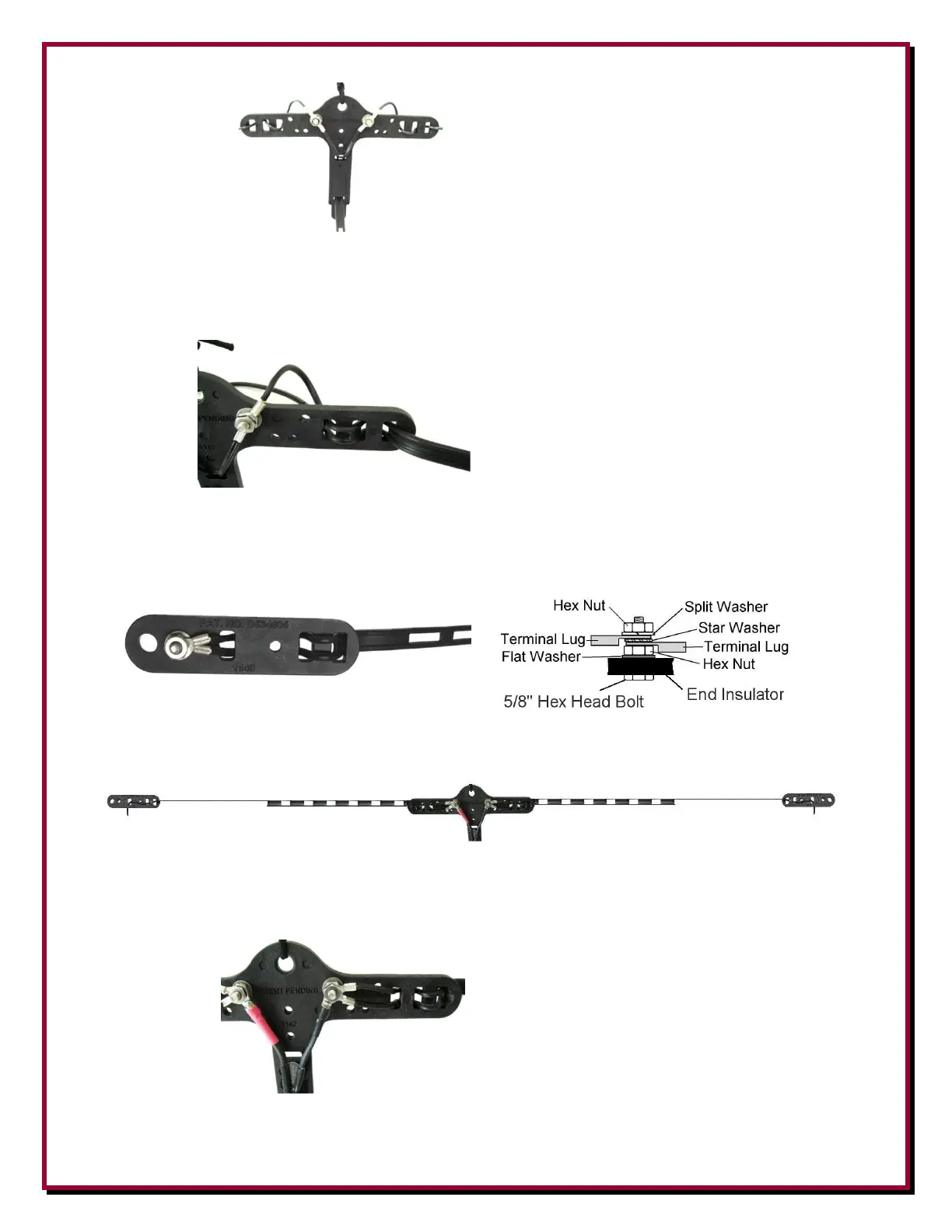

DX Engineering EZ-Build DXE-UWA-KIT - Folded Dipole Element; Dual Frequency Element

- 14 -
Ladder Line Feed
DX Engineering UV Resistant Antenna Wire
DX Engineering 300-ohm Transmitting Twinlead
UV Resistant Support Rope
Folded Dipole Element
Ladder Line Feed
DX Engineering 300-ohm Transmitting Twinlead
UV Resistant Support Rope
Suggested method to secure the ladder line for a Folded Dipole Element on the end insulators:
Dual Frequency Element
Typical Dual Band Dipole using Ladder Line. Upper dipole leg wire is cut for lower frequency,
lower dipole leg is cut wire for higher frequency (not to scale).
Coaxial Feed
DX Engineering UWA Kit with Strain Relief
DX Engineering 300-ohm Transmitting Twinlead
UV Resistant Support Rope
