Model 200 Dispensing Valve User Guide

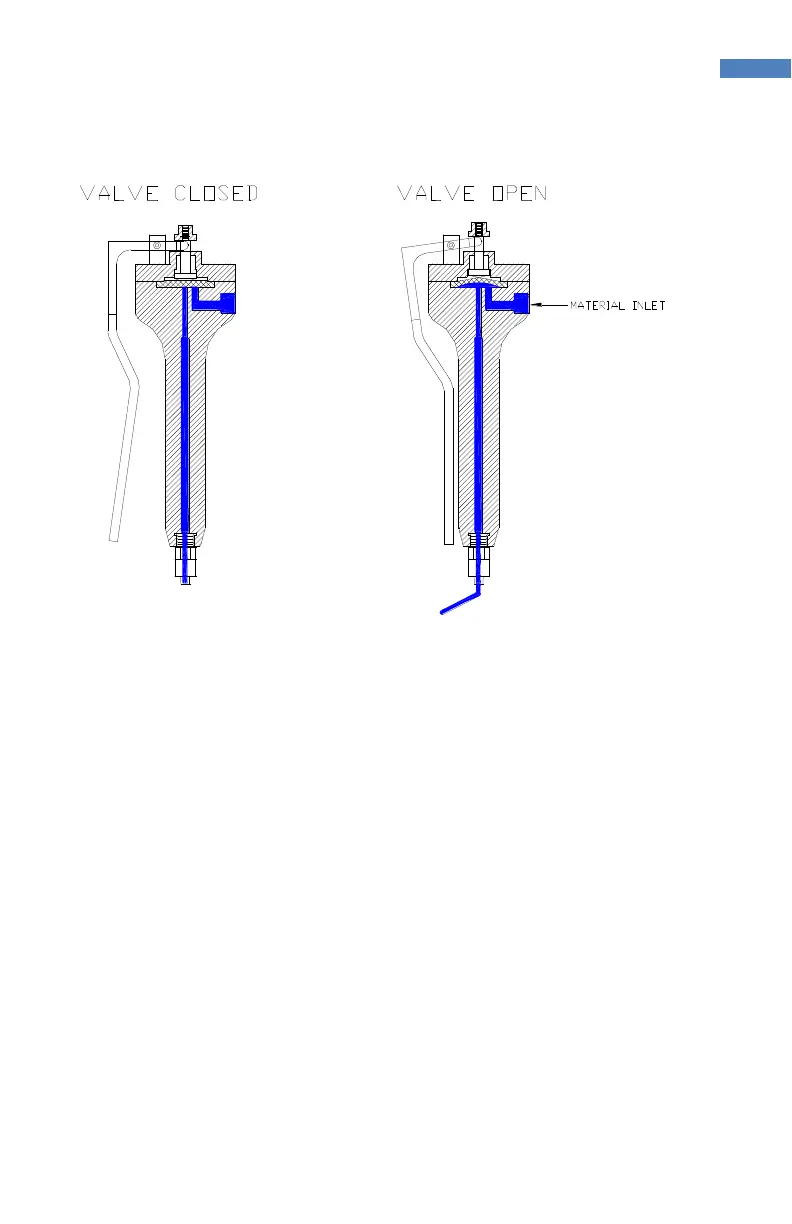

Figure 4. Model 200 Actuation Illustration
Operation
Start Up
At the beginning of the day or a shift, it is necessary to properly start the Model 200 to
begin normal operation. To start the dispensing valve, follow the instructions below.
Refer to Figure 1 for part references.
1. Remove the Luer Lock Plug from the Luer Adapter (I) and discard.
2. Place a new Dispense Tip onto the Luer Adapter (I).
3. Apply fluid pressure to the valve by turning on the pressure to the Material
Reservoir.
4. Cycle the valve to the open position to bleed all air that may have become trapped
when changing the Dispense Tip.
IMPORTANT: It is often necessary to orient the valve with the Dispense Tip pointing to
completely bleed all air from the Fluid Body and Tip.
To Next Page
