Dyna-Glo DG9WB - Assembly Instructions; Attach Motor Bracket to Grill; Mount Rotisserie Motor on Bracket

5
ASSEMBLY INSTRUCTIONS
Hardware Used
Bolt x 4
Nut x 4
Washer x 4
H
AA
CC
J
BB
1
J
J
Fig. 1
Fig. 8
AA
BB
CC

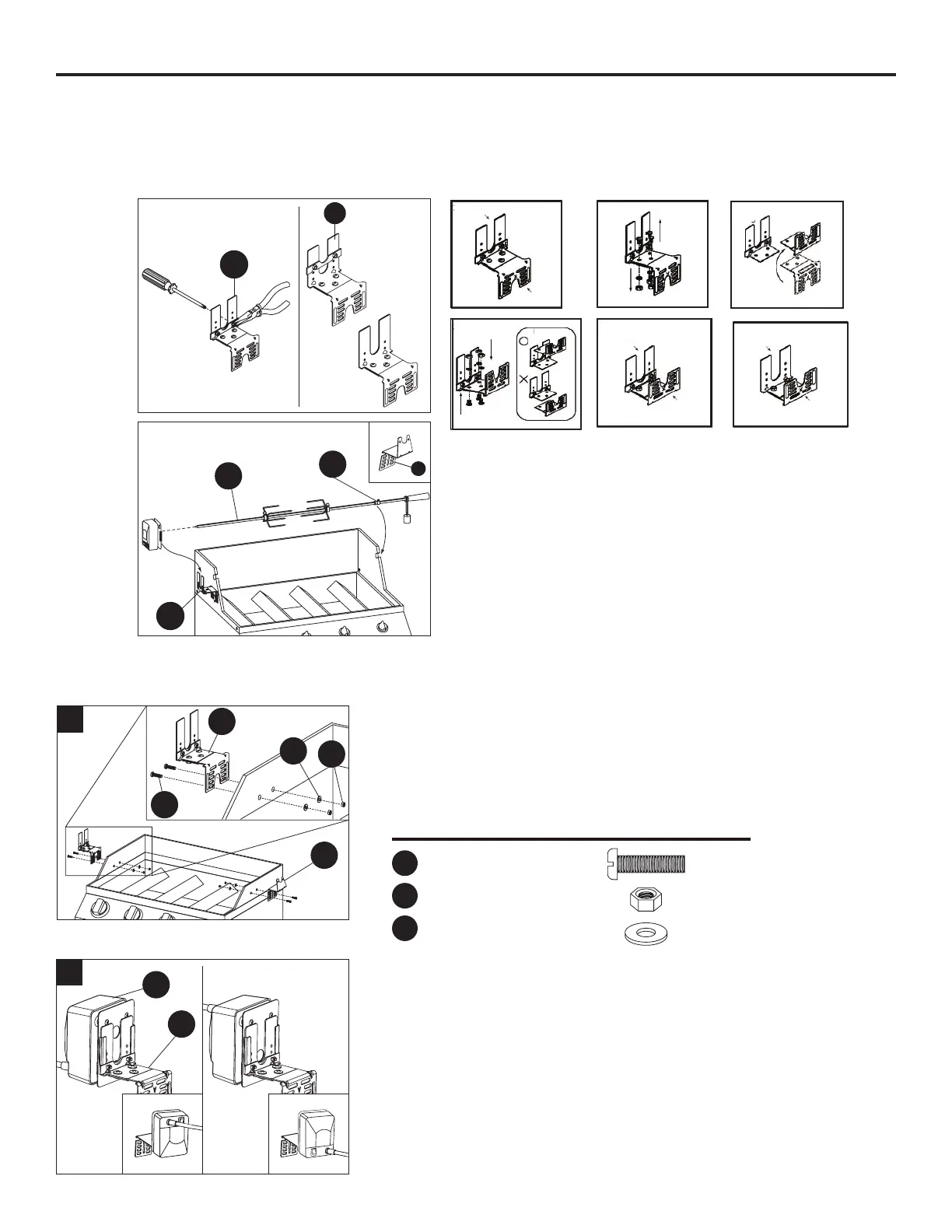

2. Slide rotisserie motor (A) over motor bracket (J). The rotisserie
motor (A) can be mounted one of two ways, depending on the
desired height of the spit rod (B).
1. Attach motor bracket (J) to outer left or right side of the rebox
using two bolts (AA), two washers (CC) and two nuts (BB).
Allow enough clearance for spit rod. Note the attachment
holes used for motor bracket (J) and repeat for spit rod bracket
(H) for opposite side using two bolts (AA), two washers (CC)
and two nuts (BB).
NOTE: The motor bracket (J) can be adjusted to accommodate most attachment points (see Figure 1).
Review the various adjustment methods (shown in Figures 2 through 7) to determine the correct t for
your grill before attaching. Some grills have a spit rod slot on the rebox and it is possible that the spit
rod bracket (H) might not t your grill. If this is the case, slide the collar (E) onto the spit rod (B). Allow
the groove in the collar (E) to rest in the slot opening, as shown in Figure 8.
NOTE: On some grills the spit rod (B) may not be long enough. Attach the spit rod extender (I) and
proceed with installation.
This side up This side up
2
A
J
Fig. 2Fig. 2 Fig. 3 Fig. 4
Fig. 5 Fig. 6
Fig. 7
B
E
H
J
