Dyna-Glo DGN405SNC - Package Contents; Component Identification

44
PART DESCRIPTION QUANTITY
A Side Shelf 2
B Lid and Firebox Assembly 1
C Lid Handle Assembly 1
D Smoke Stack Assembly 1
E Charcoal Access Door 1
F Crank Handle 1
G Damper Handle – Right 1
H Damper 2
I Side Shelf Support – Right
Rear/Left Front
2
J Ash Tray 1
K Ash Tray Handle 1
L Cart Brace 2
PART DESCRIPTION QUANTITY
M Right Leg Assembly 1
N Caster 2
O Storage Basket 1
P Axle 1
Q Wheel 2
R Left Leg Assembly 1
S Charcoal Tray 1
T Grate 2
U Warming Rack 1
V Damper Handle – Left 1
W
X
Y
Side Shelf Support – Left
Rear/Right Front
Temperature Gauge
Temperature Gauge Nut Bezel
2
1
1

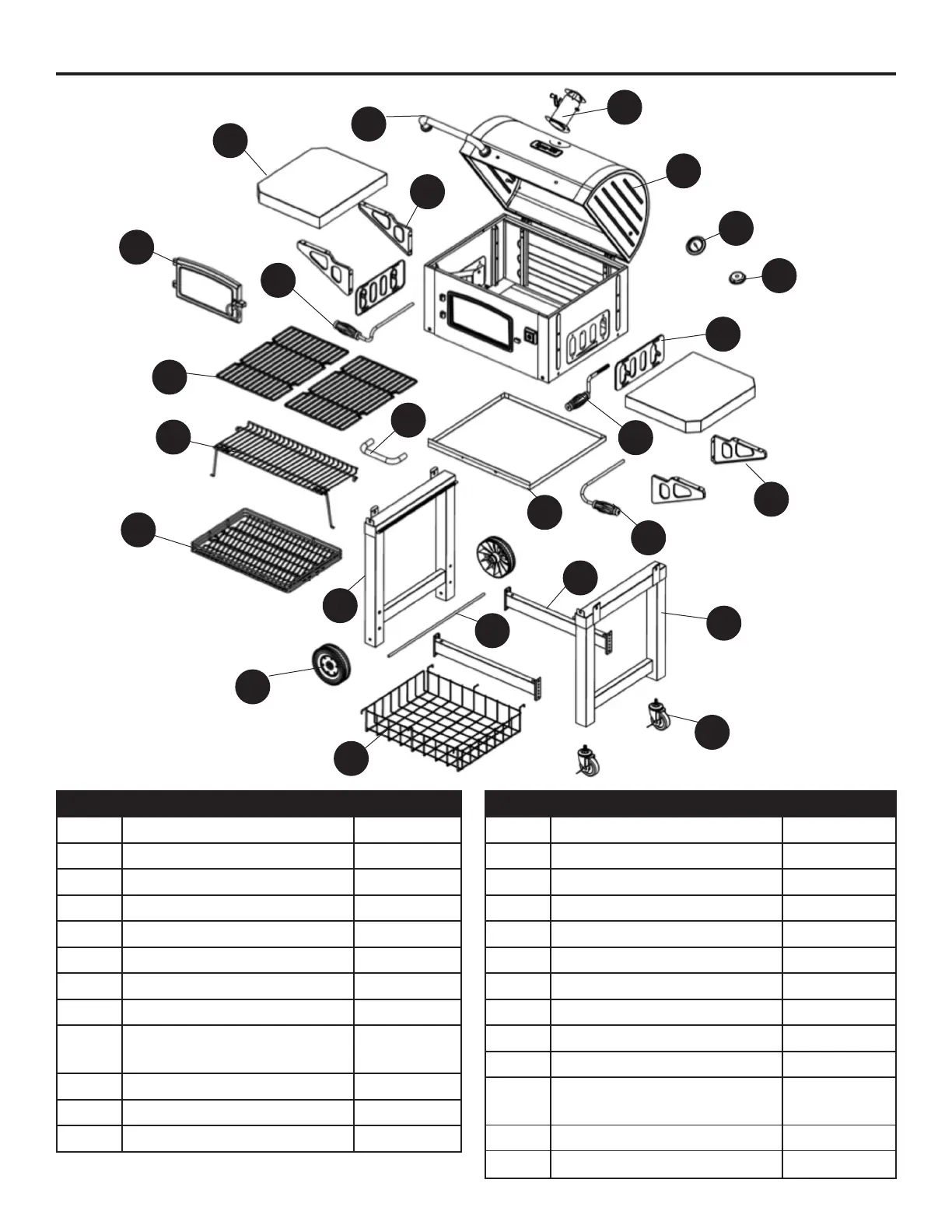

PACKAGE CONTENTS
A
D
C
E
F
G
B
J
I
H
K
L
R
S
Q
O
P
N
M
T
U
V
W
X
Y
