ASSEMBLY INSTRUCTIONS

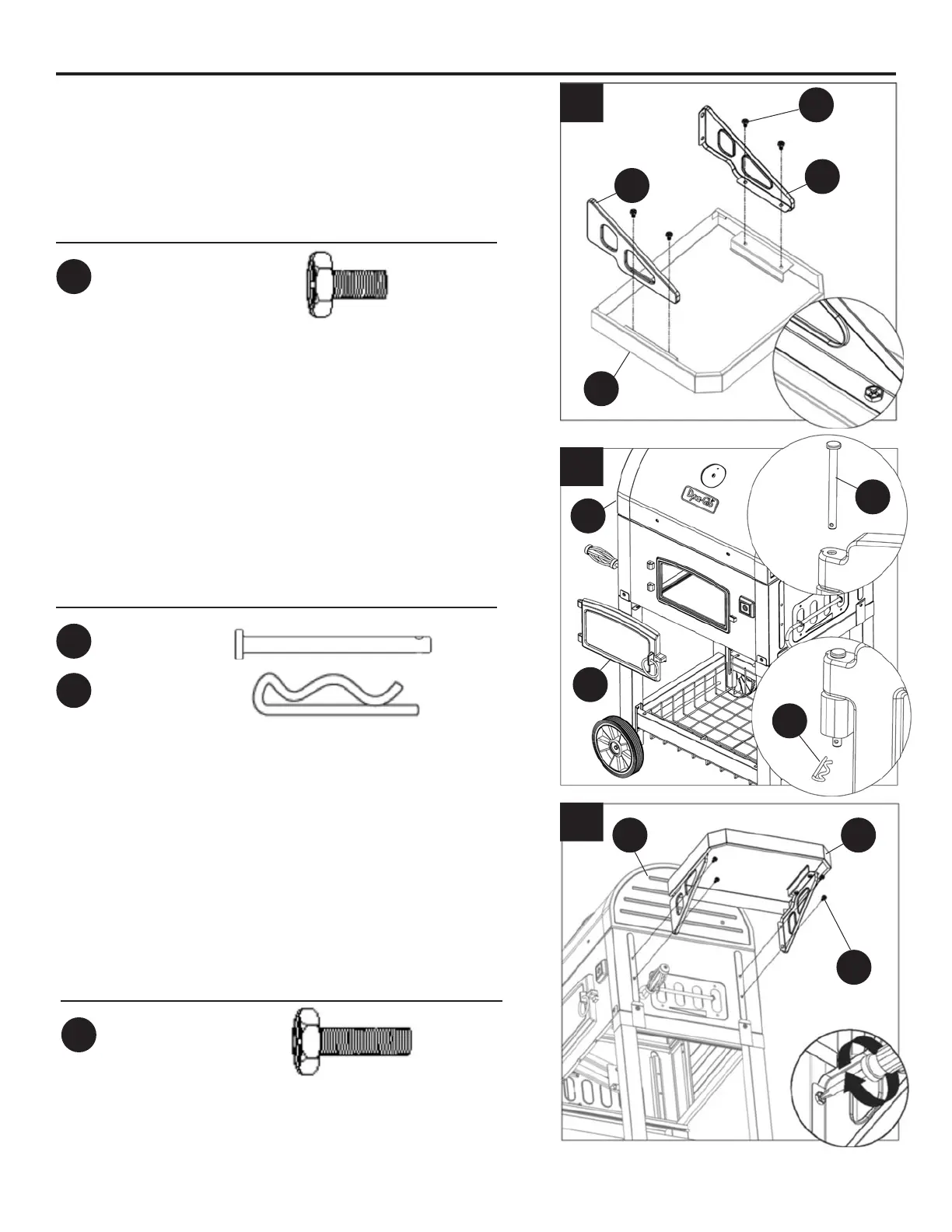

11. Attach charcoal access door (E) to lid and
rebox assembly (B). Insert two hinge bolts
(HH) into hinges on charcoal access door (E)
and secure with two cotter pins (FF).
Hardware Used
Cotter Pin
Hinge Bolt
x 2
x 2
FF
HH
10. With shelf upside down, attach side shelf
support – left rear/right front (W) and side shelf
support – left front/right rear (I) to side shelf
(A) using four M6x12 bolts (AA) on each side.
Repeat for remaining shelf (A).
Hardware Used
M6x12 Bolt
x 8
AA
12. Attach right side shelf (A) to lid and rebox
assembly (B) using four M6x20 bolts (BB).
Repeat on left side with remaining side shelf (A).
NOTE: First secure two upper M6x20 bolts (BB),
then lower M6x20 bolts (BB).
Hardware Used
M6x20 Bolt
x 8
BB
10
11
HH
FF
B
E
A
W
AA
I
12
BB
AB
