6

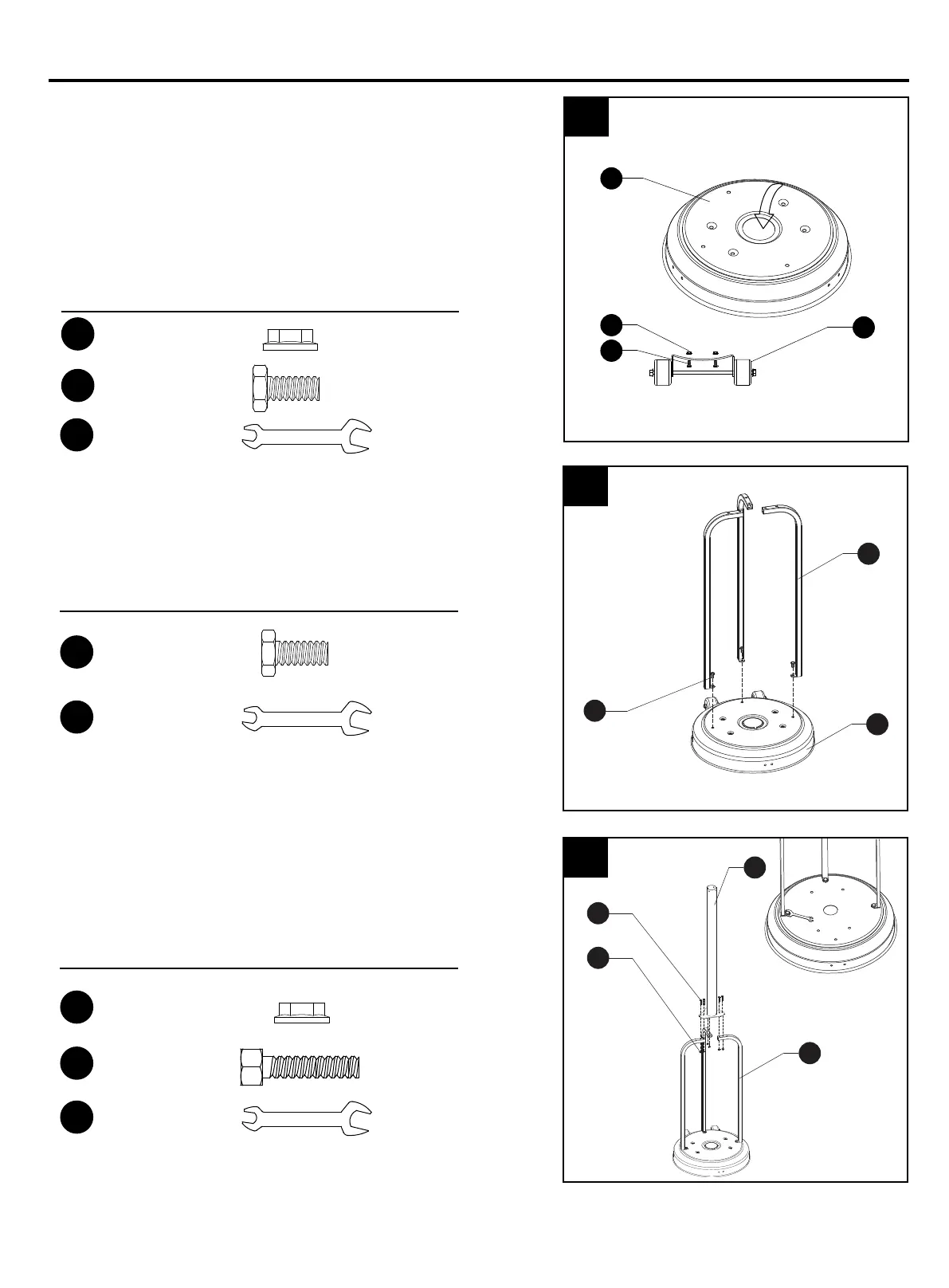

ASSEMBLY INSTRUCTIONS
Hardware Used
2
3
2. Loosely attach three support brackets (F) to base (G)
with three bolts M8 x 16 (BB) downward through support
brackets (F) into the base (G).
BB
LL
Bolt M8 x 16
x 3
CC
x 6
M6 Flange nut
EE
Bolt M6 x 30
x 6
Hardware Used
x 1
Wrench
LL
x 1
Wrench
LL
x 1
Wrench
Hardware Used
AA
BB
1
1. To improve the stability, the base (G) must be filled with sand.
Remove lid from center of base (G). Slowly pour the sand into
the base (G). Shake the base (G) to disperse the sand evenly.
Close lid tightly. Attach wheel assembly (H) to base (G). Line up
holes in wheel bracket (H) with corresponding holes in base.
Insert two bolts M8 x 16 (BB) through holes, and finger tighten
two M8 flange nuts (AA). Be sure that the wheel assembly (H) is
parallel to the base (G), and fully tighten bolts.
x 2
Bolt M8 x 16
M8 Flange nut
x 2
G
AA
BB
H
Fill sand
BB
G
F
EE
CC
F
E
3. Attach post (E) to three support brackets (F) using six
bolts M6 x 30 (EE) and six M6 flange nuts (CC). Fully
tighten all of the screws, including those at the base.
To Next Page
