9160-00
Page 8 60707-122

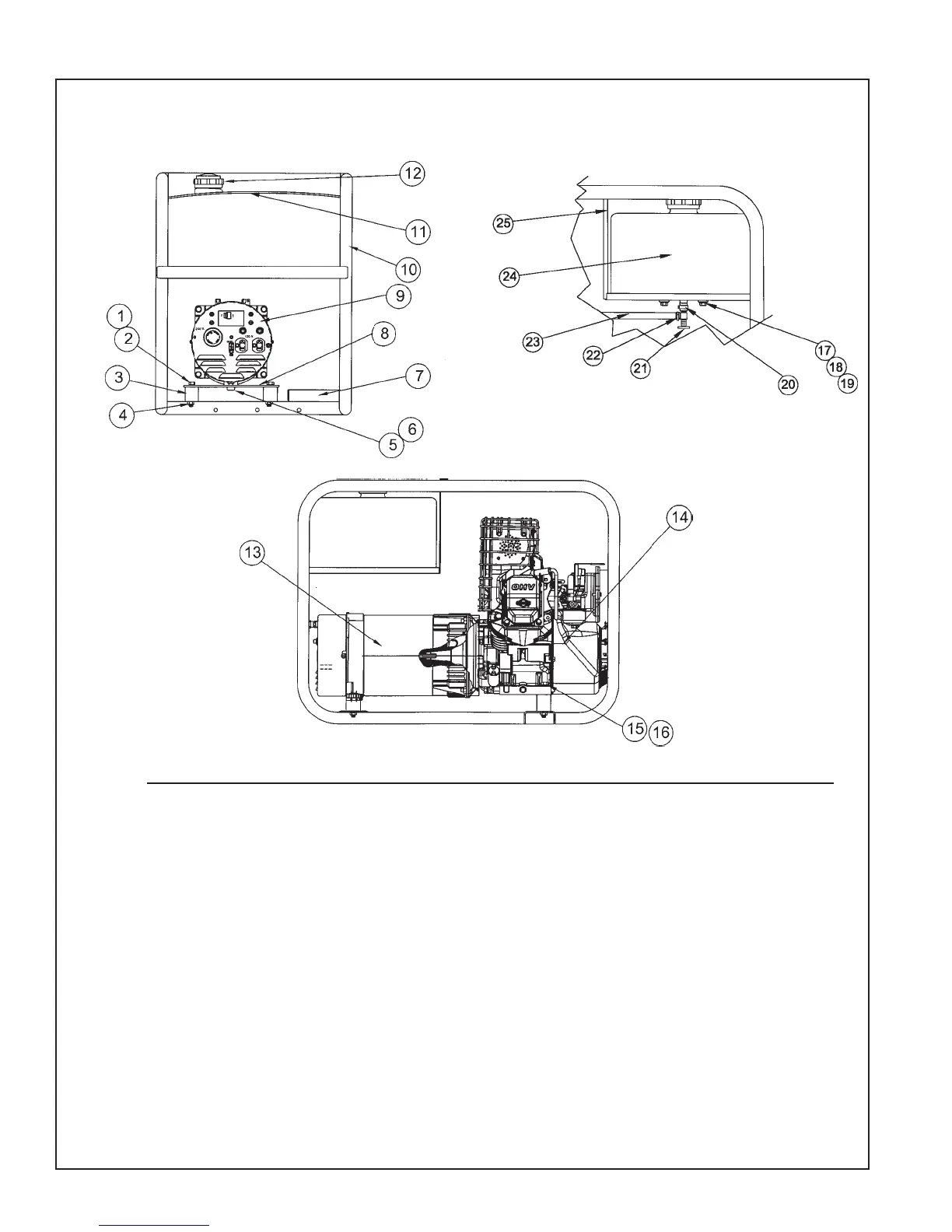

COMPLETE UNIT ASSEMBLY
REF# Part Number QTY Description
1 467-000 2 Cap Screw 5/16-18 X .75
2 480-000 2 Lockwasher 5/16
3 64062-000 4 Shock Mounts
4 16249-000 4 Locknut 5/16-18
5 16250-000 1 Flange Nut 3/8-16
6 464-000 1 Cap Screw 3/8-16 X.75
7 16335-007 1 Generator Support
8 15676-005 1 Battery Tray (1)
NI 15767-005 1 Negative Battery Cable (1)
NI 15767-016 1 Positive Battery Cable (1)
NI 15807-000 1 Battery Holddown Kit (1)
9 15617-003 1 End Cover Assembly
10 63073-031 1 Cradle Assembly
11 58684-011 1 Edge Trim
