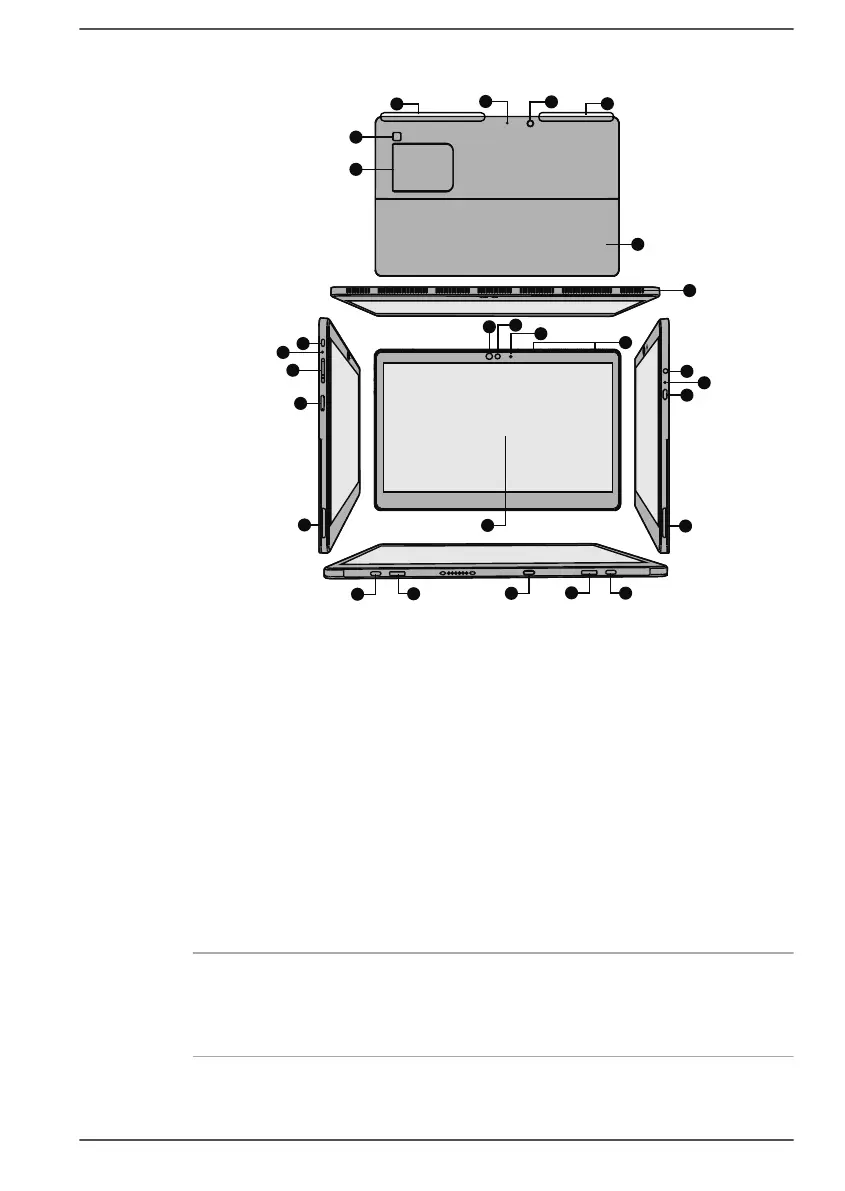

Figure 3-1 Tablet computer
18
20
14
15
15
14
16
5
4
2
8
22
9
12
11
13
19
20
1
3
6
7
9
10
17
23
21
1. Infrared LED* 13. SIM card slot*
2. Web Camera (front) 14. Guide pin grooves
3. Web Camera LED (front) 15. Hook grooves
4. Microphones 16. USB Type-C™ port (Docking
interface)
5. Display screen 17. Fingerprint Sensor*
6. Headphone/Microphone jack 18. Camera LED (back)
7. DC IN/Battery indicator 19. Camera (back)
8. USB Type-C™ port 20. Wireless communication antennas
(not shown)
9. Stereo speakers 21. Smart Card slot*
10. Power button 22. Kickstand
11. Reset hole 23. Cooling vents
12. Volume up/down button
* Provided with some models.
Product appearance depends on the model you purchased.
Infrared LED The Infrared LED blinks when Windows Hello
Face is operating.
Only models which support face recognition
feature are equipped with the Infrared LED.
User's Manual 3-2
