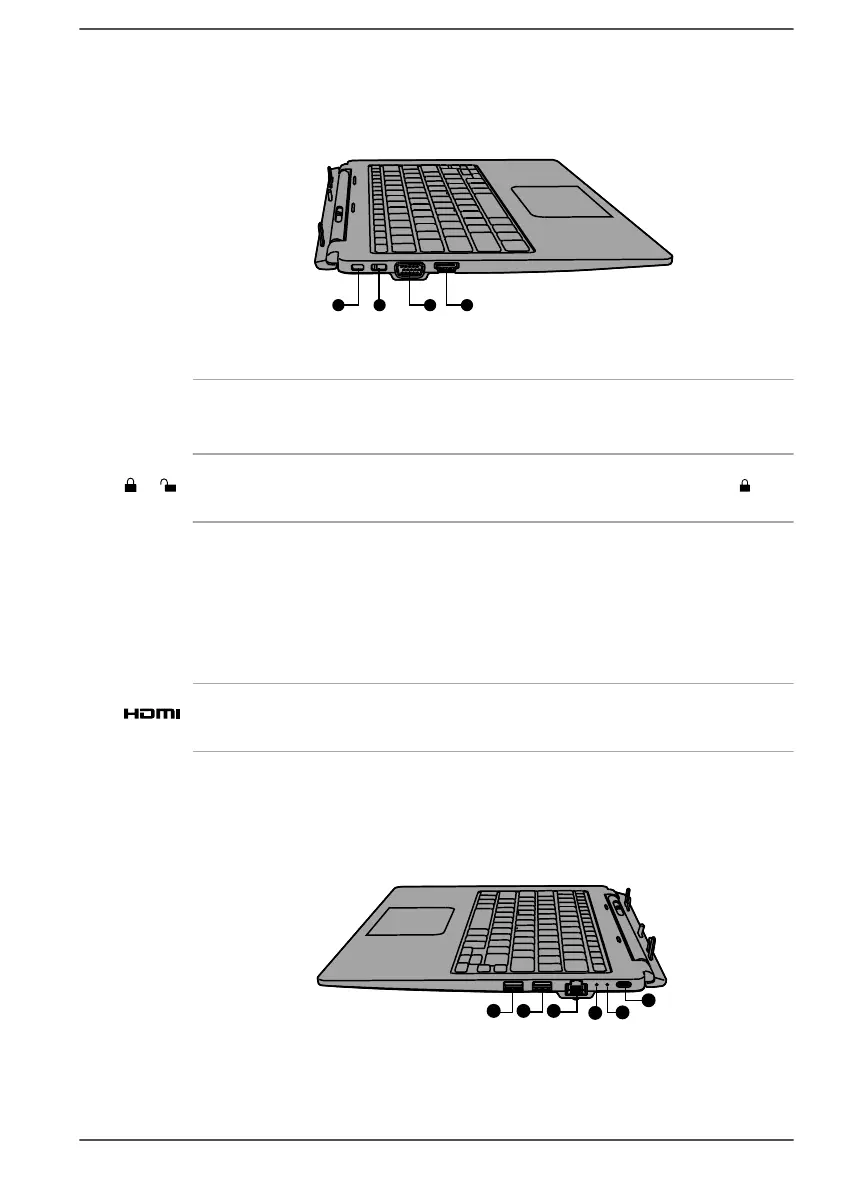

Left side
The following figure shows the left side of the keyboard dock.
Figure 3-3 The left side of the keyboard dock
1. Security lock slot 3. External RGB monitor port
2. Security lock switch 4. HDMI™ out port
Security lock slot A security cable can be attached to this slot and
then connected to a desk or other large object in
order to deter theft of the computer.
Security lock switch When this switch is in the locked position ( ),
the release latch cannot be slided.
External RGB monitor
port
This port provides 15-pin, analog RGB port.
Refer to the External RGB monitor port pin
assignment section for more information on
external RGB monitor port pin assignment.
This port allows you to connect an external RGB
monitor to the computer.
HDMI™ out port HDMI™ out port can connect with Type A
connector HDMI™ cable.
Right side
The following figure shows the right side of the keyboard dock.
Figure 3-4 The right side of the keyboard dock
1. Universal Serial Bus (USB 3.0) ports 4. DC IN/Second Battery indicator
2. LAN jack 5. USB Type-C™ port (for charging
only)
3. Docking indicator
User's Manual 3-9
