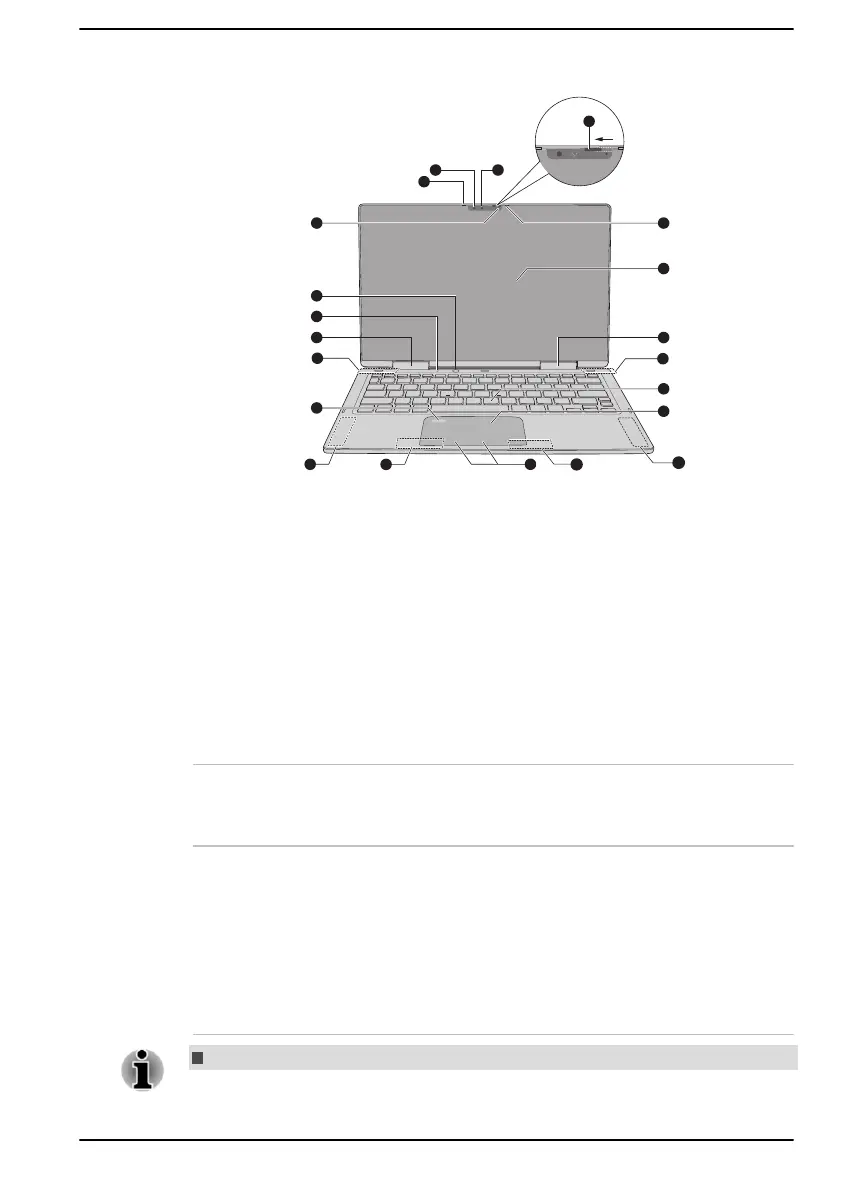

Figure 3-6 The front of the computer with the display panel open
53
5
1
6
10
12
11
9 9
8
7
14
14
4
2
15
15
15
15
13
1. Infrared LED* 9. Display hinges
2. Web Camera (User Facing) 10. Keyboard
3. Web Camera LED (User Facing) 11. Fingerprint sensor*
4. Web Camera Shutter 12. Touch Pad
5. Microphones 13. Touch Pad control buttons
6. Display screen 14. Wireless communication antennas
(Wireless LAN) (not shown)
7. Camera (World Facing) 15. Wireless communication antennas
(Wireless WAN) (not shown)*
8. Camera LED (World Facing)
* Provided with some models.
Product appearance depends on the model you purchased.
Infrared LED The Infrared LED blinks when Windows Hello
Face is operating.
Some models are equipped with Infrared LEDs.
Web Camera (User
Facing)
Web Camera is a device that allows you to
record video or take photographs with your
computer. You can use it for video chatting or
video conferences using a communication tool.
The Web Camera available on some models can
support face recognition feature for Windows
Hello. For more information, refer to the onscreen
instructions in Windows Hello.
Do not point the web camera directly at the sun.
User's Manual 3-6
