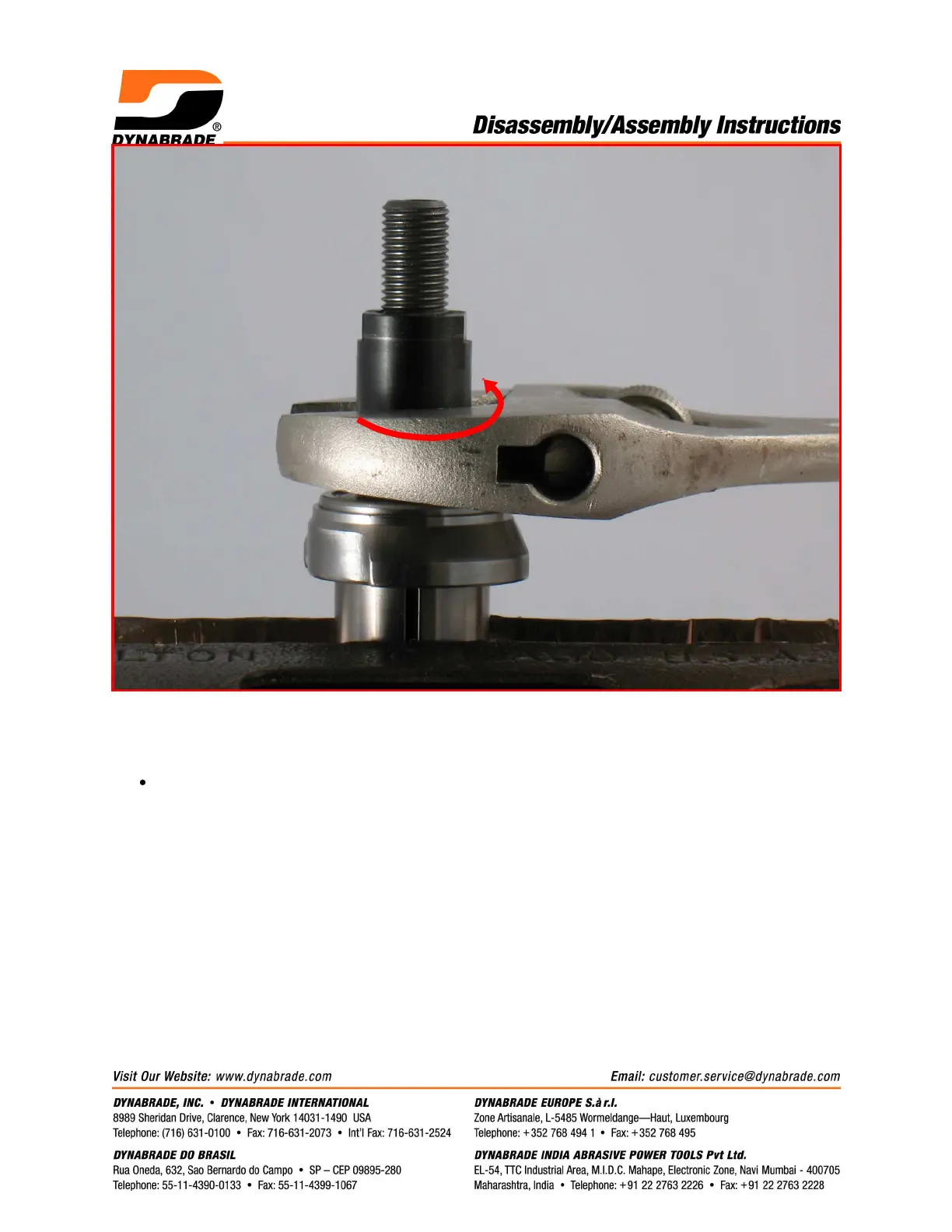

6. Fasten the 01120 Rotor in the vise with aluminum or bronze jaws and use an adjustable
wrench to remove the 04081 Rotor Nut. Turn counterclockwise.
Remove the 01007 Bearing, 01008 Bearing Plate, shims, and 01010 Spacer.
Motor Disassembly Completed.
Clean and inspect parts before assembling.
