Assembly Instructions - 0.5 hp. Dynafile II

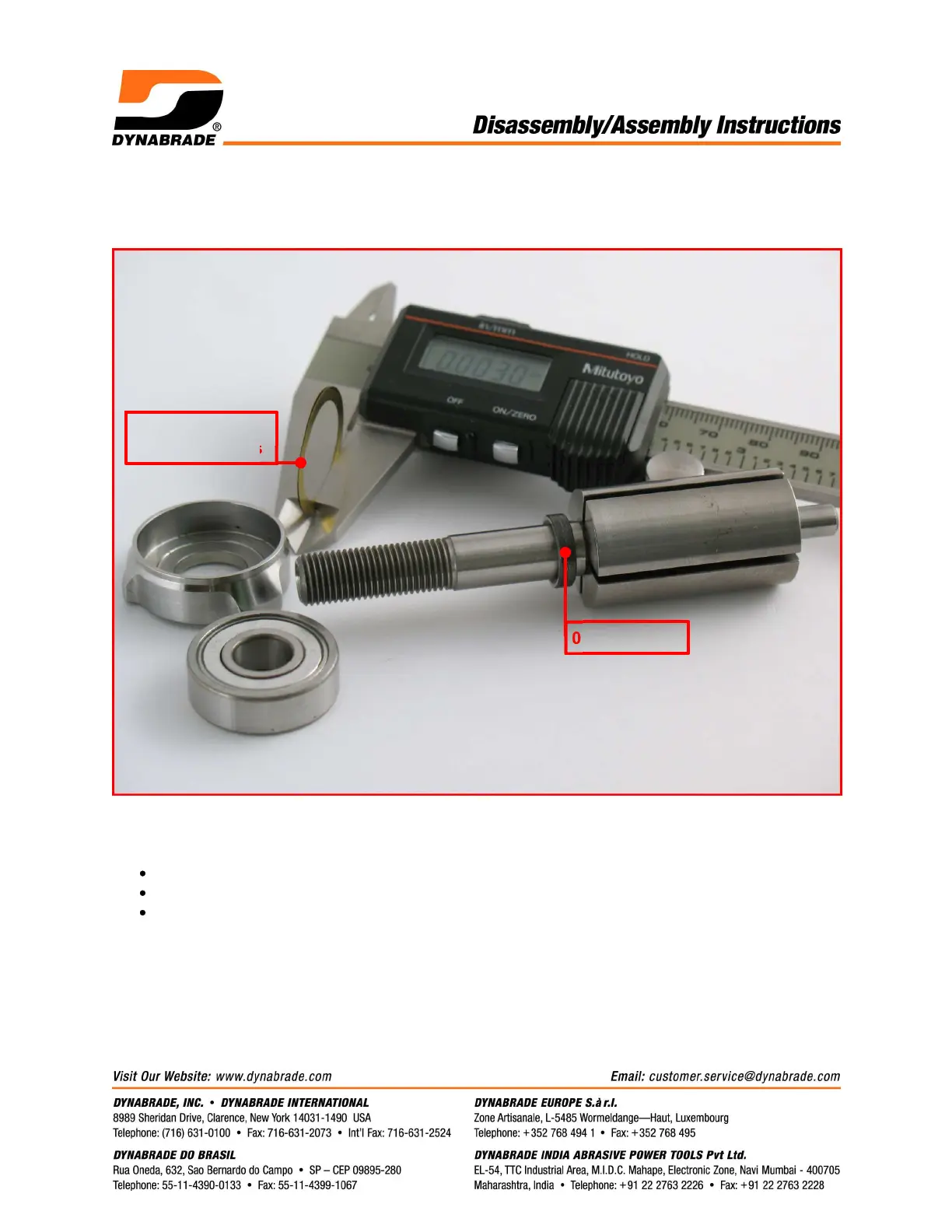

Motor Assembly:
1. Install the 01010 Spacer onto the rotor.
Install .003" (~0.80 mm) shim thickness into the 01008 Front Bearing Plate.
Install the 01007 Bearing into the front bearing plate.
Install the bearing and plate onto the rotor.
.003" (~0.80 mm)
shim thickness
01010 Spacer
