Dynacord D 11 A - Installation; Controls, Indicators and Connections

D 11A
5
2 Installation

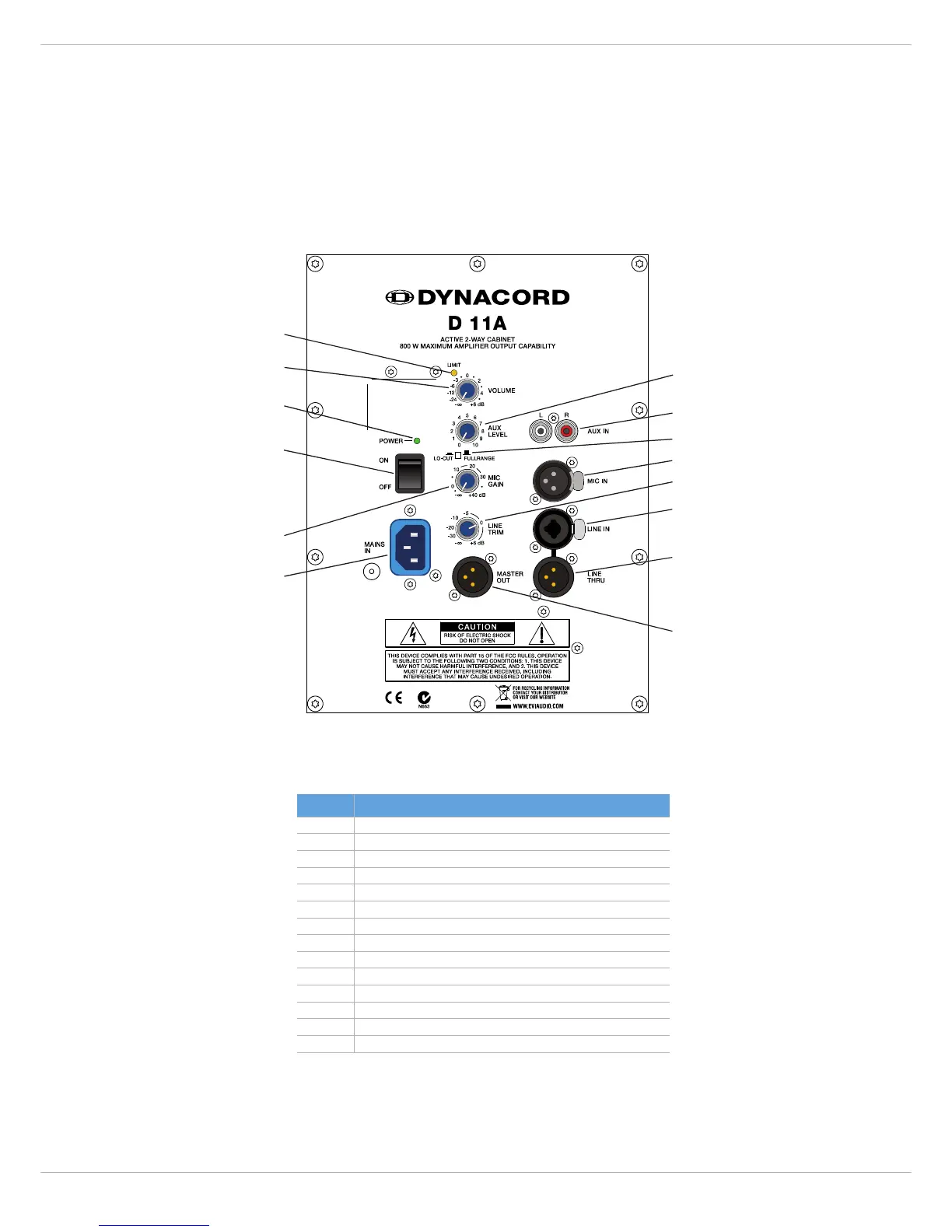

2.1 Controls, Indicators and Connections
3
4
6
7
8
9
11
12
13
1
2
5
10
14
Number Description
1 Limit indicator (LIMIT)
2 Master level control (VOLUME)
3 Power on/off indicator (POWER)
4 Mains switch (ON / OFF)
5 Microphone level control (MIC GAIN)
6 Mains connector, lockable (MAINS IN)
7 Aux level control (AUX LEVEL)
8 Input connector (RCA) for stereo aux signal (AUX IN L/R)
9 Mode selection switch (LO-CUT / FULLRANGE)
10 Input connector for microphone level audio signal (MIC IN)
11 Line level control (LINE TRIM)
12 Input connector (XLR or phone) for line level audio signal (LINE IN)
13 Output connector (XLR) for line level audio signal (LINE THRU)
14 Output connector (XLR) for master audio signal (MASTER OUT)
