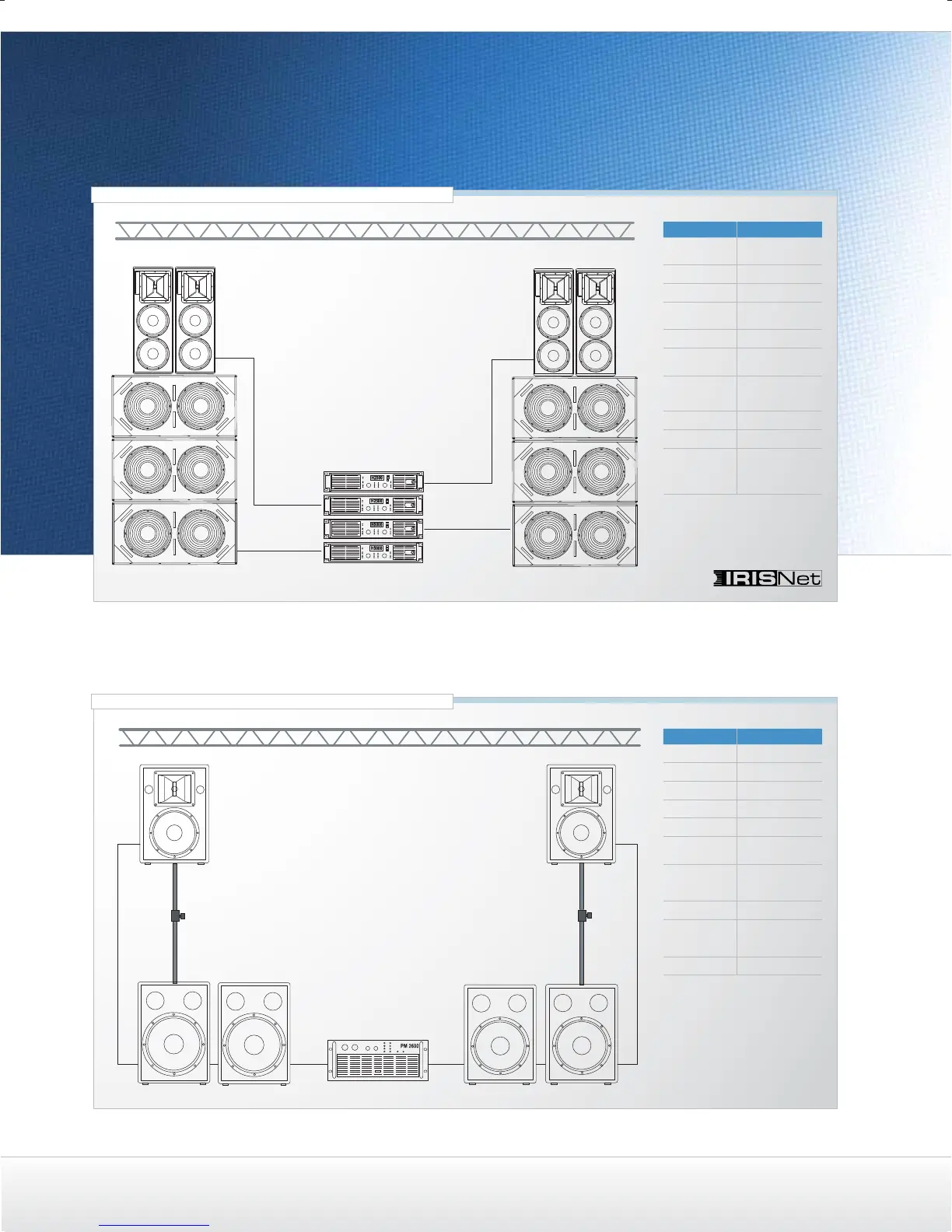

VariLine HI-POWER PA SYSTEM
Confi guration Active 3-Way
Cabinet Types
4 x VL 212,
6 x SUB 28
Amplifi ers
2 x H 5000, 2 x H 2500
Controllers
4 x RCM-26 Module
Cables
6 x 4-pole long,
8 x 4-pole short
Accessories
-
Horizontal
Coverage
80° or 180°
(rotable Horns)
Total Amp Power
4 x 3000 W Sub (2.7 Ohms)
2 x 2500 W Mid (2 Ohms)
2 x 1450 W High (4 Ohms)
Typical Distance
-
Options
-
Comments
each Sub is switched to
2 x 8 Ohms, all cables
4-pole, conn. to Amp
Output Ch. A
PowerMax 5 COMPACT PA SYSTEM, MEDIUM CLUBS
Confi guration Active 2-Way
Cabinet Types
2 x F 150, 4 x F 8
Amplifi ers
1 x PM 2600
Controllers
integrated
Cables
-
Accessories
2 x VPM 1500
Horizontal
Coverage
2 x 90°
Total Amp Power
2 x 600 W
+ 2 x 700 W Sub
= 2600 W
Typical Distance
15 - 20 m
Options
PM 2600 can drive
3 x Top and 3 x Sub on
each side
Comments
PowerMax 5 APPLICATION GUIDE
VariLine APPLICATION GUIDE
3 x SUB 28 3 x SUB 28
2 x VL 2122 x VL 212
2 x H 2500 / 2 x H 5000
F 150
F 8 F 8 F 8 F 8PM 2600
F 150
