8

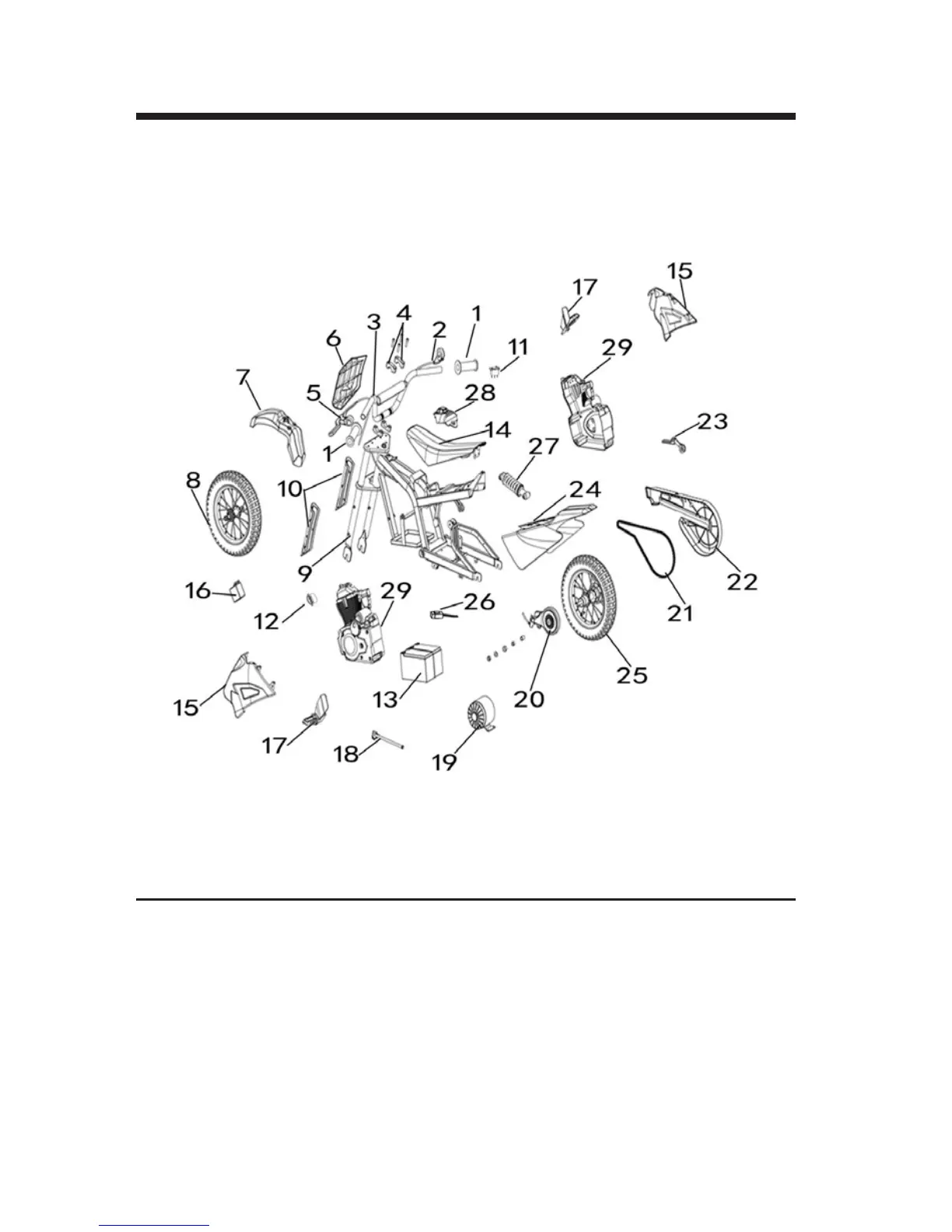

ELECTRIC DIRT BIKE PARTS
Part Description
1. Handlebar Grip
2. Variable Speed Twist Grip Throttle
3. Handlebar
4. Handlebar Clamps
5. Brake Lever Assembly
6. Number Plate
7. Front Fender
8. Front Wheel Complete
9. Front Fork
10. Front Fork Fairing
11. ON/OFF Switch
12. Charger Port
13. Battery (2x12V/7AH)
14. Seat
15. Front Fairing
Part Description
16. Control Module
17. Footplate
18. Kickstand (Right/Left)
19. Motor (24V 250W)
20. Rear Brake
21. Chain
22. Chain Guard
23. Chain Tensioner (Upper / Lower)
24. Rear Seat Fairing
25. Rear Wheel Complete
26. 20A Thermal Fuse
27. Rear Shock
28. Front Fairing Cover
29. Battery Box
