Chain, Rear Brake and Rear Wheel Replacement
Tools required: Phillips screwdriver, 8mm wrench, 10mm wrench,
12mm wrench and 17mm wrench (not included).

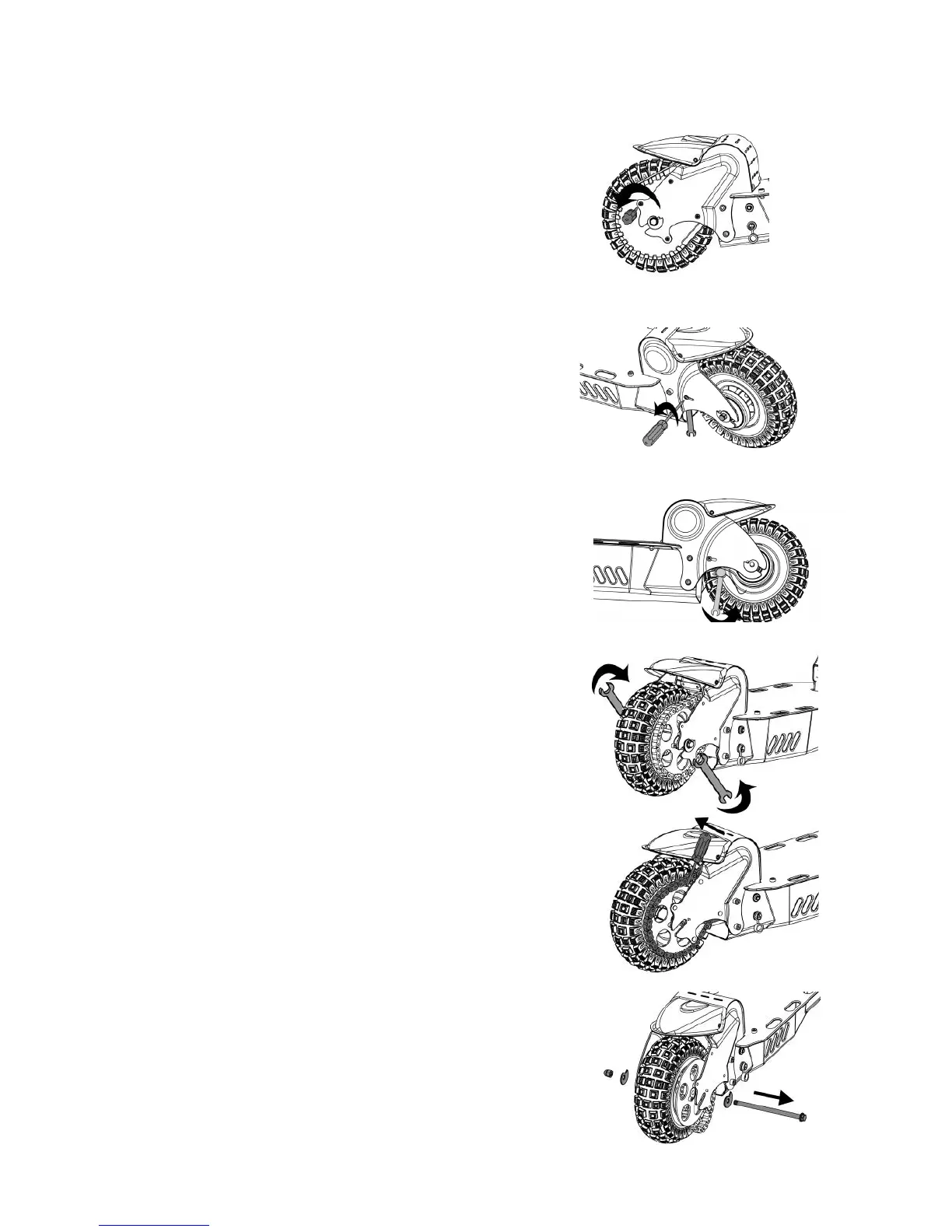

1. With a Phillips screwdriver, loosen the four
screws in the chain guard and remove the chain
guard.
2. Use a Philips Screwdriver and a 8mm wrench
to loosen the disconnect the brake housing
anchor. (Note: Keep the spacer and washers
together).
3. With a 10mm wrench, loosen the brake cable
anchor and disconnect the cable. (Note: Get all
the anchor hardware out of the brake arm hole
and keep them together to avoid losing.)
4. Use a 12mm wrench and a 17mm wrench to
loosen the rear wheel axle from the right and left
sides at the same time as shown.
5. Use a screwdriver to remove the chain off the
chain sprocket as shown.
6. Draw the rear wheel axle out of the rear wheel
as shown.
