9

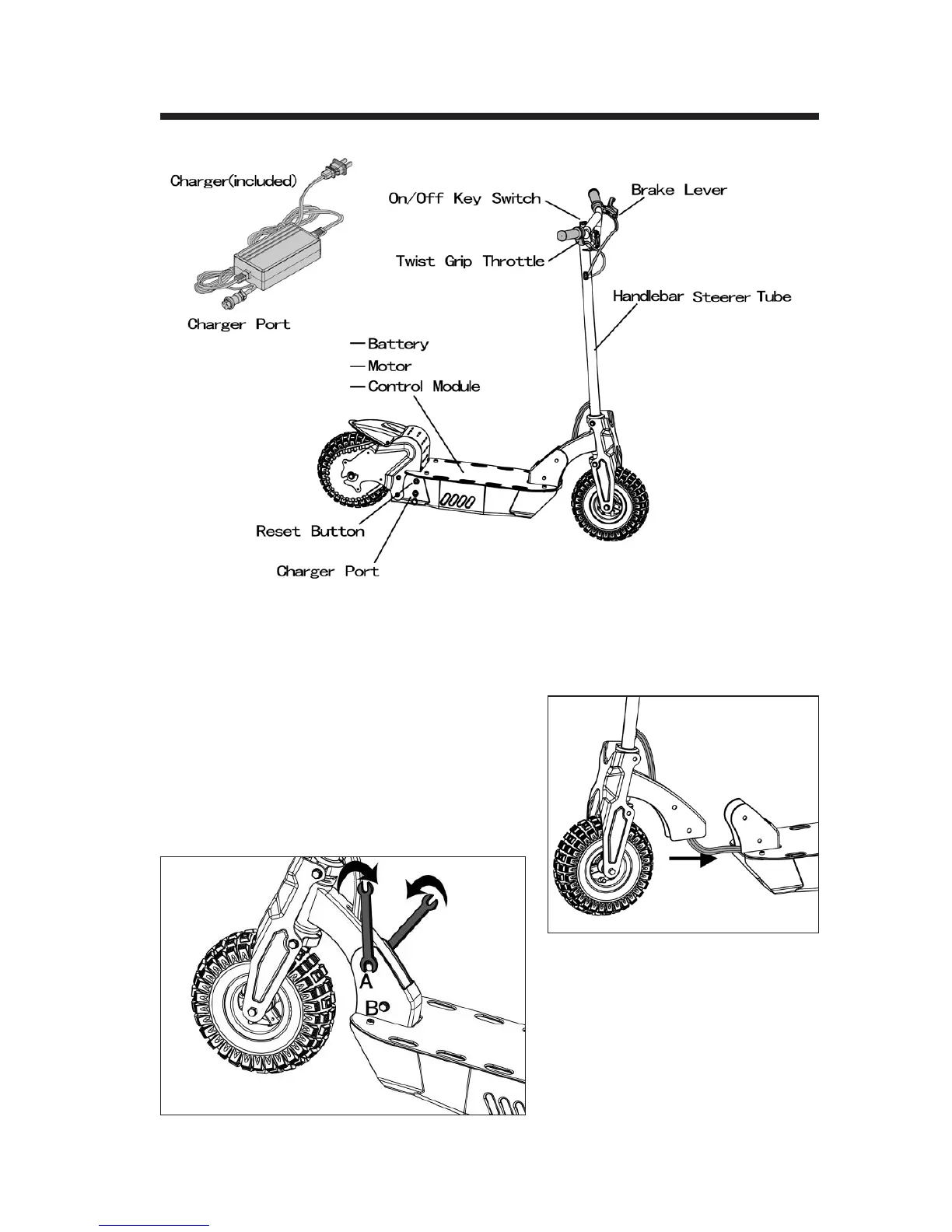

Scooter Body and Front Fork Assembly
Tools Required: 13mm wrench & 17mm wrench (not included)
1 Insert the stem (assembled with the front
fork, front wheel and the steerer tube already)
into the scooter body as shown.
Note: Make sure the cable wires are smooth
and out of the way before inserting (to avoid
kinks or breakage)
2 Align the holes A & B, and insert
a bolt (M10x120m) into each and
securely tighten the bolts with
13mm and 17mm wrench from the
left and right sides at the same
time.
ASSEMBLY
To Next Page
