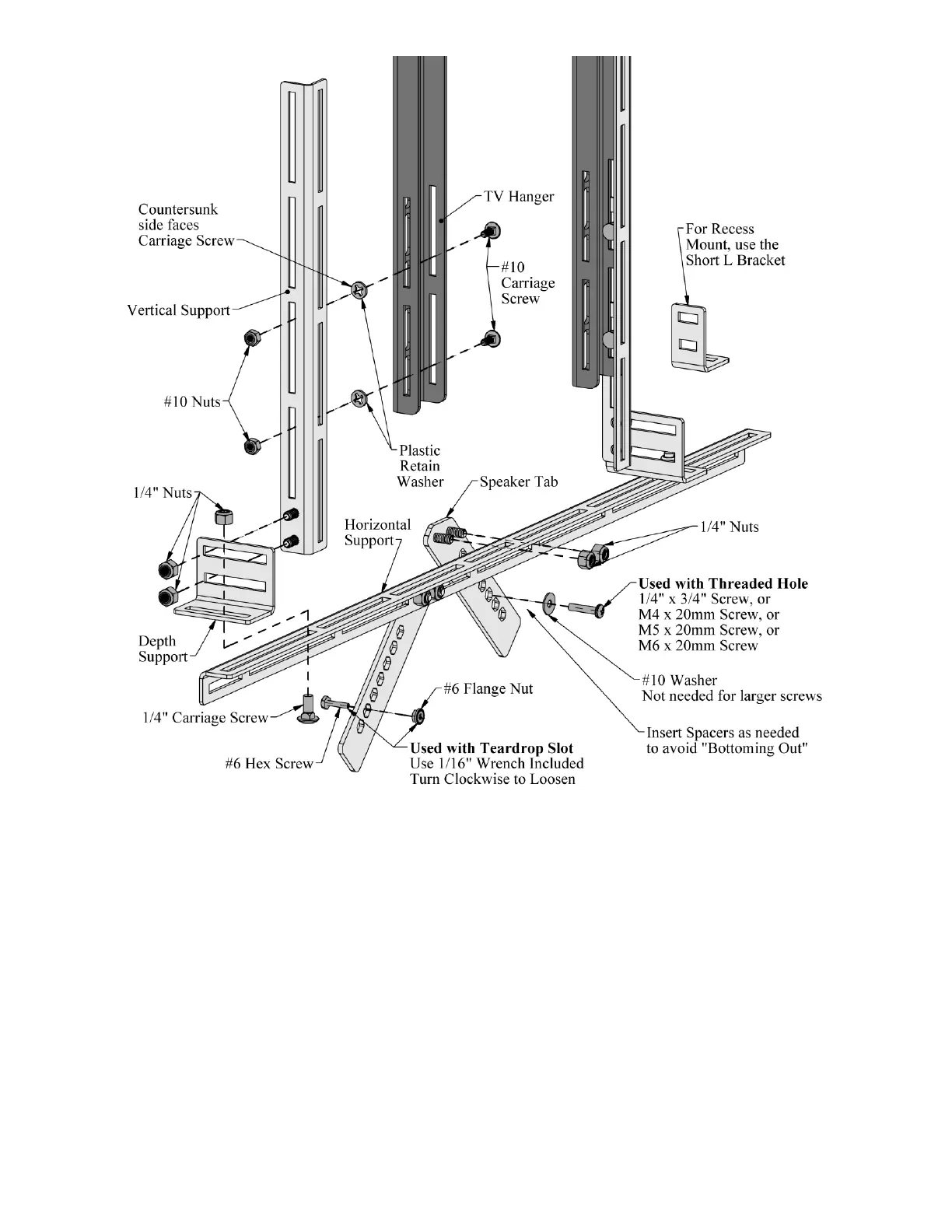

Figure 1 Setup for a Speaker Below the TV
Assembly
1. The Speaker Bracket has a lot of adjustment to account for most TV-speaker combinations; it will take careful planning to find
the best setup for you.
2. The Depth Support comes attached to the Horizontal Support for the most common TV hole spacing of 400mm. It may have to be
moved for different hole spacing
3. We recommend assembling the Vertical Supports on the TV Hanger, and putting everything else on the speaker on the ground.
4. Assembly and Adjusting would be much easier with 2 people.
5. To be able to lift the TV mount by grabbing the speaker. The top of the speaker needs to be butted against the bottom of the TV.
Especially when attaching to a TearDrop Slot.
