I. Installing the TEMPERATURE SENSOR and Optional SHELF

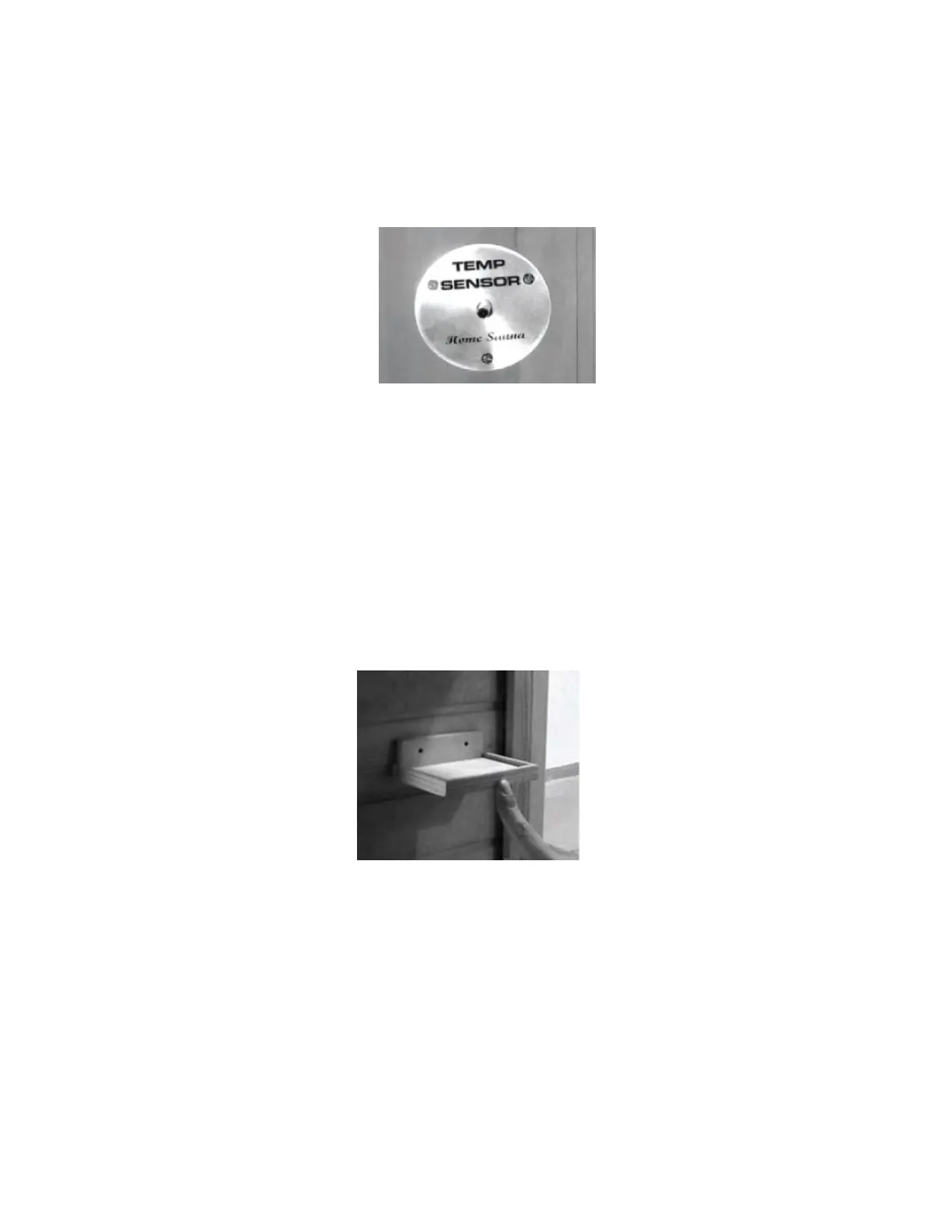

1. Enter the sauna and remove the protective covering from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so
that it is vertical and pointing downward. (see Figure 17)
Figure 17
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in
case the TEMPERATURE SENSOR is damaged during transit. The manufacturer
decides this according to sauna models and packaging.
2. If your sauna comes with the optional MP3 shelf, use the two screws
provided to mount the self on either the side panels or front panel. This
shelf is not offered on all models (see figure 18)
Figure 18
J. Putting on the ROOF COVER
1. Place the ROOF COVER over the top of the sauna. Be cautious when
pulling the power cord through the hole in the roof cover. Gently place the
ROOF COVER onto the ROOF PANEL. When the edges are aligned,
screw the ROOF COVER to the roof panel. (see Figure 19)
