H. Connecting the plugs on the ROOF PANEL (POWER SUPPLY 1)
1. Connect the plugs according to their respective labels. (see Figure 15)
2. You will need to connect the right and left speaker connectors, the MP3
connector, and the CTRL (Panel Control) harness wire connector. (see
Figure 16)

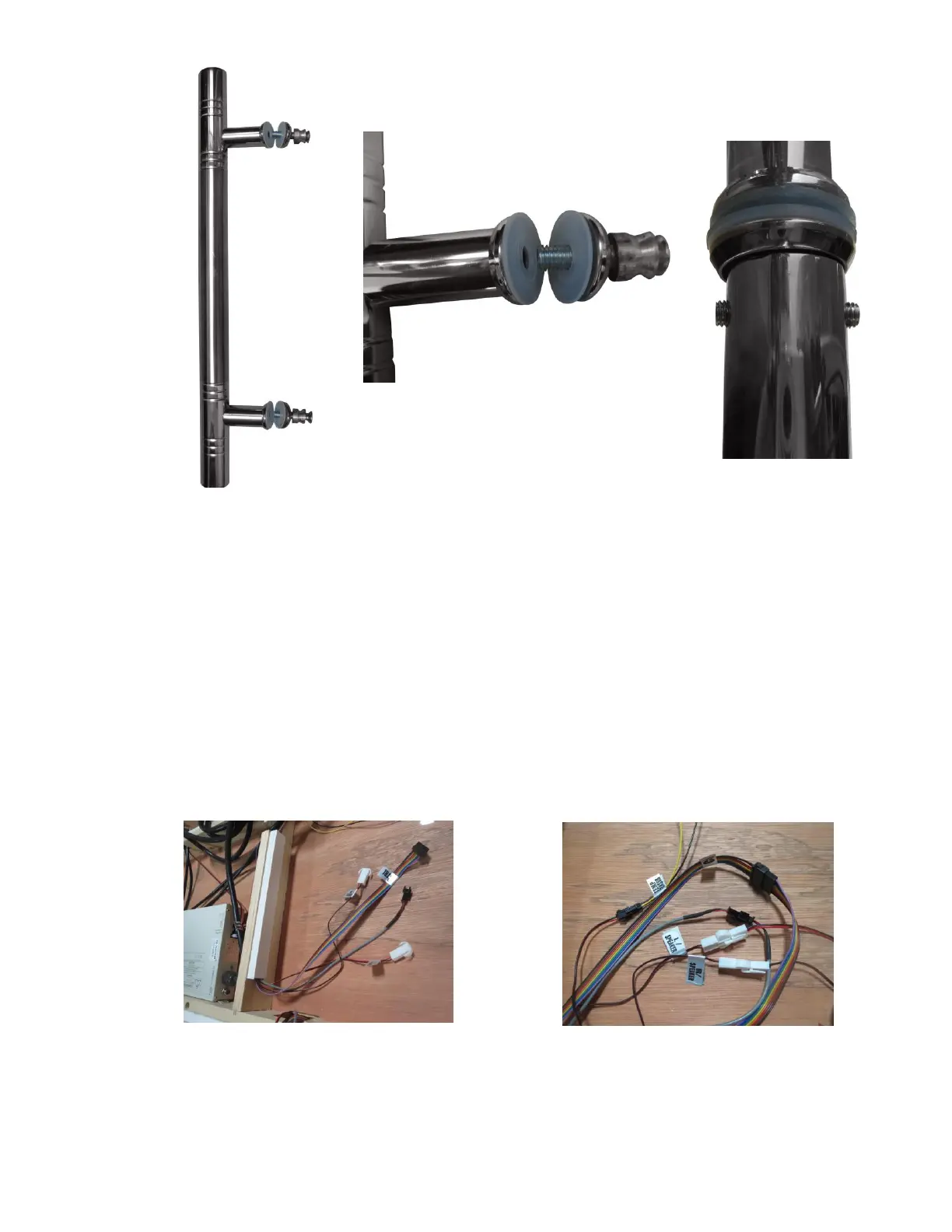

Before Connecting After Connecting
Figure 15 Figure 16
To Next Page
