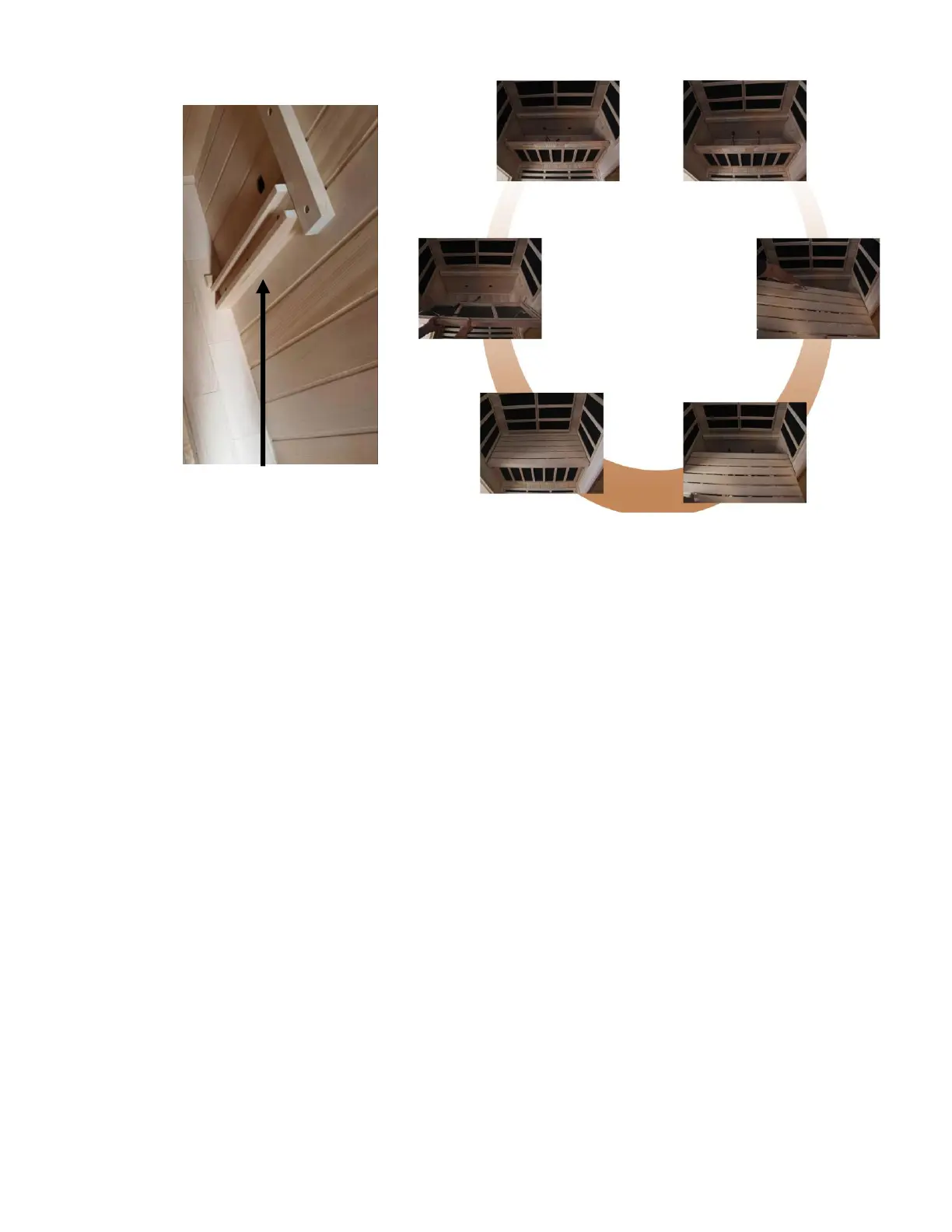

BENCH HEAT EMITTER PANEL
Guides On Side Walls
Figure 11 (BENCH & BENCH HEAT EMITTER PANEL
DO VARY IN INSTALLATION & DESIGN)
PLEASE NOTE: If your sauna has the optional LED Accent Lighting above the
REAR WALL HEAT EMITTER PANELS and below the BENCH, you will need to
connect the connector from the black/white wires coming from the BENCH
(located underneath the bench) to the black/white wire connector at the REAR
WALL PANEL.
F. Installing the FRONT GLASS DOOR HANDLE
1. Now that the FRONT WALL PANEL has already been installed, the inner
and outer door handles need to be mounted to the FRONT GLASS
DOOR. According to Figure 12 - Figure 14, the FRONT GLASS DOOR
must sit between the (2) white washers. The screws are inserted from the
inside of the FRONT GLASS DOOR and screwed into the outer handle.
BE SURE NOT TO OVER TIGHTEN THE SCREWS OR YOU WILL
SHATTER THE FRONT GLASS DOOR. Next, the inner door handle
needs to be inserted over the screws. Used the provided Hex Wrench to
tighten the (4) hex screws. (see Figure 12)
