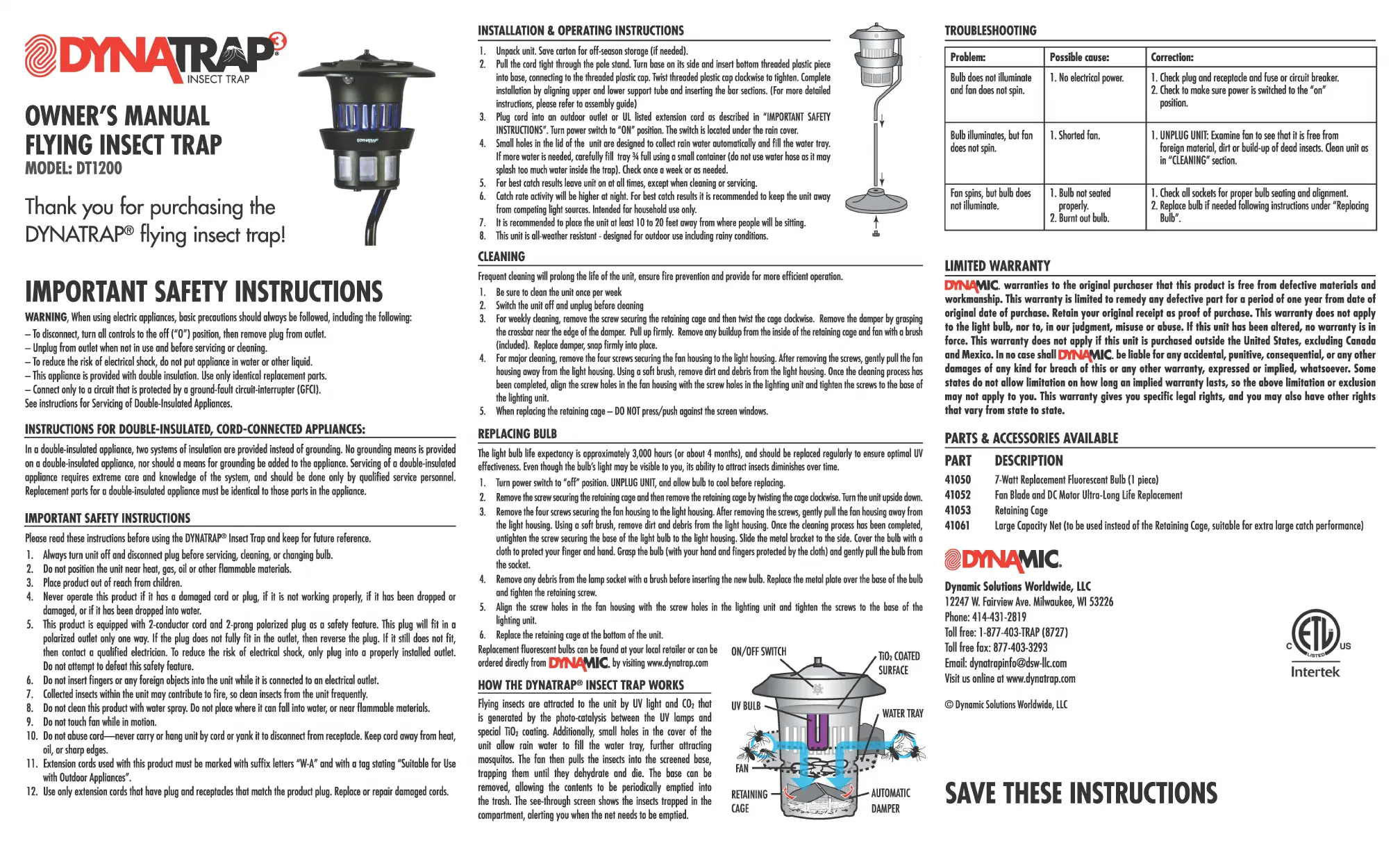

Dynamic Dynatrap 3 User Manual

OWNER'S MANUAL
FLYING INSECT TRAP
MODEL: DTl 200
Thank you for purchasing the
DYNATRAP® flying insect trap!
IMPORTANT SAFETY INSTRUCTIONS
WARNING, When using electric appliances, basic precautions should always be followed, including the following :
- To disconnect, turn all controls lo the off ("O") position, then remove plug from outlet.
- Unplug from outlet when not in use and before servicing or cleaning.
- To reduce the risk of electrical shock, do not put appliance in water or other liquid.
- This appliance is provided with double insulation . Use only identical replacement parts.
- Connect only to a circuit that is prolected by a ground-fault circuil-interrupter (GFCI).
See instructions for Servicing of Double-Insulated Appliances.
INSTRUCTIONS FOR DOUBLE-INSULATED, CORD-CONNECTED APPLIANCES:
In a double-insulated appliance, two systems of insulation ore provided instead of grounding. No grounding means is provided
on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing of a double-insulated
appliance requires extreme core and knowledge of the system, and should be done only by qualified service personnel.
Replacement ports for a double-insulated appliance must be identical to !hose ports in the appliance.
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions before using the DYNATRAP® Insect Trap and keep for future reference.
l. Always turn unit off and disconnect plug before servicing, cleaning, or changing bulb .
2. Do no! position the unit near heat, gas, oil or other flammable materials.
3. Place product oul of reach from children.
4. Never operate !his product if it hos a damaged cord or plug, ii it is not working properly, ii it has been dropped or
damaged, or if ii hos been dropped into water.
5. This product is equipped with 2-conductor cord and 2-prong polarized plug as a safely feature. This plug will fit in a
polarized outlet only one way. If !he plug does not fully fit in the outlet, then reverse the plug. If it s1ill does no! lit,
then contact a qualified electrician . To reduce the risk of electrical shock, only plug into a properly installed outlet.
Do no! attempt to defeat this safely fealure.
6. Do not insert fingers or any foreign objects into the unit while ii is connected to an electrical outlet.
7. Collected insects within the unit may contribute to fire, so clean insects from the unit frequent~.
8. Do no! clean this product with water spray. Do no! place where it con foll into water, or near flammable materials.
9. Do not touch fan while in motion.
l 0. Do not abuse cord--never carry or hang unit by cord or yank it ta disconnect from receptacle. Keep cord away from heat,
oil, or sharp edges.
11. Extension cords used with this product must be marked with suffix letters "W-A" and with a tag slating "Suitable for Use
with Outdoor Appliances".
12. Use only extension cords that have plug and receptacles that match the product plug. Replace or repair damaged cords.
INSTALLATION & OPERATING INSTRUCTIONS
1. Unpack unit. Save carton for off-season slorage (if needed) .
2. Pull the cord tight through the pole stand. Turn base on its side and insert bottom threaded plastic piece
into hose, connecting to the lhreoded ploslic cop . Twist threaded ploslic cop clockwise to tighten . Complete
installation by aligning upper ond lower support tube and inserting the bar sections . (For more detailed
instructions, please refer to assembly guide)
3. Plug cord info an outdoor outlet or UL lis!ed exlension cord as described in "IMPORTANT SAFETY
INSTRUCTIONS". Turn power switch to "ON" position. The switch is located under the rain cover.
4. Small holes in the lid of the unit are designed lo collect rain waler outomaticol~ and fill the waler troy .
If more water is needed, carefully fill troy¾ full using o small container (do not use water hose os it may
splash too much water inside the trap) . Check once o week or os needed.
5. For bes! catch results leave unit on at all times, except when cleaning or servicing .
6. Catch rote activity will be higher of night. For best catch results it is recommended to keep the unit owoy
from competing light sources . Intended for household use only .
7. It is recommended to place the unit of leas! 10 to 20 feet owoy from where people will be sitting.
8. This unit is all-weather resistant - designed for outdoor use including rainy conditions .
CLEANING
Frequent cleaning will prolong the life of the unit, ensure lire prevention and provide for more efficient operation.
1. Be sure to clean the unit once per week
2. Switch the unit off and unplug before cleaning
3. For week~ cleaning, remove the screw securing the retaining cage and then !wist the cage clockwise . Remove the damper by grasping
the crossbar near the edge of the damper . Pull up firm~ . Remove any buildup from the inside of the retaining cage and Ion with o brush
(included). Replace damper, snap firmly into place .
4. For major cleaning, remove the lour screws securing the Ion housing to the light housing. After removing the screws, gently pull the Ion
housing owoy from the light housing. Using o soft brush, remove dirt and debris from the light housing . Once the cleaning process hos
been completed, align !he screw holes in the Ion housing with the screw holes in the lighting unit and tighten the screws to the hose of
the lighting unit .
5. When replacing the retaining cage - DO NOT press/push against the screen windows.
REPLACING BULB
The light bulb life expectancy is approximately 3,000 hours (or about 4 months), and should be replaced regularly to ensure optimal UV
effectiveness. Even though the bulb's light may be visible to you, its ability to attract insects diminishes over time .
1. Turn power switch to "off" position . UNPLUG UNIT, and allow bulb to cool before replacing .
2. Remove the screw securing the retaining cage and then remove the retaining cage by !wisting the cage clockwise . Turn !he unit upside down .
3. Remove the four screws securing the Ion housing to the light housing . After removing the screws, gently pull the Ion housing owoy from
the light housing. Using o soft brush, remove dirt and debris from the light housing . Once the cleaning process hos been completed,
untighten the screw securing the hose of the light bulb to the light housing . Slide the metal bracket to the side . Cover the bulb with o
cloth to protect your linger and hand . Grasp the bulb (with your hand and lingers protected by the cloth) and gently pull the bulb from
the socket.
4. Remove any debris from the lamp socket with a brush before inserting the new bulb. Replace !he metal plate over the base of the bulb
and tighten the retaining screw.
5. Align the screw holes in the Ion housing with the screw holes in the lighting unit and tighten the screws to the base of the
lighting unit.
6. Replace the retaining cage at the bottom of the unit.
Replacement fluorescent bulbs con be found of your local retailer or con be ON/OFF SWITCH
ordered directly from ~ C. by visiting www.dynatrap.com
HOW THE DYNATRAP® INSECT TRAP WORKS
Flying insects ore attracted to the unit by UV light and CO2 that
is generated by the photo-catalysis between the UV lamps and
special Ti02 coating . Additionally, small holes in the cover of the
unit allow rain water to fill the water troy, further attracting
mosquilos . The fan then pulls the insects into the screened base,
trapping !hem until they dehydrate and die. The base can be
removed, allowing the contents to be periodically emptied into
the trash. The see-lhrough screen shows the insects !rapped in the
comportmenl, alerting you when the net needs to be emplied .
TROUBLESHOOTING
Problem: Possible cause: Correction:
Bulb does no! illuminate 1. No electrical power. 1. Check plug and receptacle and fuse or circuit breaker.
and Ion does not spin. 2. Check to make sure power is switched to !he "on"
position .
Bulb illuminates, but fan 1. Shorted fan . 1. UNPLUG UNIT : Examine fan lo see that it is free from
does not spin. foreign material, dirt or build-up of dead insects. Clean unit as
in "CLEANING" section.
Fan spins, but bulb does 1. Bulb not seated 1. Check all sockets for proper bulb seating and alignment.
not illuminate.
properly. 2. Replace bulb if needed following instructions under "Replacing
2. Burnt out bulb . Bulb".
LIMITED WARRANTY
DWN,ft\ lC. warranties to the original purchaser that this product is free from defective materials and
workmanship. This warranty is limited to remedy any defective part for a period of one year from date of
original date of purchase. Retain your original receipt as proof of purchase. This warranty does not apply
to the light bulb, nor to, in our judgment, misuse or abuse. If this unit has been altered, no warranty is in
force. This warranty does not apply if this unit is purchased outside the United States, excluding Canada
and Mexico. In no case shall ~ - be liable for any accidental, punitive, consequential, or any other
damages of any kind for breach of this or any other warranty, expressed or implied, whatsoever. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
that vary from state to state.
PARTS & ACCESSORIES AVAILABLE
PART DESCRIPTION
41050 7-Wall Replacement Fluorescent Bulb (1 piece)
41052 Fon Blade and DC Motor Ultra-Long Life Replacement
41053 Retaining Cage
41061 Lorge Capacity Net (lo be used instead of the Retaining Cage, suitable for extra large catch performance)
Dynamic Solutions Worldwide, LLC
12247 W. Fairview Ave. Milwaukee, WI 53226
Phone: 414-431-2819
Toll free: 1-877-403 - TRAP (8727)
Toll free fox: 877-403-3293
Email: dynotropinfo@dsw-llc.com
Visit us online al www.dynolrop.com
© Dynamic Solutions Worldwide, LL(
SAVE THESE INSTRUCTIONS
