HOW TO REPLACE THE TRACTION CABLE
Traction cable should be non-conductive. Minimum cable strength 700 lbs. (320kgs/ 3200N).
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Fig 8

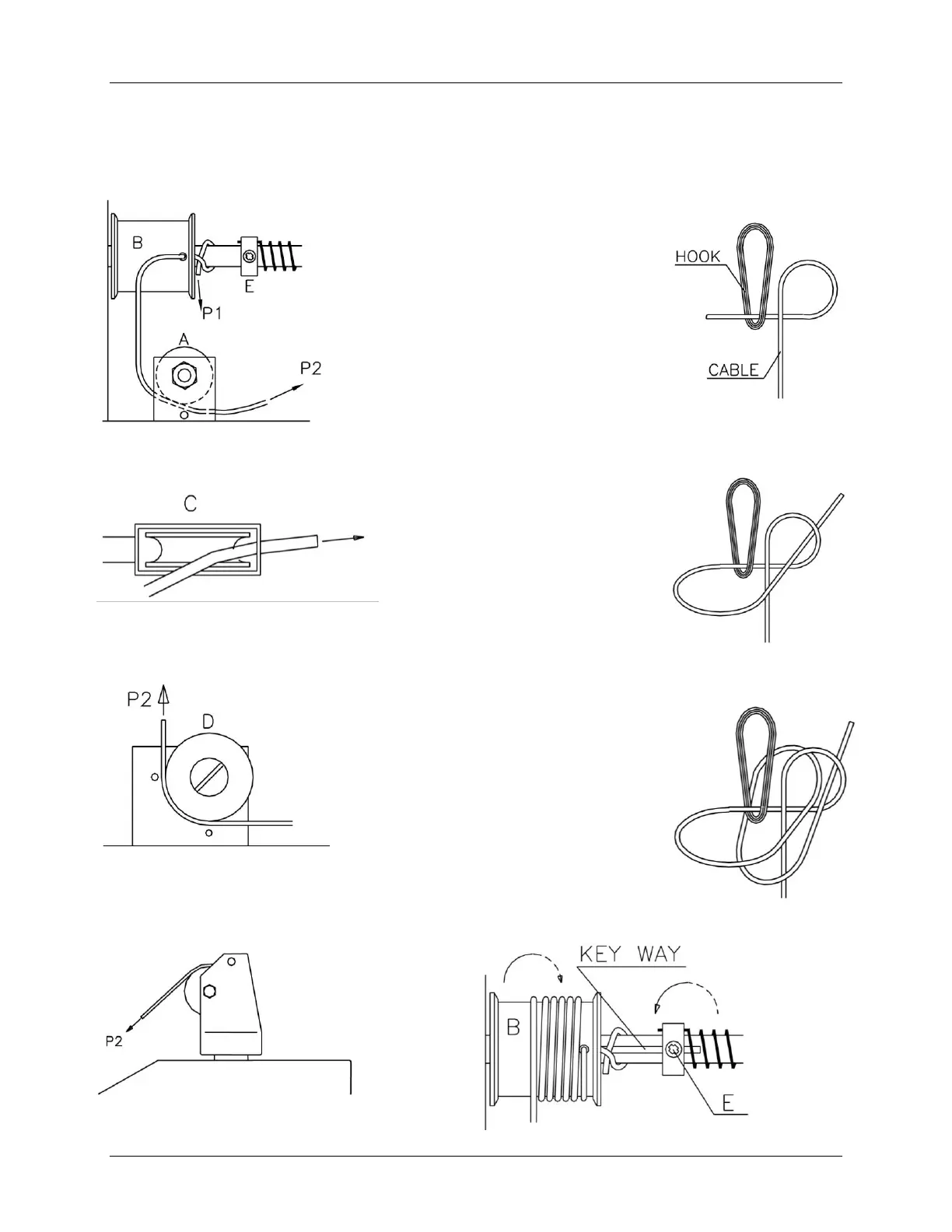

1. Loosen the screw E. (Fig 1)
2. Pass the cable around pulley A.
(Fig 1)
3. Thread the cable through the hole
of pulley B, go around the main
shaft and under cable; pull cable
tight to secure the end of cable
against the main shaft. (Fig 1)
4. Pass side P2 of cable to pulley C.
(Fig 2)
5. Then pass pulley D. (Fig 3)
6. Go around head pulley. (Fig 4)
7. Tie the hook with cable as shown
in Fig 5 – 7.
8. En-circle the cable on pulley B.
9. Turn pulley B until the keyway
faces you. (Fig 8)
10. Turning the rotary spring about 2
cycles by reversing cable
direction then lock screw E.
