12 Esotec / Esotar
2
Series

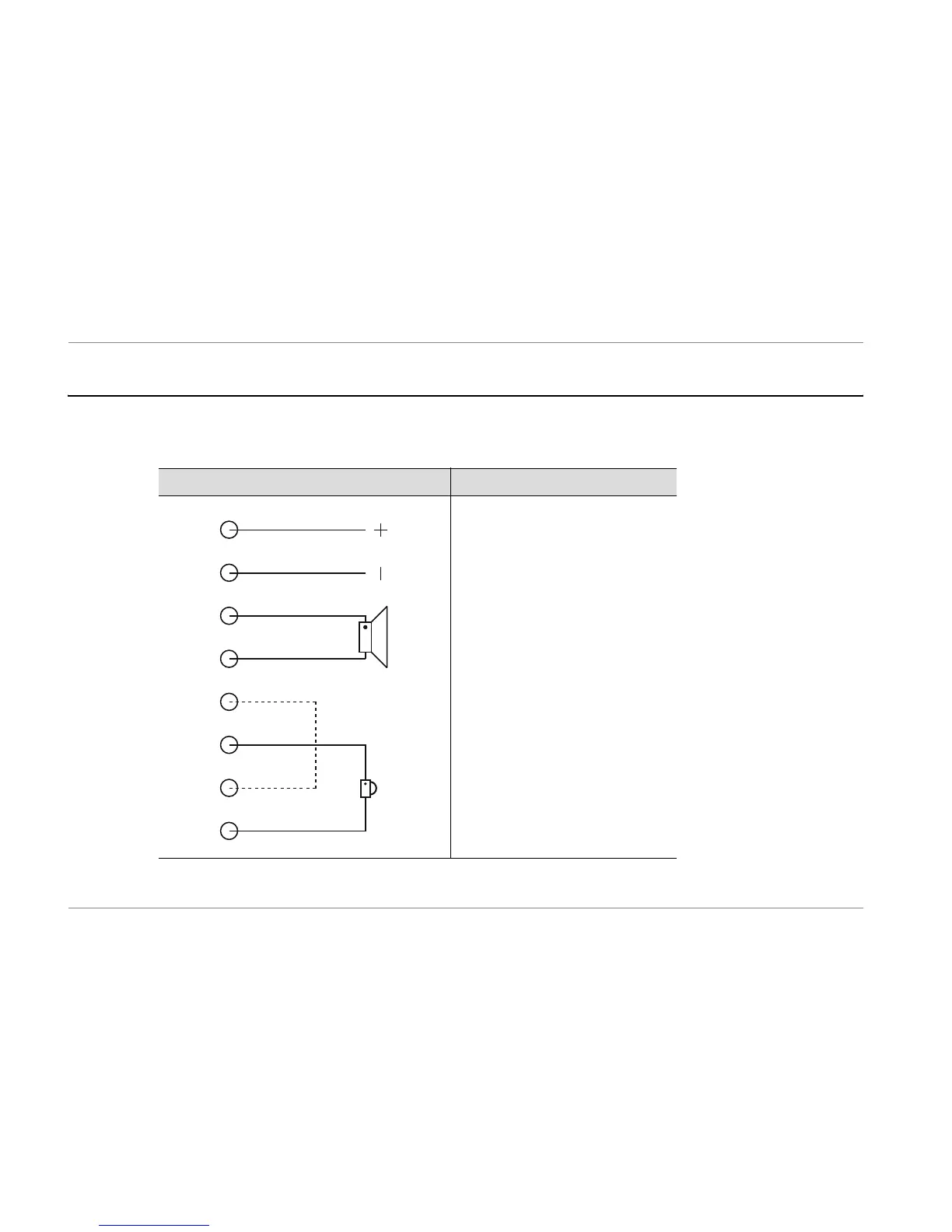

Connecting the Esotec crossovers
2-way crossover X 252
Terminal label Connections
1 To power amplifier: + terminal
2 To power amplifier: – terminal
3 To woofer: + terminal
4 To woofer: – terminal
5 To tweeter: + terminal, +2dB
6 To tweeter: + terminal, ±0dB
7 To tweeter: + terminal, -2dB
8 To tweeter: – terminal
17654328
Amplifier TweeterWoofer
-2dB+2dB 0
