Dynaudio Esotec Series - 3-Way Crossover X 362 Wiring

Connecting the Esotec crossovers
14 Esotec / Esotar
2
Series

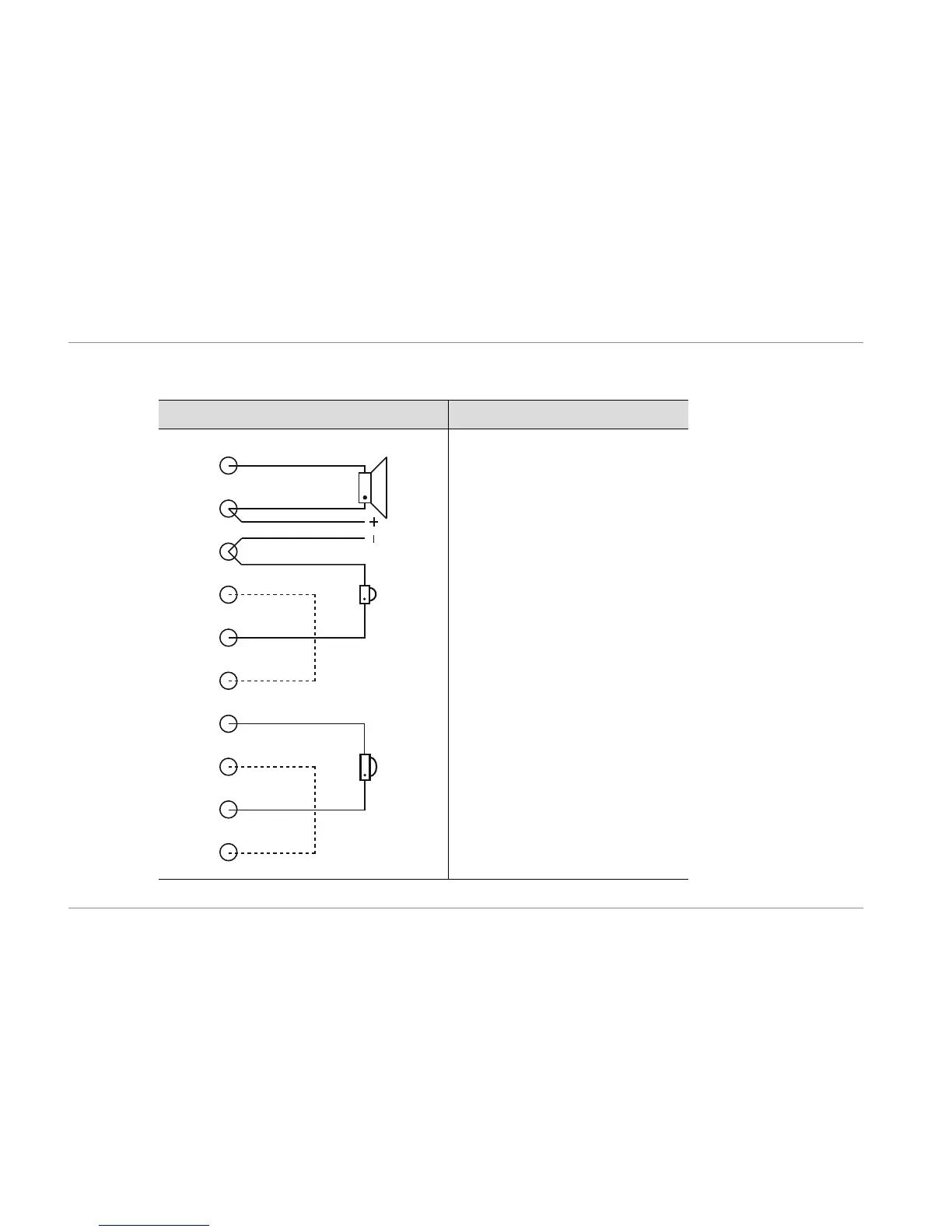

3-way crossover X 362
Terminal label Connections
1 To woofer: – terminal
2 To woofer: + terminal
To power amplifier: + terminal
3 To power amplifier: – terminal
To tweeter: – terminal
4 To tweeter: + terminal, +2dB
5 To tweeter: + terminal, ±0dB
6 To tweeter: + terminal, -2dB
7 To midrange: – terminal
8 To midrange: + terminal, +2dB
9 To midrange: + terminal, ±0dB
10 To midrange: + terminal, -2dB
17654328910
Amp Tweeter MidrangeWoofer
-2dB+2dB 0 -2dB+2dB 0
