Dynavin DVN-E39A - Description of Ports; Description of Function, Color and Location of Leading Line

Description of Ports

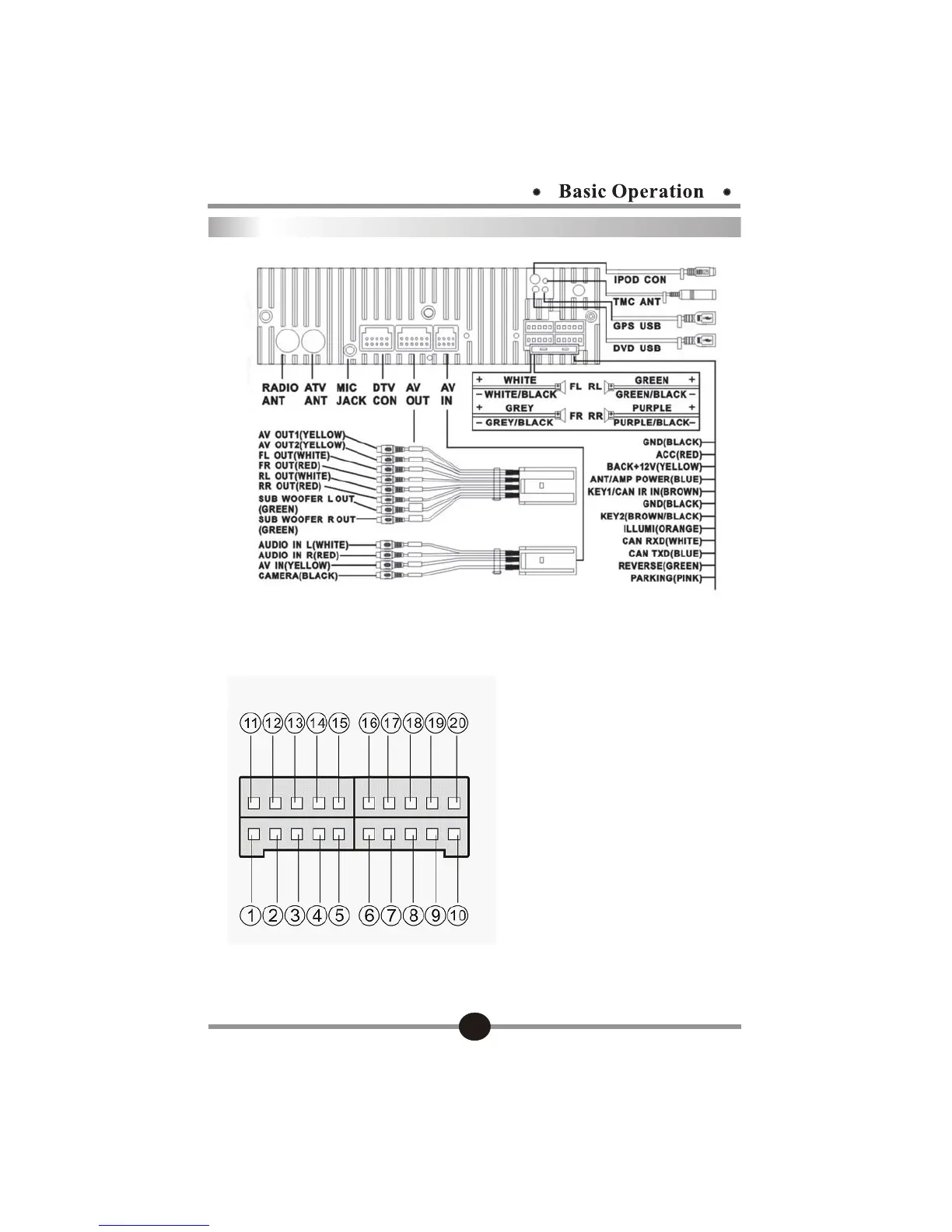

Description of function, color and location of leading line :
6
1ǃYellow — B+(Battery positive)
2ǃBlue — Auto-ANTI(Amplifier control)
3ǃBrown — SWC Key 2
4ǃBlack — SWC GND
5ǃGreen — SWC Key 1
6ǃOrange — Illumination
7ǃWhite — UART RXD
8ǃBlue — UART TXD
9ǃPink — Reverse
10ǃPurple —Brake
11ǃBlack — GND(Ground)
12ǃRed — ACC
13ǃGreen/Black — RL-(rear left speaker negative)
14ǃGreen — RL+(rear left speaker positive)
15ǃPurple/Black — RR-(rear right speaker negati
ve)
16ǃPurple
— RR+(rear right speaker positive)
17ǃWhite — FL+(front left speaker positive)
18ǃWhite/Black — RL-(front left speaker negative)
19ǃGrey — FR+(front right speaker positive)
20ǃGrey/Black — FR-(front right speaker negative)
