Dynorbital X51 - Page 3

Models
X51, X51H, X51V, X52, X52H, X52V - 5" Diameter
X61, X61H, X61V, X62, X21H, X62V - 6" Diameter
Dynorbital
®
Extreme

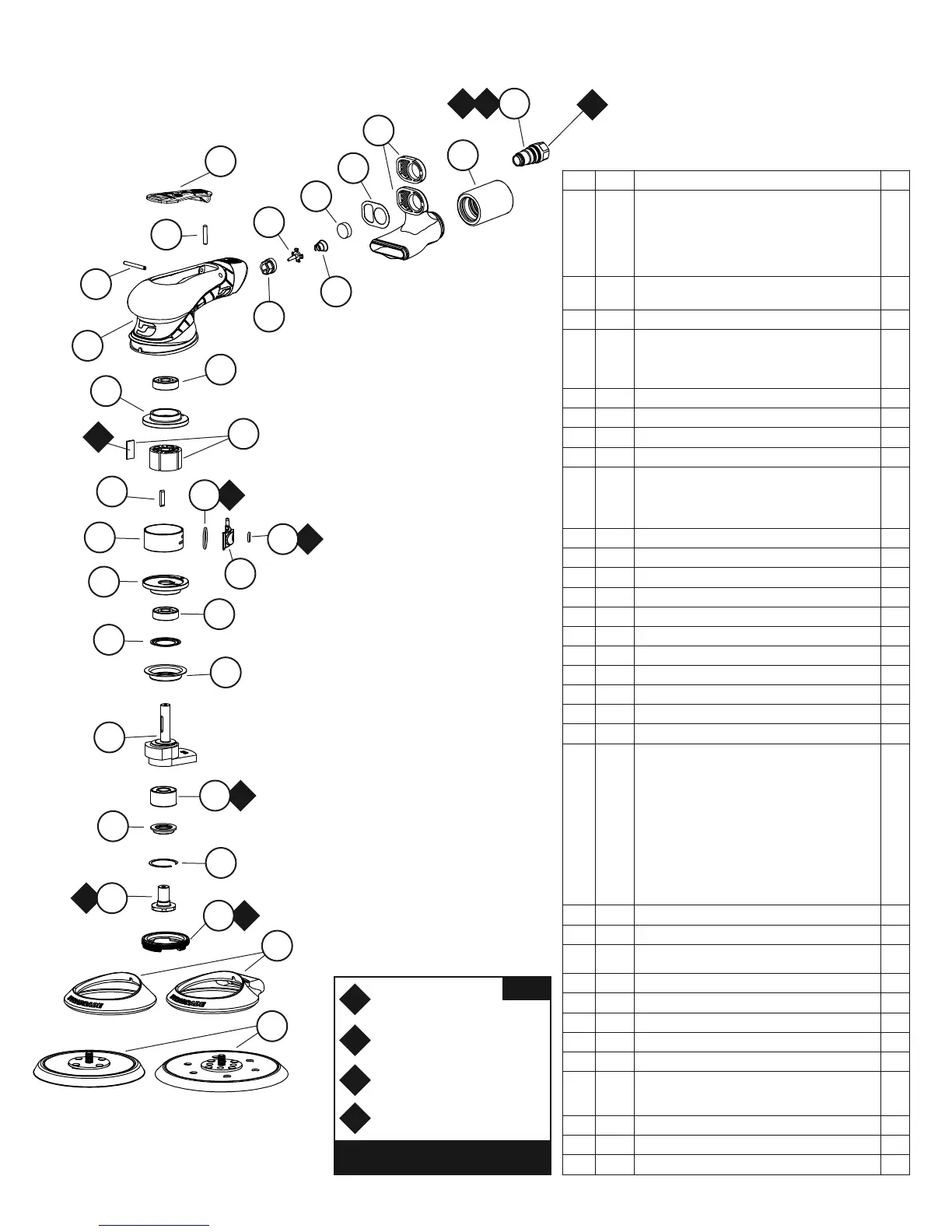

Complete Assembly
ITEM P/N DESCRIPTION QTY.
1
56106T
54325T
54334
56107T
54327T
54339
PAD – X51, X52
PAD – X51H, X52H
PAD – X51V, X52V
PAD – X61, X62
PAD – X61H, X62H
PAD – X61V, X62V
1
2
59340
59341
SHROUD – X51, X51H, X52, X52H, X61, X61H, X62, X62H
SHROUD – X51V, X52V, X61V, X62V
1
3 59058 LOCK RING 1
4
59350
59351
59360
59361
MOTOR ASSEMBLY – X51, X51H, X51V
MOTOR ASSEMBLY – X52, X52H, X52V
MOTOR ASSEMBLY – X61, X61H, X61V
MOTOR ASSEMBLY – X62, X62H, X62V
1
4.1 57069 SHAFT 1
4.2 95630 SNAP RING 1
4.3 59084 SEAL 1
4.4 56052 BEARING 1
4.5
59061
59066
59062
59067
SHAFT BALANCER – X51, X51H, X51V
SHAFT BALANCER – X52, X52H, X52V
SHAFT BALANCER – X61, X61H, X61V
SHAFT BALANCER – X62, X62H, X62V
1
4.6 59057 FRONT BEARING SEAL 1
4.7 59083 FELT WASHER 1
4.8 58368 BEARING 2
4.9 59333 FRONT BEARING PLATE 1
4.10 59134 CYLINDER SLEEVE 1
4.11 95529 O-RING 1
4.12 59133 CYLINDER SLEEVE ADAPTER 1
4.13 01024 O-RING 1
4.14 56047 KEY 1
4.15 59380 ROTOR / VANE ASSEMBLY 1
4.16 59332 REAR BEARING PLATE 1
5
59355
59371
59365
59357
59373
59367
59356
59372
59366
59358
59374
59368
HOUSING – X51
HOUSING – X51H
HOUSING – X51V
HOUSING – X52
HOUSING – X52H
HOUSING – X52V
HOUSING – X61
HOUSING – X61H
HOUSING – X61V
HOUSING – X62
HOUSING – X62H
HOUSING – X62V
1
6 95578 PIN 1
7 97045 PLUNGER PIN 1
8
59337
59338
THROTTLE LEVER – X51, X51H, X61, X61H, X51V, X61V
THROTTLE LEVER – X52, X52H, X62, X62H, X52V, X62V
1
9 45310 TIP VALVE SEAL 1
10 58365 TIP VALVE 1
11 01468 SPRING 1
12 56027 MUFFLER INSERT 5
13 59346 GASKET 1
14
59342
59343
EXHAUST COVER – X51, X51H, X52, X52H,
X61, X61H, X62, X62H
EXHAUST COVER – X51V, X61V, X52V, X62V
1
15 59339 VACUUM CUFF – X51V, X61V, X52V, X62V 1
16 59335 INLET BUSHING 1
— 50679 OPEN END WRENCH – 26mm 1
Adhesive: A
2
= Loctite #271
A
8
= Loctite #567
Oil: O
1
= Air Lube
O
A
T
T
x
KEY
Always follow adhesive manufacturers
cleaning and priming recommendations.
Torque: N•m x 8.85 = lb•in.
X = Torque Value (N•m)
T
23
3
O
1
A
8
1
2
4.2
4.3
4.5
4.6
4.7
4.8
4.8
4.9
4.10
4.12
4.15
4.16
4.14
5
6
7
8
9
10
11
12
13
14
15
16
O
1
O
1
O
1
4.11
4.13
A
2
A
2
4.4
4.1
T
23
3
