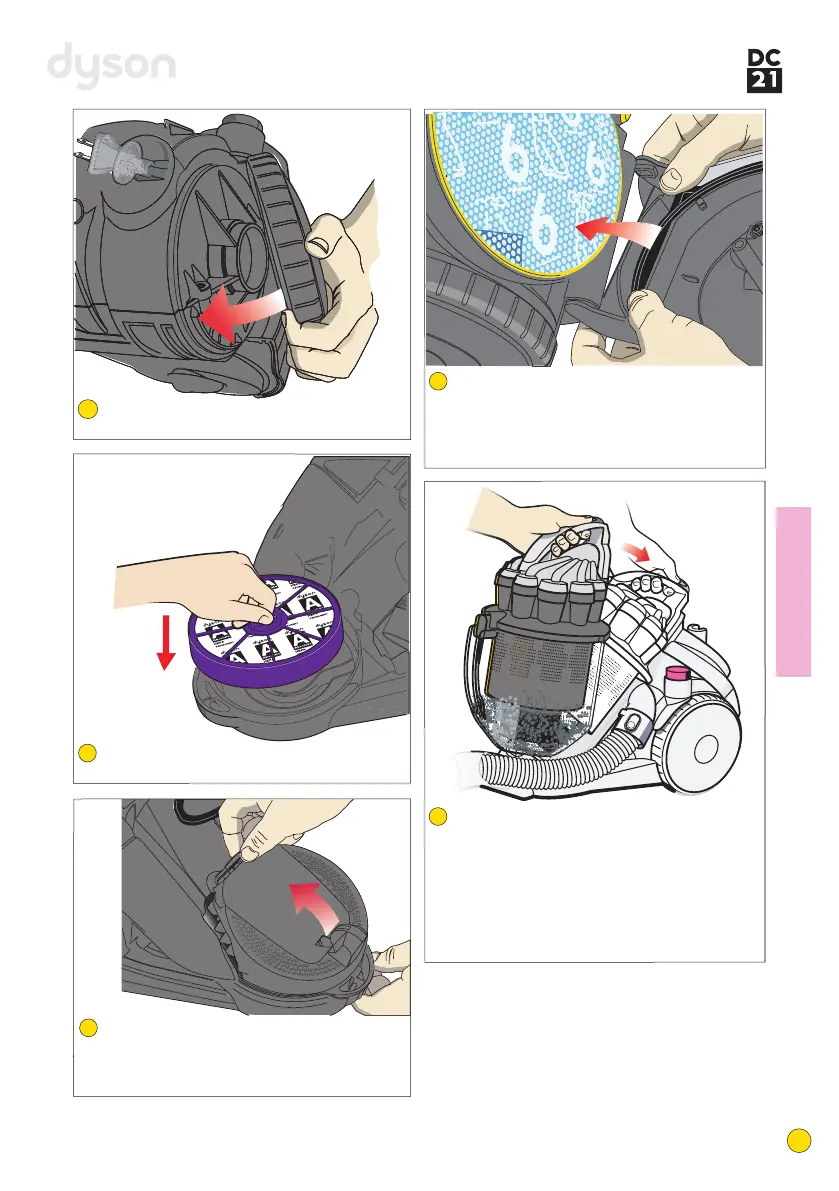

Carefully place the post-filter cover into the
2 locating points at the front of the machine
and then firmly clip the rear onto the LMC
assembly.
Refit the pre-filter assembly into the top of the
UMC. Clip the pre-filter cover into the hinge
points on the rear of the UMC. Clip the
pre-filter cover catch over the retainer on the
front of the UMC.
Refit the HEPA filter assembly into the front of
the product.
Clip the end of the hose assembly into the
cyclone inlet. Clip the hose retainer onto the
front of the product. Clip the cyclone and bin
assembly onto the machine. Wrap the hose
around the product and clip the wand into the
side of the cyclone assembly.
Locate the power floor tool into the stow on
the rear of the product.
Fitting notes
43
45
42
44
Firmly press the wheels onto the side of the
product.
41
14
