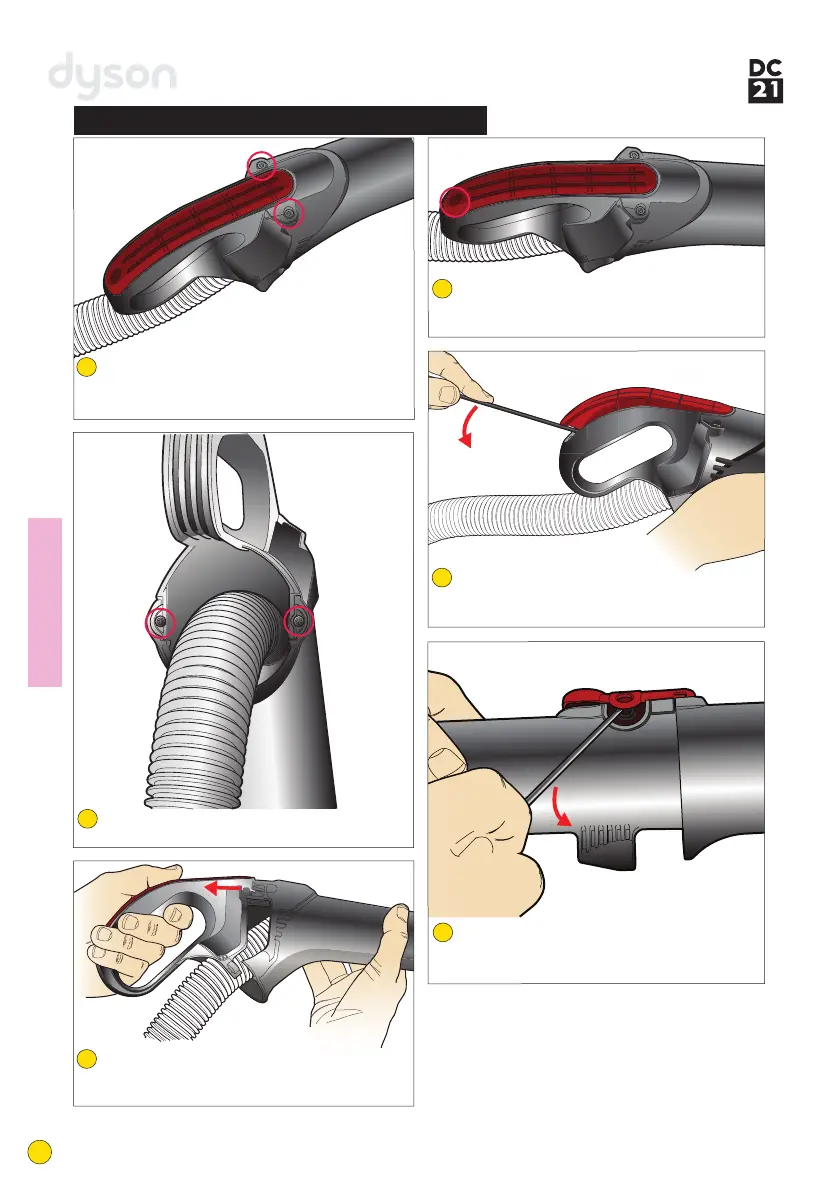

To remove the wand handle from the power
wand hose assembly, undo the 2 screws on
the top of the wand.
46
Undo the 2 Torx T-8 screws on the rear of the
wand handle.
47
Slide the wand handle out the rear of the
power wand hose assembly.
Fit in reverse.
48
The wand handle cover can be replaced by
removing the Torx T-8 screw in the rear of the
cover.
49
Carefully prise out from the rear using a thin,
flat bladed screwdriver.
Fit in reverse.
50
Fitting notes
To replace the front wand catch or spring,
prise the catch away from the retainers on the
wand using a thin, flat bladed screwdriver.
51
16
15
Sub-assemblies - power wand/hose assembly
