Fitting notes

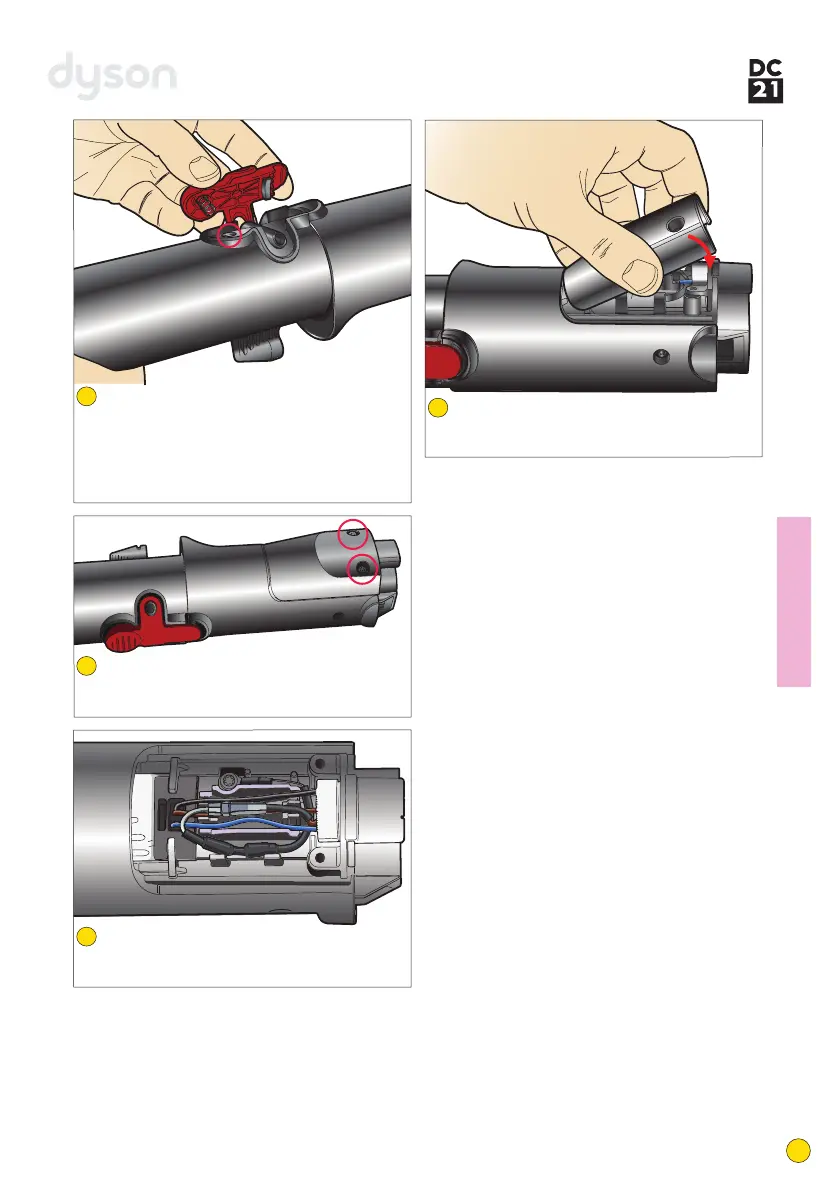

To refit, locate the spring onto the cruciform
on the underside of the catch, then lower
the catch onto the wand ensuring the spring
locates into the circular detail on the wand.
Firmly press the locating holes on the catch
over the retainers on the wand.
52
The wand cuff cover can be replaced if
necessary by undoing the 2 screws shown
and lifting off the cover.
53
Before fitting a new cover, ensure all wires
are located within the channels and retainers
provided.
54
To fit, locate the detail on the rear of the
cover under the lip on the wand. Lower the
cover onto the wand. Refit the 2 screws.
