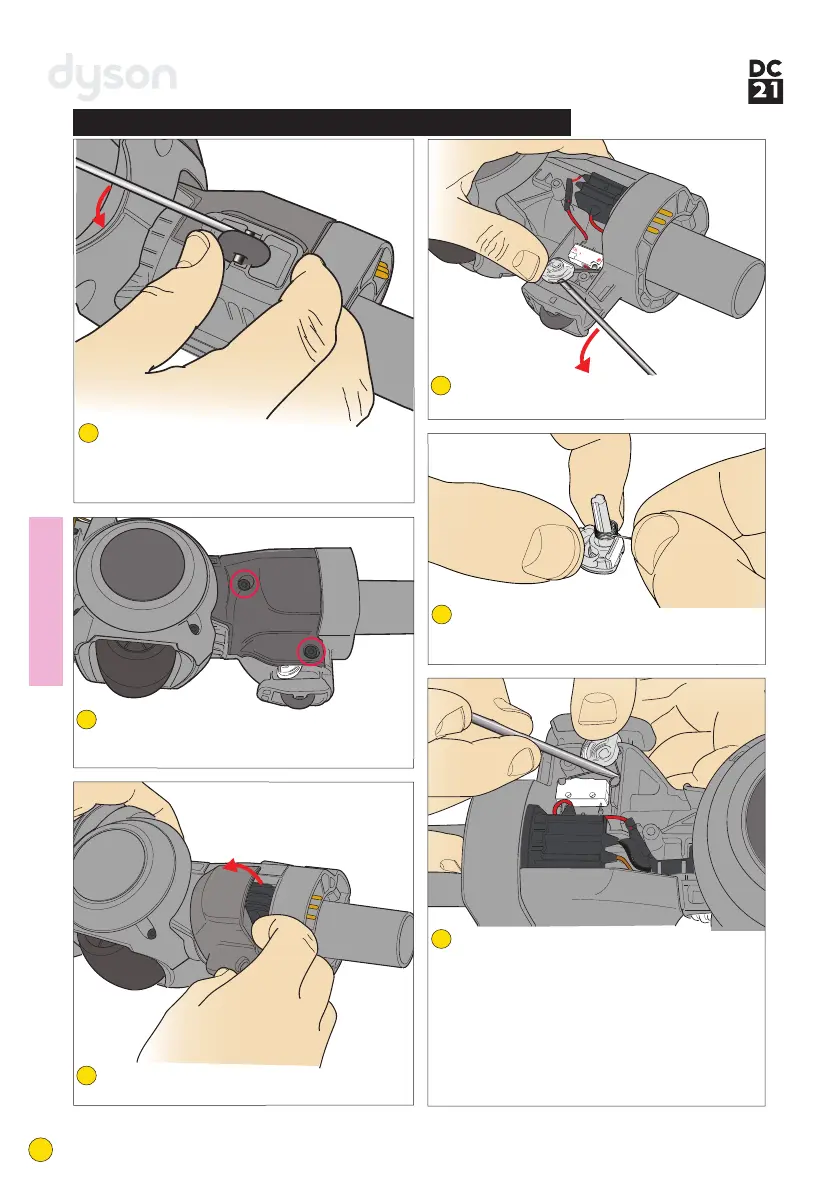

Locate the pillar on the cam into the hole in
the side of the neck. Locate the ring on the
end of the spring over the thin pillar in the
neck ensuring the tail of the spring remains
retained within the cam channel. Twist the
cam into position.
Test the actuation of the cam against the
microswitch.
Fit the stow neck cover and 2 short screws.
61
When fitting the spring, ensure the tail of
the spring locates into the channel in the
microswitch cam.
60
Carefully prise the microswitch cam and
spring out of the neck.
59
The stow wheel or axle can be replaced
by prising out of the stow using a thin, flat
bladed screwdriver.
To fit, push both parts firmly into the stow.
56
To replace the stow neck cover, stow
microswitch cam or spring remove the 2 short
screws in the cover.
57
Firmly pull from the rear of the cover off the
side of the neck.
58
Sub-assemblies - Power floor tool assembly - dismantle
