Fitting notes
2118
ON
OF
F

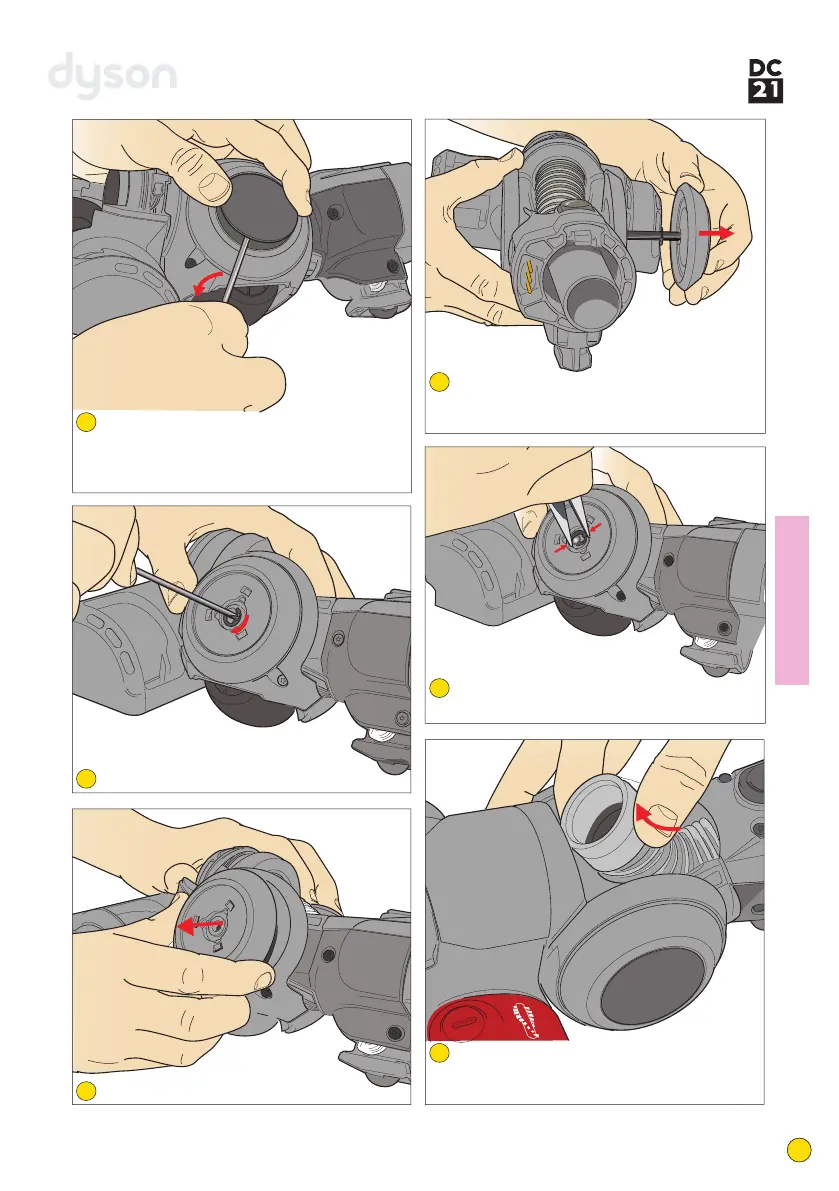

If either outer wheel hub, glamour cap or
the axle need replacing, prise the relevant
glamour cap off the wheel hub using a thin,
flat bladed screwdriver.
62
Carefully remove the e-clip and washer.
63
Slide the wheel hub off the axle.
64
The axle, other wheel hub and glamour cap
and remaining washers can then be removed
from the side of the floor tool if necessary.
65
Fit in reverse ensuring all washers are fitted
(2 on either side of each wheel).
66
The internal hose can be replaced by simply
lifting out the top of the floor tool.
Fit in reverse.
