Dyson DC21 - Page 22

service manual
Fitting notes
19
dyson
dyso
n

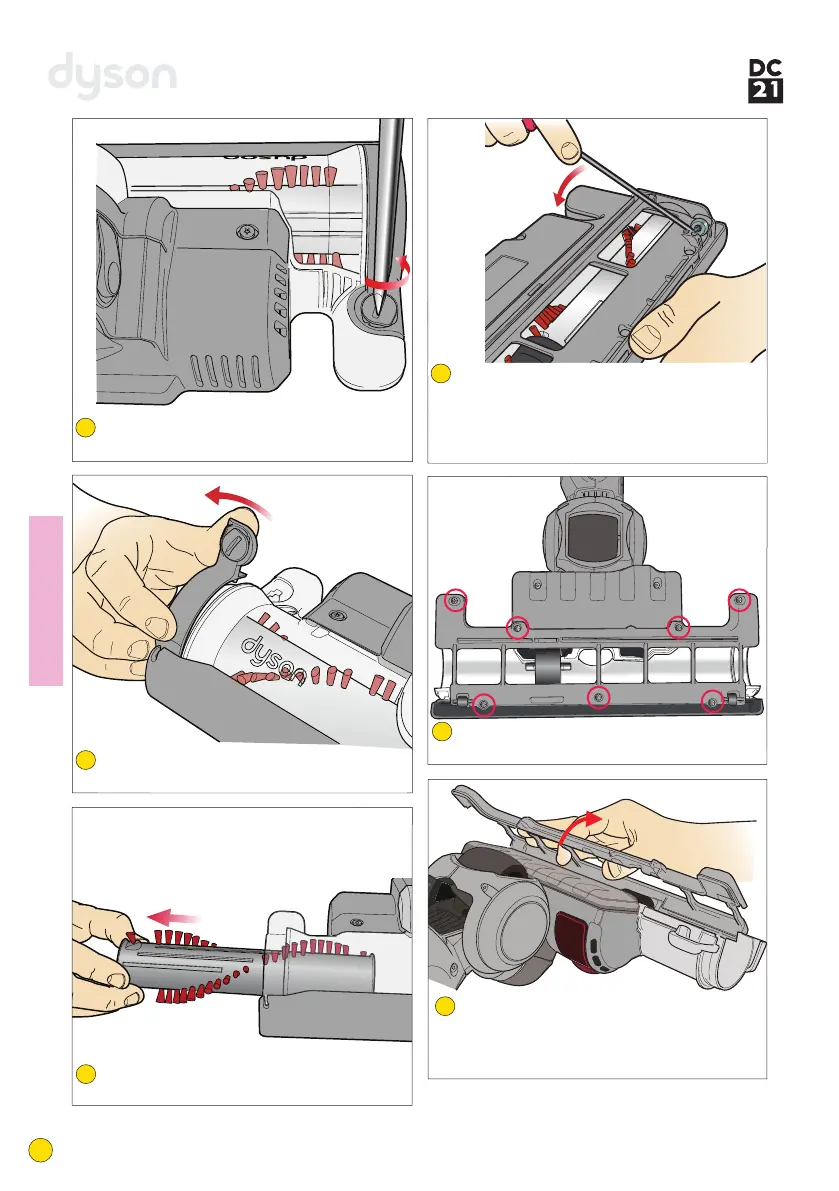

Turn the endcap fasteners counter-clockwise
using a large, flat bladed screwdriver or coin.
68
Twist the endcap assemblies off the sides of
the brush housing.
69
Slide each half of the brushbar assembly out
of the brush housing.
70
The soleplate wheels or axles can be prised
out from the soleplate assembly if necessary
using a thin, flat bladed screwdriver.
To fit, firmly press both parts into the
soleplate assembly.
71
Undo the 7 Philips screws in the soleplate
assembly.
72
Remove the soleplate assembly from the
brush housing.
If necessary any lengths of ropeseal in the
brush housing can be replaced.
73
