Adjusting nut
Adjusting nut
Tighten
Loosen

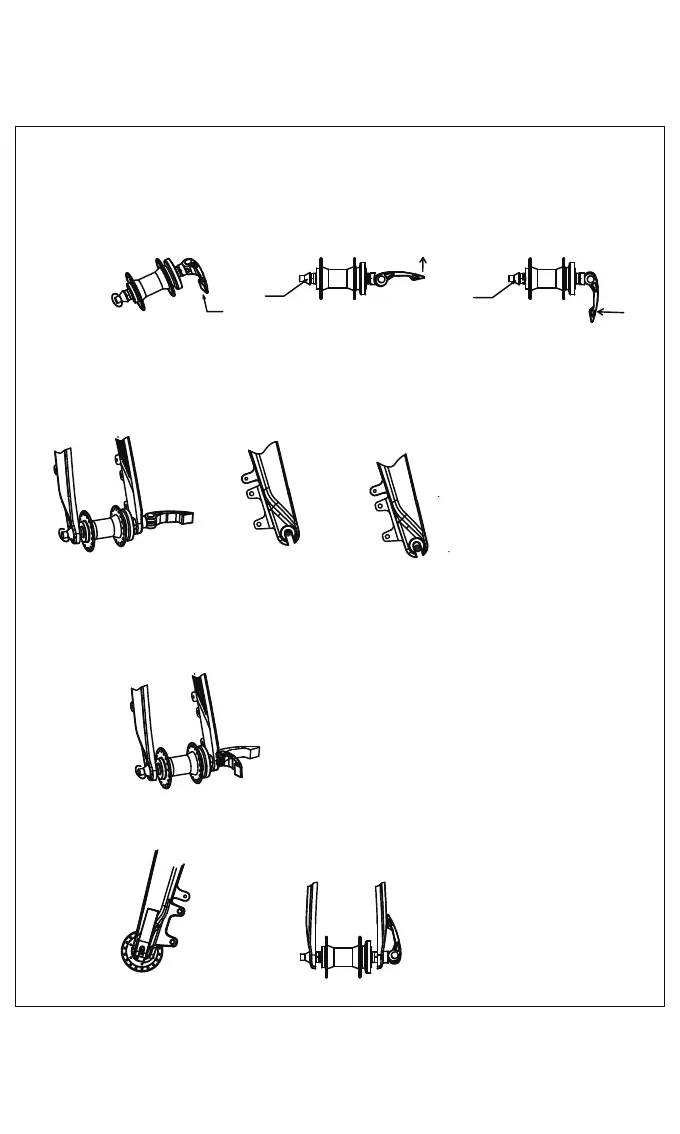

I . Quick-release mechanics
A quick-release adjusts the clamping force via the adjusting nut. Turn the nut clockwise to tighten,
and counter-clockwise to loosen.
。
When the adjusting nut is turned clockwise for the quick-release lever to be in the CLOSE position, the nut moves
inwards and clamps the wheel against the frame, thus holding the wheel firmly in the correct location.
Quick-release lever
OPEN
Installing Front Wheel
II . How to install
1. Mount the quick-release hub firmly
Set the quick-release lever in the OPEN position, and insert the wheel all the way into the
dropout slots of the front fork.tt
Correct
Wrong
2. Tighten the nut clockwise
Slowly turn the adjusting nut clockwise with your left hand, while opening and closing the quick-release
lever with your right hand. Stop tightening the nut when the lever is in parallel with the hub (shown below)
and resistance is felt from the lever.
3. Secure the quick-release lever
Hold the fork legs with your fingers, and use your palm to apply sufficient force onto the quick-release lever to
secure it. The CLOSE mark on the lever should face outwards. The lever should be ahead of the fork leg or in parallel
with it as shown below.
Turn 1/8 of a
circle each time
Adjusting nut
