Release Lever
(No.106)
III
II
I

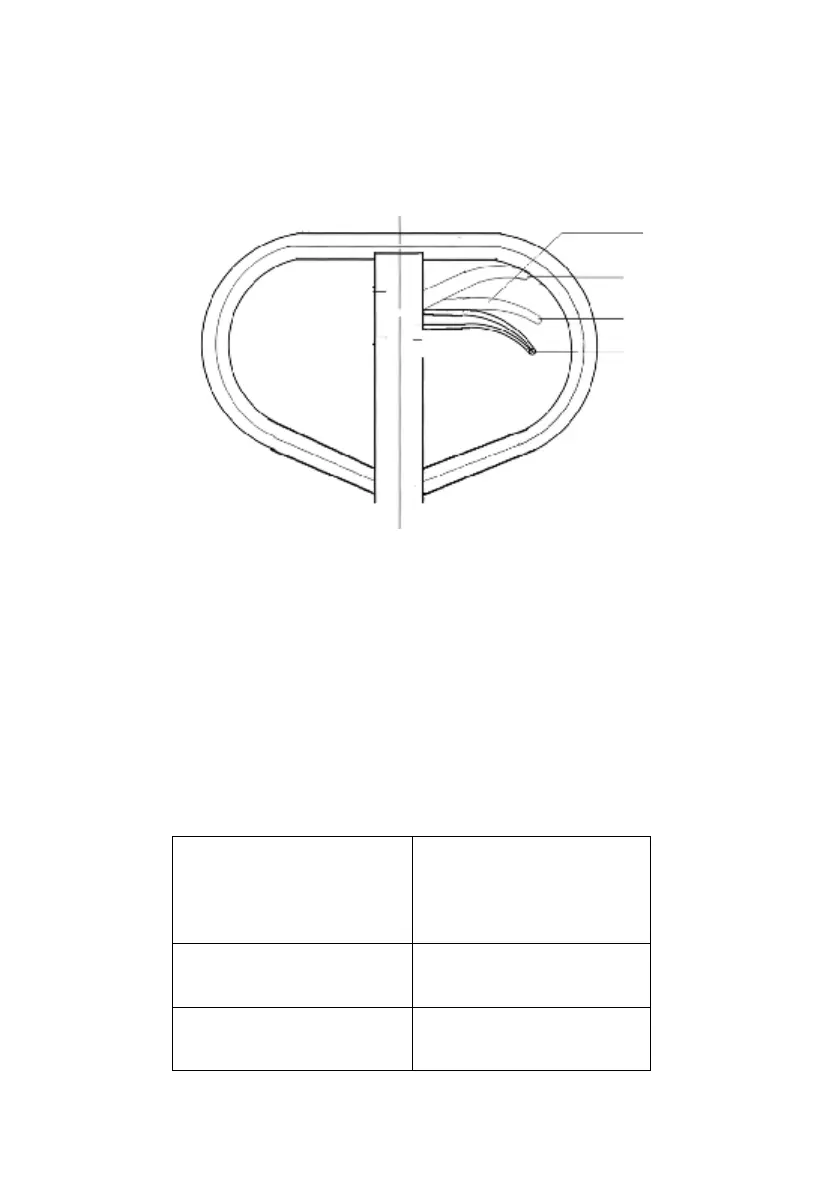

Picture 1
l Test different functions by putting the Release Lever
in 3 different positions respectively.
If it does not function properly, then adjusting Lock Nut (No.113)
by following process. See picture 2.
Problems
Turning direction of
Lock Nut
Fork not lifted up
-
(counter-clockwise)
Fork not lowering down
+
(clockwise)
